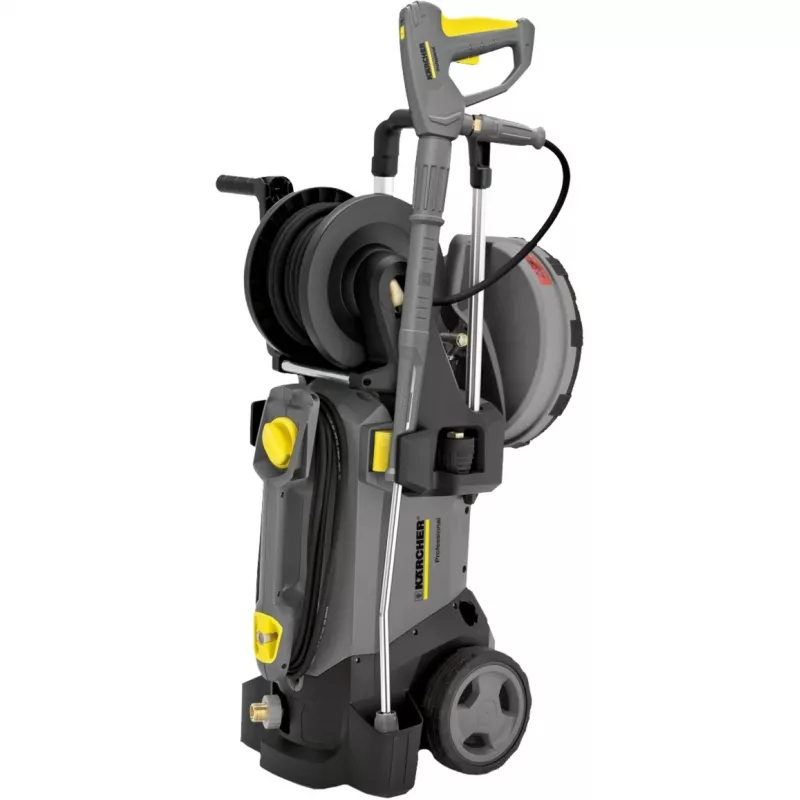

Lavadora de alta pressão Kärcher HD 5/15 CX Plus + FR Classic

The High pressure washer Kärcher HD 5/15 CX Plus + FR Classic is a compact, lightweight electric cold water cleaner designed for both vertical and horizontal operation. It features a 15 m hose, brass cylinder head, automatic pressure relief and a comprehensive accessory storage system. The unit provides a maximum flow rate of 500 l/h and a maximum working pressure of 150 bar, powered by a 2800 W motor at 230 V / 50 Hz, and its compact dimensions support easy storage and handling.

Advantages

The machine combines robust components and user-focused innovations to extend service life and simplify operation. The brass cylinder head and automatic pressure relief protect internal parts, while the EASY!Force high-pressure gun reduces the holding force by using the jet’s recoil. EASY!Lock quick-release fasteners enable faster connection and disconnection compared with conventional screw fittings without compromising durability. Integrated accessory storage and a balanced upright form factor support good mobility and convenient setup.

Suitable for

• Industrial and commercial surface cleaning
• Removal of stubborn dirt from floors and machinery
• Outdoor cleaning of vehicles, equipment and work areas
• Tasks requiring a compact, portable high-pressure unit

Key specifications

• Model: Kärcher HD 5/15 CX Plus + FR Classic (MPN 1.520-934.0, EAN 4054278164625)
• Form factor: Upright
• Hose length: 15 m
• Maximum flow rate: 500 l/h
• Maximum working pressure: 150 bar
• Power consumption: 2800 W (230 V, 50 Hz)
• Weight: 27.5 kg
• Dimensions (W×D×H): 380 × 370 × 930 mm
• Colours: Yellow, Grey, Black

How to use

Connect the unit to a 230 V power supply and attach the 15 m high-pressure hose and the EASY!Force gun. Open the water supply, switch on the machine and adjust the working pressure according to the task. Use the EASY!Lock fittings to connect accessories quickly and secure the lance or nozzle required for the job. After use, switch off the machine, relieve pressure automatically, drain any remaining water if required and store the accessories in the integrated storage compartments.

Recommendations

For best results, select a nozzle and pressure setting appropriate to the surface being cleaned; use lower pressure on painted or delicate surfaces. Regularly check and maintain fittings, hoses and the brass cylinder head to ensure long service life and safe operation.
