LEAN CARS Motor 24V 10000 U/min com Engrenagem para Eixo Dianteiro XMX613

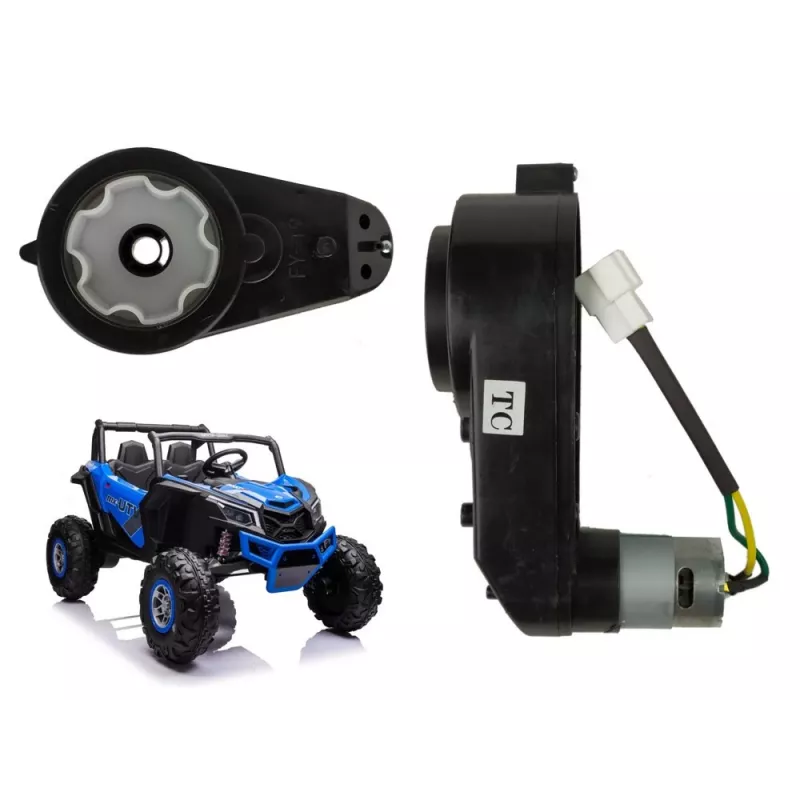

When the front wheels of a child's XMX613 ride-on car stop turning, this 24V motor and gearbox assembly restores the driving fun. It is a direct replacement for the front axle drive unit, combining a high-speed brushed motor with a robust reduction gearbox. The motor spins at 10000 RPM without load, delivering the torque needed to move the vehicle reliably. Installation is straightforward: the gearbox housing has four bolt holes for secure mounting, and the output shaft is a 12 mm D-shaft, 25 mm long, ready to accept the wheel. Wire leads provide the electrical connection to the car's existing harness.

Key specifications

• Operating voltage: 24V DC
• Motor speed (no load): 10000 RPM
• Motor type: Brushed DC electric motor
• Gearbox type: Reduction gearbox
• Output shaft: D-shaft, 12 mm diameter, 25 mm length
• Mounting: Bolt-on, 4 holes
• Electrical connection: Wire leads
• Motor housing material: Metal
• Gearbox housing material: High-strength plastic
• Color: Black / Silver
• Application: Replacement part for XMX613 front axle

Why choose it

This assembly is engineered to match the original specifications of the XMX613, ensuring proper fit and performance. The metal motor housing dissipates heat effectively, while the plastic gearbox keeps weight down without sacrificing strength. With its 24V rating and 10000 RPM motor, it provides the right balance of speed and torque for a front axle drive. The D-shaft output prevents wheel slippage, and the four-bolt mounting pattern aligns with the vehicle's frame for a secure installation.

Ideal use cases

• Replacing a worn or failed front axle motor on an XMX613 electric ride-on car
• Restoring drive to a ride-on toy that has lost front wheel power
• Upgrading or repairing the drivetrain of compatible 24V children's vehicles
• DIY maintenance for parents or hobbyists working on ride-on cars

Good to know

Before ordering, confirm that your ride-on car model is the XMX613 and that the failed unit is on the front axle. The assembly is sold as a single unit; no additional hardware is included. Basic tools are required for installation. Always disconnect the battery before servicing the vehicle. This part is intended for use in children's ride-on toys and should be installed by an adult.
