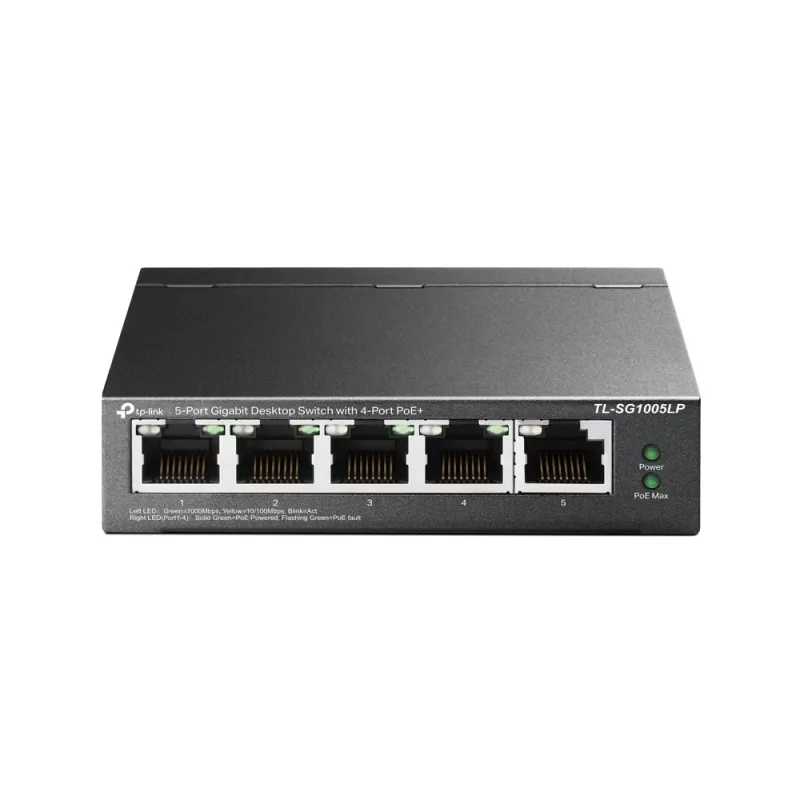

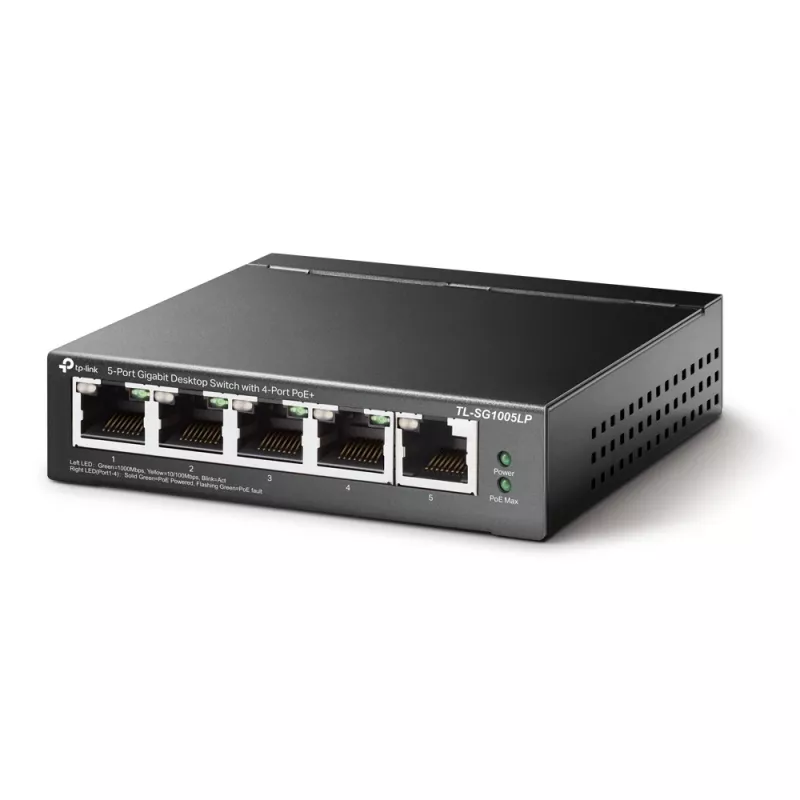

Switch de rede TP-Link TL-SG1005LP não gerido Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) preto

The TP-Link TL-SG1005LP is an unmanaged 5-port Gigabit Ethernet switch with four PoE+ ports, designed to expand wired networks and supply power to compatible devices. It supports IEEE 802.3af/at standards and offers a switching capacity of 10 Gbit/s and a MAC address table of up to 2000 entries. The compact, metal-cased unit is suitable for desk or wall mounting and is intended for simple plug-and-play deployment.

Advantages

The switch provides four PoE+ ports with a combined 40 W power budget and up to 30 W per port, enabling direct power delivery to IP cameras, access points, IP phones and other PoE devices without separate power adapters. Intelligent power management reallocates power when consumption exceeds the total budget by cutting power to lower-priority ports, protecting higher-priority devices and preventing overload. Additional features such as QoS and IGMP Snooping improve traffic prioritization and multimedia delivery, while the metal housing increases durability and reliability.

Suitable for

• Small office or home office network expansion
• IP camera surveillance systems for small businesses, dormitories or offices
• Connecting wireless access points and VoIP phones
• Simple unmanaged network setups requiring PoE power

Key specifications

• Ports: 5 × Gigabit RJ-45 (4 PoE+ ports)
• PoE standard: IEEE 802.3af/at (PoE+)
• PoE power budget: 40 W total; up to 30 W per port
• Switching capacity: 10 Gbit/s
• MAC address table: 2000 entries
• Switch type: Unmanaged
• Networking standards: IEEE 802.3u/802.3x/802.3i/802.3ab/802.1p
• Product colour: Black
• Input voltage: DC 53.5 V

How to use

Install the TL-SG1005LP on a flat surface or mount it on a wall using compatible screws. Connect your network devices to the RJ-45 ports using Cat5e or better Ethernet cables. PoE-capable devices connected to the four PoE ports will receive power automatically once the switch is powered on; non-PoE devices can be connected to the remaining ports without risk. No configuration is required for basic operation—the switch functions plug-and-play.

Recommendations

Place the switch in a well-ventilated area away from direct heat sources. When connecting multiple high-power PoE devices, consider the 40 W total budget and assign critical devices to higher-priority ports or stagger device power-up to avoid automatic power reduction on lower-priority ports.
