Leitor de códigos de barras Datalogic MC-HS7500 docking station móvel

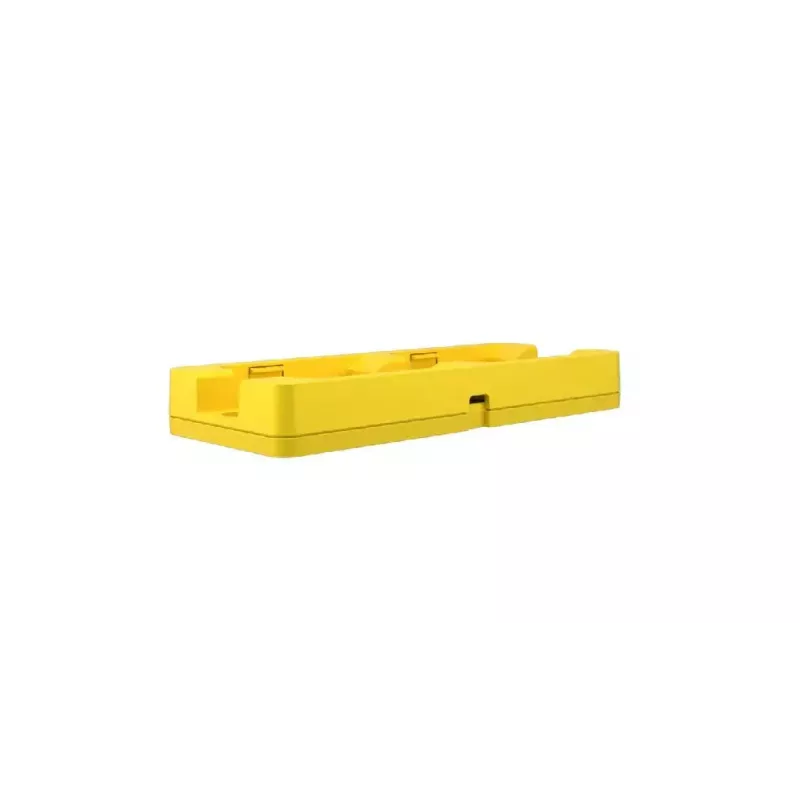

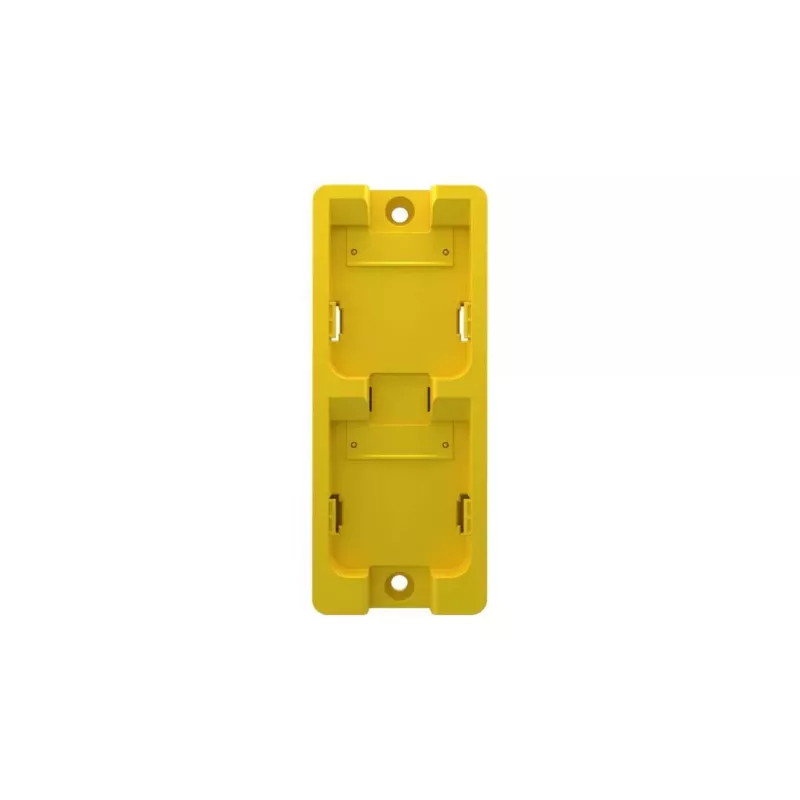

The Datalogic MC-HS7500 mobile device dock station is a compact charging station for HandScanner barcode readers. It features two charging trays that charge two HandScanners simultaneously. The unit is designed for easy mounting to workstations and offers a reliable, space-saving solution to keep devices charged and ready for use.

Advantages

The dock station supports simultaneous charging of two HandScanners and indicates charging status via the scanners' LEDs: pulsing red during charging and pulsing green when fully charged. Each HandScanner reaches full charge in about 2 hours. The MC-HS7500 is lightweight and compact (140 mm × 56 mm × 19 mm, 110 g), and can be attached to workstations using the attachment openings with M5 screws or cable ties.

Suitable for

• Workstations where multiple HandScanner devices need charging
• Retail and inventory environments using Datalogic HandScanners
• Portable setups requiring a compact, mountable charging solution

Key specifications

• Brand: Datalogic
• Model: MC-HS7500
• Compatibility: HandScanner devices
• Dimensions: 140 mm (W) × 56 mm (D) × 19 mm (H)
• Weight: 110 g
• Charging capacity: 2 HandScanners simultaneously
• Charging time: approx. 2 hours per HandScanner
• Mounting: attachment openings for M5 screws or cable ties

How to use

Place each HandScanner into a charging tray so the device makes contact with the charging connectors. Observe the HandScanner LEDs: they will pulse red while charging and pulse green when charging is complete. Allow about 2 hours for a full charge. Secure the charging station to a workstation if desired by using M5 screws or cable ties through the provided attachment openings.

Recommendations

For reliable operation, mount the dock station on a stable surface near a power source and ensure connectors are free of debris before docking devices. Do not force devices into the trays; align them gently to avoid damage to the charging contacts.
