Leitor de códigos de barras de encastrar Newland NVF260-20 1D/2D CMOS cinzento com fios USB

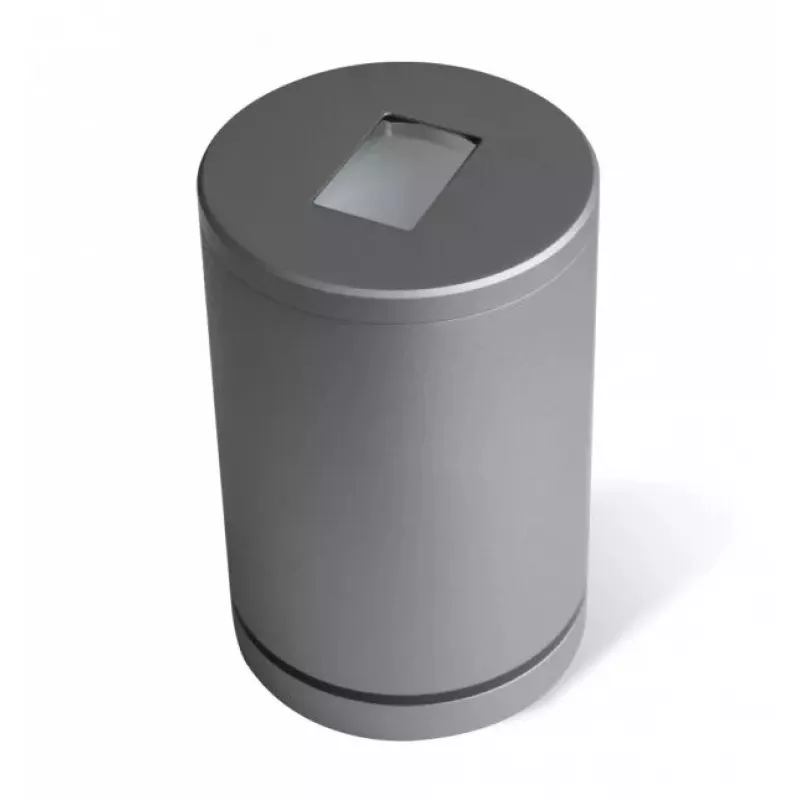

The Newland NVF260-20 is a built-in barcode reader engineered for healthcare and industrial environments, offering reliable 1D and 2D barcode capture. It uses a 1280×800 CMOS imager and a new generation of industrial decoding algorithms to read direct part mark (DPM) codes, including those on curved or metallic surfaces. The device features blue diffuse illumination to reduce reflections and an IP64-rated, medical-grade housing that resists dust and water and tolerates sterilization with 100% alcohol solutions.

Advantages

The NVF260-20 delivers improved DPM decoding performance and can capture small barcodes down to approximately 3 millimetres thanks to its megapixel imager. Its blue illumination ring minimizes reflection from metal surfaces to increase read reliability. The medical-grade coating and robust IP64 industrial design provide resistance to alcohol sterilization, dust and splashing water, making the scanner suitable for clinical settings.

Suitable for

• Tracking surgical instruments and medical devices
• Healthcare inventory and sterilization workflows
• Industrial applications requiring DPM decoding on metal or curved parts
• Embedded or built-in scanner installations with USB connectivity

Key specifications

• Model: Newland NVF260-20 (NLS-NVF260-20)
• Sensor: 1280×800 CMOS imager
• Barcode types: 1D and 2D, including DPM
• Minimum decode size: approximately 3 mm
• Illumination: blue diffuse illumination ring
• Protection: IP64 housing
• Connectivity: wired USB (direct cable)
• Housing: medical-grade coating resistant to 100% alcohol sterilization

How to use

Install the NVF260-20 into the intended housing or kiosk according to the device mounting instructions and connect the provided USB cable to a host computer or terminal. Position the target barcode within the scanner’s field of view and allow the blue illumination to reduce reflections from metallic surfaces for best decoding results. For DPM and small-code reading, align the code centrally and hold the item steady until the reader confirms a successful scan.

Recommendations

For consistent performance in healthcare environments, clean the scanner housing with approved disinfectants and follow manufacturer guidance for sterilization; avoid abrasive cleaners that could damage the medical-grade coating. Use steady alignment and ensure appropriate ambient lighting to help the NVF260-20 read DPM and small barcodes reliably.
