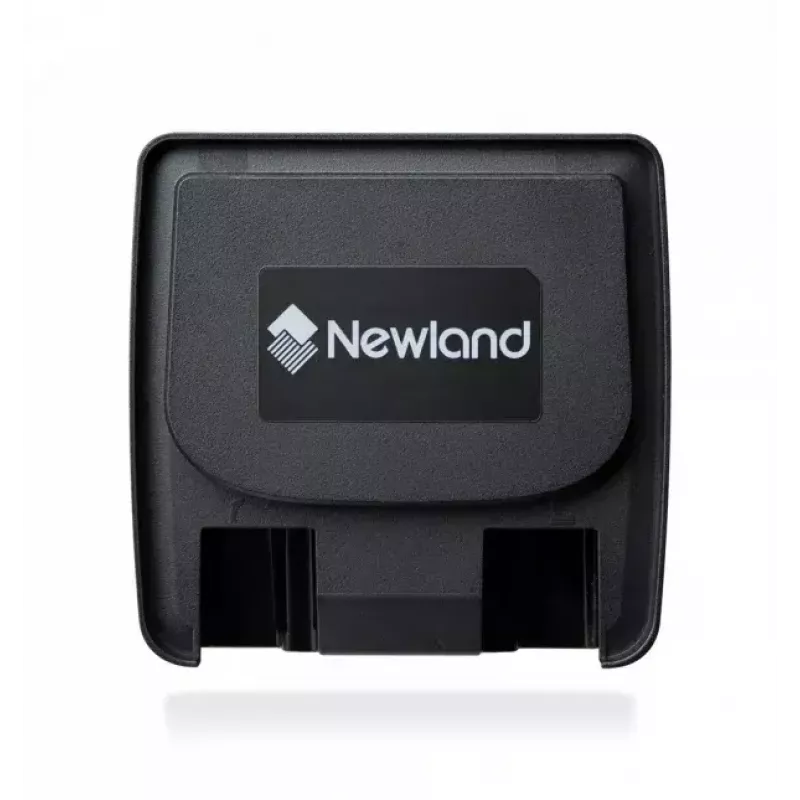

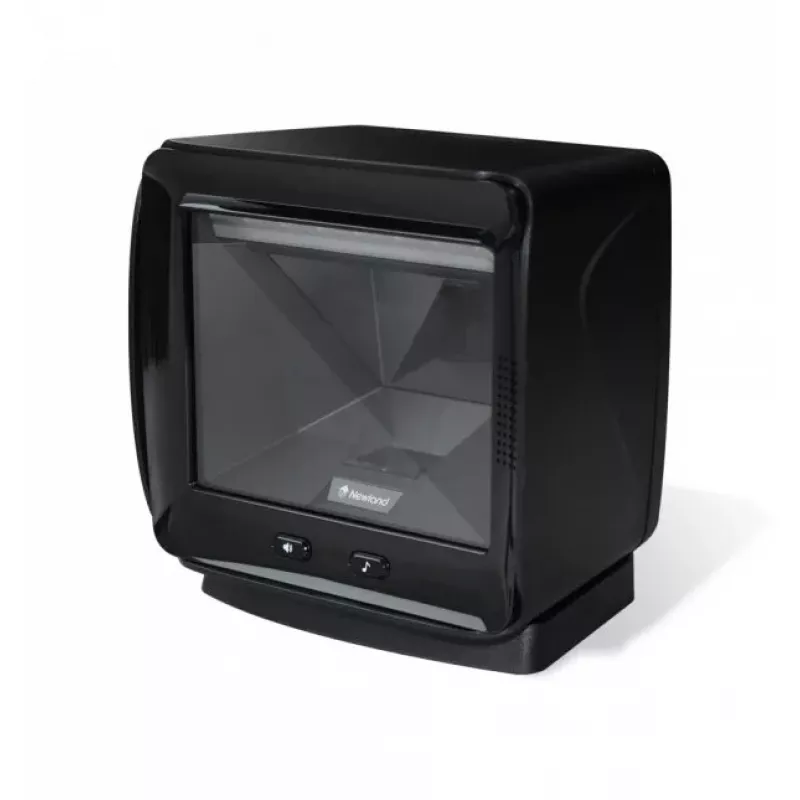

Leitor de códigos de barras fixo Newland FR80 Salmon 1D/2D CMOS com fios preto

The Newland FR80 Salmon is a fixed 1D/2D barcode reader for retail POS and self-service counters. Equipped with a CMOS sensor and wired connectivity (RS-232 and USB), the FR80 Salmon is designed to scan standard and high-density barcodes quickly and reliably. Its compact footprint, IP52 dust resistance, and 3 m cable make it suitable for busy checkout environments where fast decoding and robust operation are required.

Advantages

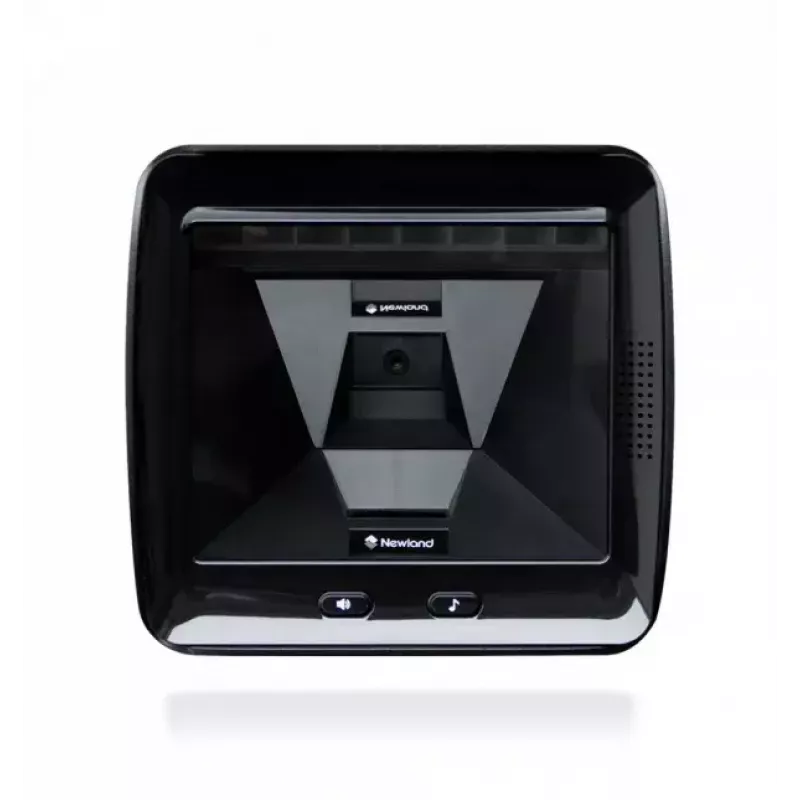

The FR80 Salmon offers a large scan window, high motion tolerance and a top-megapixel scan engine to capture moving or damaged codes with reduced need for precise alignment. Short- and long-range illumination with anti-glare design improves comfort for customer-facing scanning and phone-screen decoding. Active sensors prevent double reading, and an RJ expansion port allows adding a secondary scanner for bulky items or dedicated loyalty/e-voucher scanning. Two user-accessible buttons provide adjustable audible feedback and can be disabled via configuration.

Suitable for

• Retail POS counters (manned)
• Retail self-service checkouts
• Convenience and food retail requiring fast throughput
• Scanning barcodes on phone screens, loyalty codes and e-vouchers

Key specifications

• Scanner type: 1D/2D
• Sensor type: CMOS, megapixel scan engine
• Connectivity: Wired (RS-232, USB), 3 m cable
• Power: DC 5 V, typical consumption 2 W
• Ingress protection: IP52 (dust resistant)
• Supported linear codes: EAN-8, UPC-E, UPC-A, EAN-13, Code 128, Code 39, Code 93, Interleaved 2 of 5, Industrial/Matrix 2 of 5, ITF-6/ITF-14, Codabar, Code 11, Plessey
• Supported 2D codes: QR Code, Data Matrix, PDF417, Micro QR, MicroPDF417, Code 1
• Dimensions and weight: 151 mm (W) x 97.5 mm (D); weight 0.542 kg
• Color: Black

How to use

Install the FR80 Salmon at the checkout or self-service counter and connect via the supplied RS-232 or USB interface. Position the unit so the large scan window faces the presented goods or mobile screens. For typical operation, present barcodes through the scan window at normal hand speed; the scanner’s high motion tolerance and wide depth of field reduce the need for precise alignment. Use the RJ expansion port if an additional scanner is required for bulky items or a customer-facing loyalty scanner. Configure audible tones or deactivate buttons using the user manual or EasySet configuration software as needed.

Recommendations

Place the scanner at a comfortable height and angle for cashiers and customers, keep the scan window clean to maintain decoding performance, and use the expansion RJ connection when frequent scanning of bulky or awkward items is expected.
