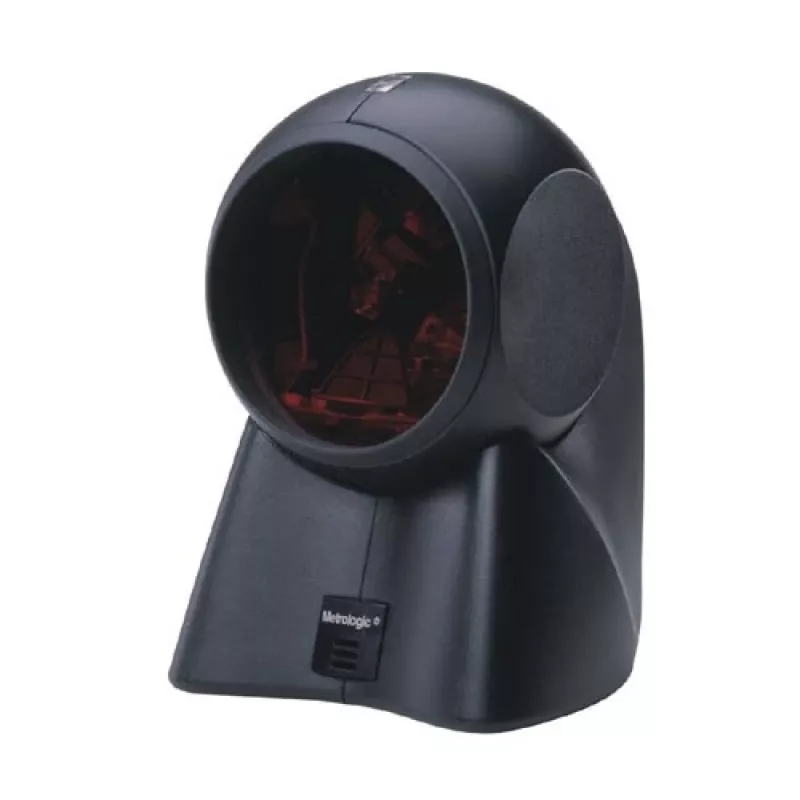

Leitor de códigos de barras Honeywell Orbit MS7120 (MK7120-31A38)

The Honeywell Orbit MS7120 is a high-performance omnidirectional presentation barcode scanner designed for retail and light industrial environments. With its advanced scan engine and integrated adjustable stand, it offers hands-free scanning of 1D barcodes at speeds up to 1120 scans per second. The scanner features a visible laser diode (650 nm) and decodes all standard 1D symbologies, including GS1 DataBar. Its compact black design and IP41 sealing ensure durability and reliability in demanding settings.

Advantages

Omnidirectional scanning with 5 fields of 4 parallel lines enables fast and accurate reading of barcodes from any angle, reducing the need for manual alignment. The integrated stand allows flexible hands-free operation, while the programmable beeper and LED indicators provide clear user feedback. With a drop specification of 1.2 m (4 ft), the Orbit MS7120 is built to withstand accidental drops, ensuring long-term performance.

Suitable for

• Retail point-of-sale (POS) checkout counters
• Light industrial and warehouse applications
• Libraries and document management
• Healthcare and pharmaceutical environments

Key specifications

• Scan Pattern: Omnidirectional (5 fields of 4 parallel lines)
• Scan Speed: 1120 scan lines per second
• Light Source: Visible Laser Diode 650 nm ± 10 nm
• Decode Capability: 1D (all standard 1D symbologies, including GS1 DataBar)
• Host System Interface: USB
• Connectivity Technology: Wired
• Input Voltage: 5 VDC ± 0.25 V
• Power Consumption (Operating): 900 mW (180 mA @ 5 V)
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 60°C (-40°F to 140°F)
• Humidity: 5% to 95% relative humidity, non-condensing
• Drop Specification: Designed to withstand 1.2 m (4 ft) drops
• Print Contrast: 35% minimum reflectance difference
• Indicators: LED, Beeper (programmable tone and volume)
• Color: Black
• Environmental Sealing: IP41
• Stand: Integrated adjustable stand
• Cable Length: 1.5 m (5 ft) USB cable

Recommendations

For optimal performance, ensure the scanner is placed on a stable surface and the USB cable is securely connected to a compatible host system. Regular cleaning of the scan window with a soft, dry cloth is recommended to maintain scan accuracy.
