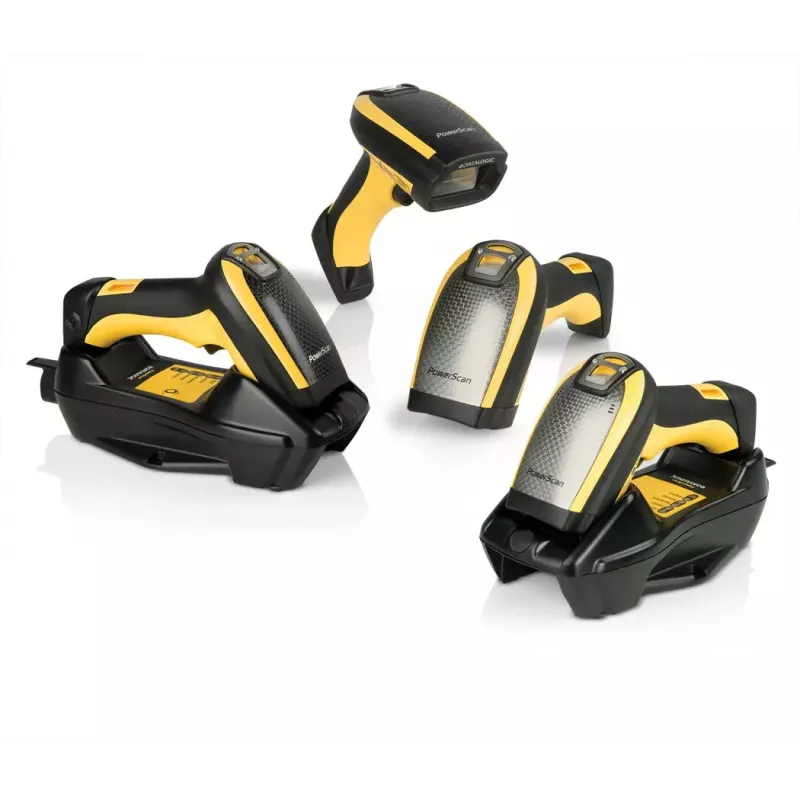

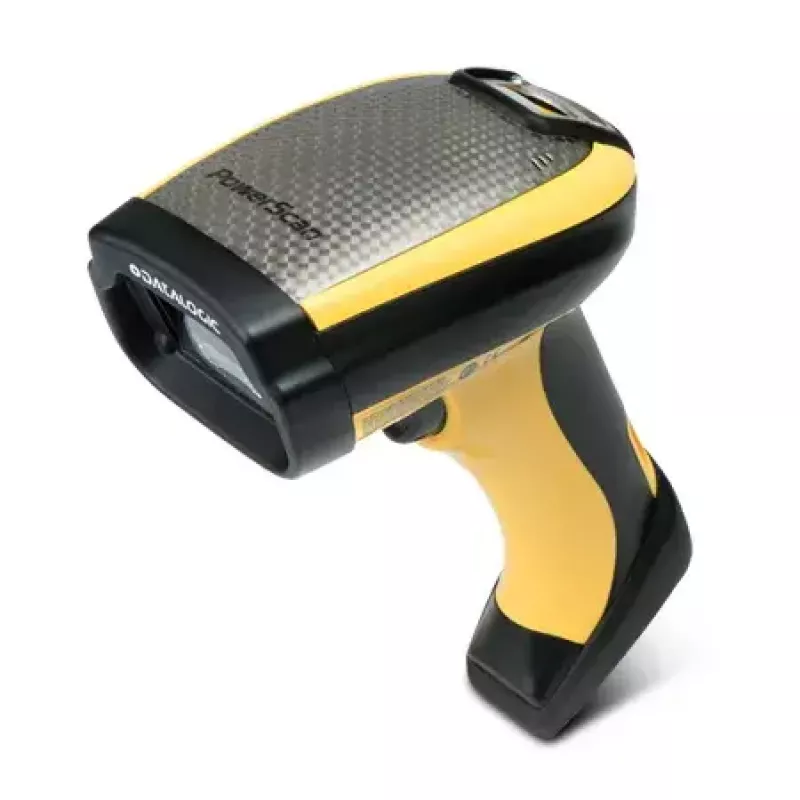

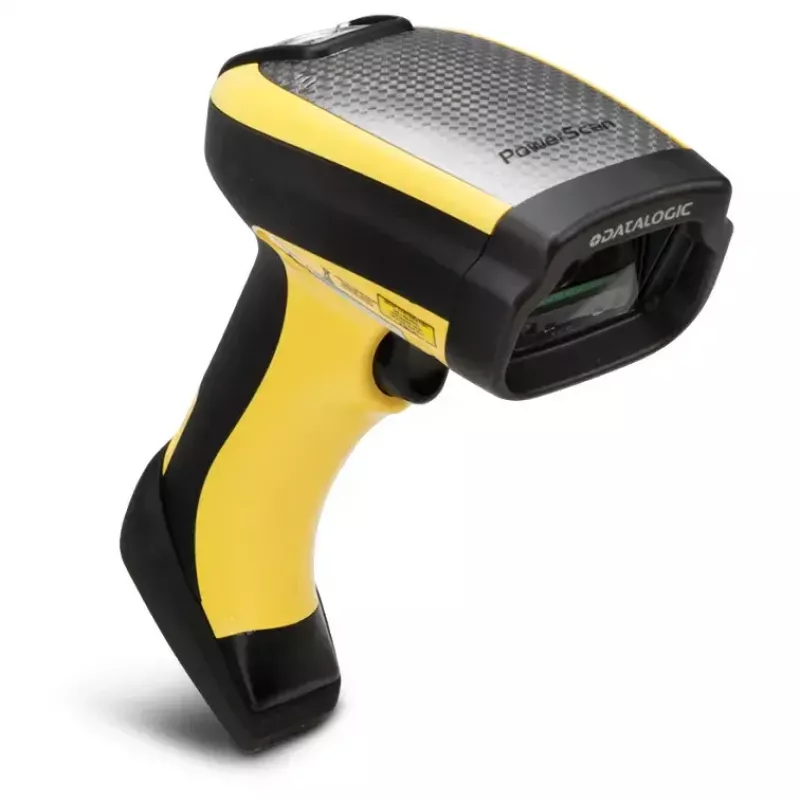

Leitor de códigos de barras portátil Datalogic PowerScan PD9531

The Datalogic PowerScan PD9531 (PD9531-DPMK1) is a rugged handheld bar code reader designed for Direct Part Marking (DPM) and standard label scanning. It supports both 1D and 2D codes and uses a high-density optic and photo diode sensor to capture small, high-resolution codes at close range as well as larger codes up to approximately 15.0 cm. The device is built for industrial use with a durable design, lightweight handling (0.33 kg) and wired connectivity options including USB, RS-232 and keyboard wedge.

Advantages

The PowerScan PD9531 integrates a specialized DPM-capable area imager together with standard barcode reading, enabling a single device to handle laser-etched, dot-peened, chemically etched and ink-jet marked codes as well as printed labels. Its high-density optics increase the read rate for very small codes, while Motionix™ motion-sensing technology automatically switches scanning modes based on operator movement. The scanner’s soft-pulsed white illumination reduces visible flashes for operator comfort, and the intuitive aiming system improves first-pass read success. The rugged housing and IP65-level protection make it suitable for industrial environments.

Suitable for

• Reading DPM codes on metal and plastic parts in manufacturing
• Scanning small, high-resolution 2D matrix codes near contact
• General warehouse and logistics barcode scanning (labels and tags)
• Workstations requiring wired connectivity (USB, RS-232, keyboard wedge)

Key specifications

• Model: Datalogic PowerScan PD9531 (PD9531-DPMK1)
• Scanner type: 1D/2D area imager (DPM-capable)
• Sensor: photo diode
• Typical reading distance for DPM: contact to 4–5 cm (varies by mark type); up to ~15.0 cm for higher-resolution codes
• Supported 2D codes: Data Matrix, QR Code, Micro QR, Aztec Code, MaxiCode
• Connectivity: wired (USB, RS-232, keyboard wedge)
• Weight: 0.33 kg
• Colours: Yellow, Black
• Ruggedness: designed for industrial use (IP65-level protection)

How to use

Hold the PowerScan PD9531 in hand and position the aiming pattern over the barcode or DPM mark. For Direct Part Marking, bring the scanner close to the marked surface—typically contact to a few centimetres depending on mark type and resolution—until the aiming system confirms alignment; the reader will capture the code automatically. For standard labels or larger codes, position the scanner at a greater distance within the optical range (up to about 15.0 cm) and activate scanning as required by your host system connection (USB, RS-232 or keyboard wedge).

Recommendations

Use the PD9531 in well-positioned, stable scanning postures and adjust distance based on mark type: contact-to-close range for laser, chemical etch or dot-peened DPM marks; slightly farther for high-resolution printed or matrix codes. Regularly clean the scanner window and follow site-specific handling procedures to maintain read performance.
