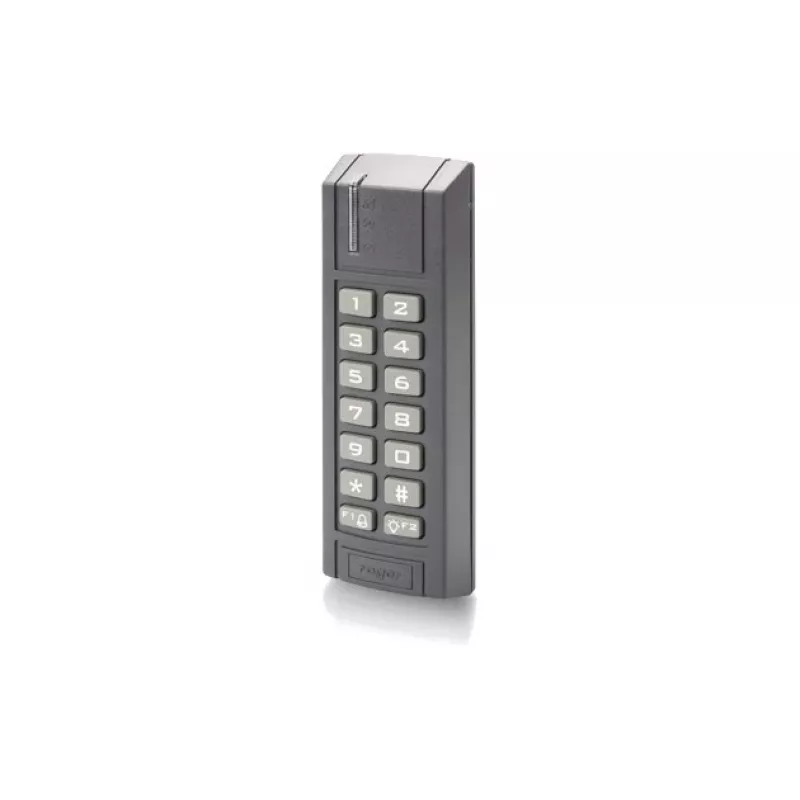

ROGER MCT12E-IO Leitor de proximidade

The ROGER MCT12E-IO is a proximity reader designed for the RACS 5 access control system with MC16 controllers. It reads EM 125 kHz cards at a distance of up to 7 cm and supports both card and code identification. The reader operates as a slave device to the access controller and cannot independently supervise a passage.

Key features

• Identification by card and code
• Card reading distance up to 7 cm
• 125 kHz standard operation
• Indoor and outdoor operation
• Two function keys
• Relay output
• Three NO/NC input lines
• Two transistor outputs
• RS485 communication interface
• 3x LED indicators
• Buzzer with adjustable sound level
• Keypad with adjustable backlight level
• Tamper detection (enclosure opening and detachment from surface)
• Low-level configuration via RS485 (RogerVDM)
• Firmware update via RS485 (RogerISP)

Specifications

• Proximity card reading: EM 125 kHz
• Read range: up to 7 cm
• Communication interface: RS485
• LED indicators: 3x
• NO/NC inputs: 3x
• Relay output: 1.5A/30V
• Transistor outputs: 2x 1A/15V
• Output line quiescent polarization definition: Yes
• Function keys: 2x
• Power supply: 12VDC
• Dimensions (W x H x D): Standard base: 152.5 x 46 x 23 mm; High base: 152.5 x 46 x 35 mm
• Mark: CE
