Leitor de proximidade ROGER PRT12EM-G

The ROGER PRT12EM-G Proximity Reader is a proximity card reader with an anti-sabotage contact and IP67 rating. It operates on 10-15 VDC and consumes 65 mA.

Key features

• Proximity card reader
• Anti-sabotage contact: NC contact, 50mA/24V, IP67
• Read range for key cards: up to 15 cm
• Environmental class: Class IV, general outdoor conditions, ambient temperature: -25°C to +60°C, relative humidity: 10-95% (non-condensing)
• CE certified

Specifications

• Brand: Roger
• MPN: PRT12EM
• Model: PRT12EM
• Power supply voltage: 10-15 VDC
• Current consumption: 65 mA

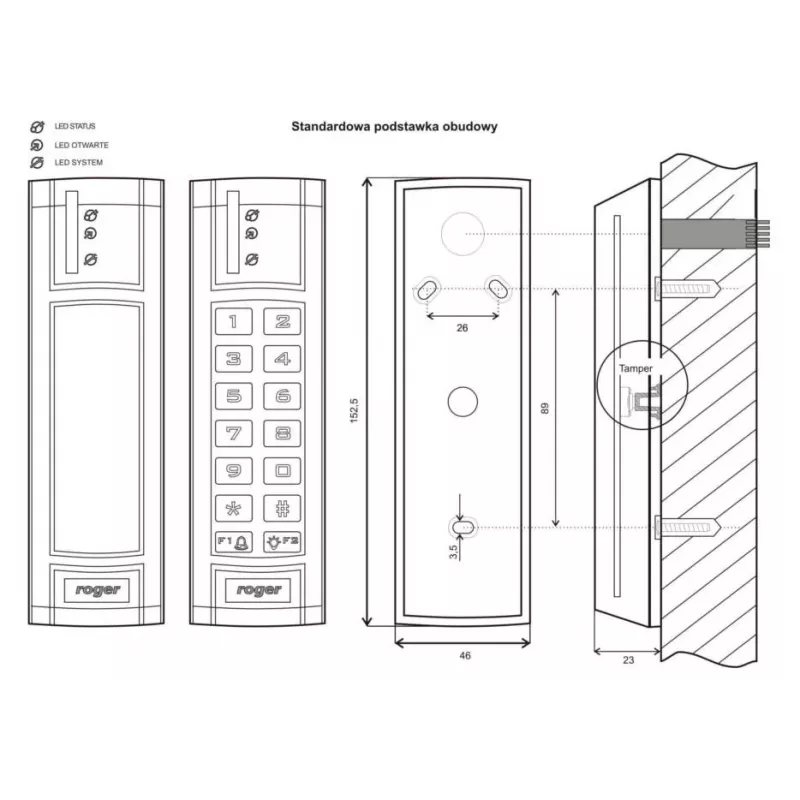

• Dimensions with standard housing base: 152.5 x 46 x 23 mm

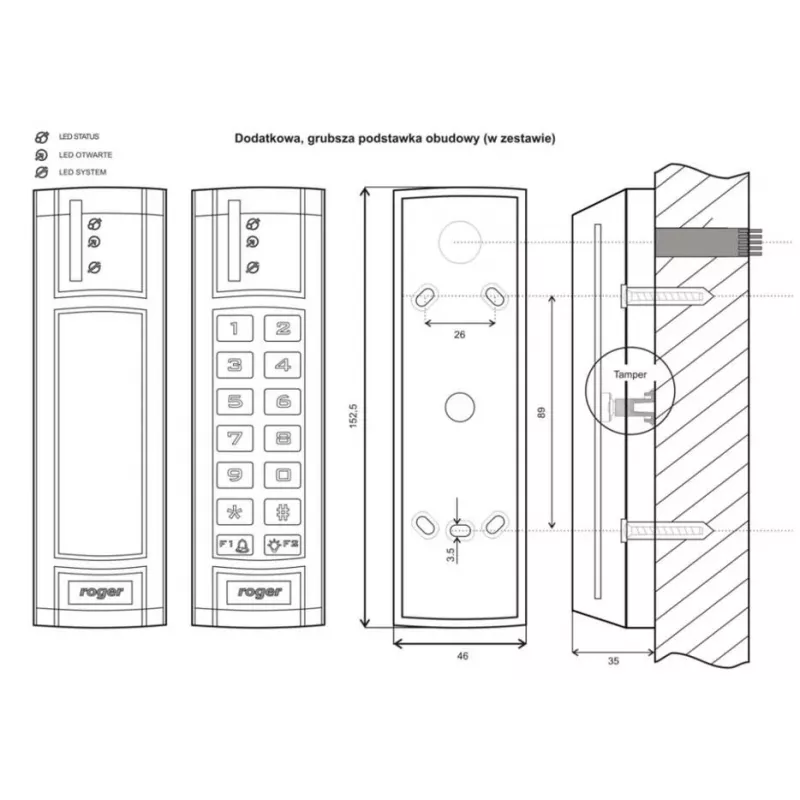

• Dimensions with thicker housing base: 152.5 x 46 x 35 mm
• Weight: ≈150 g
