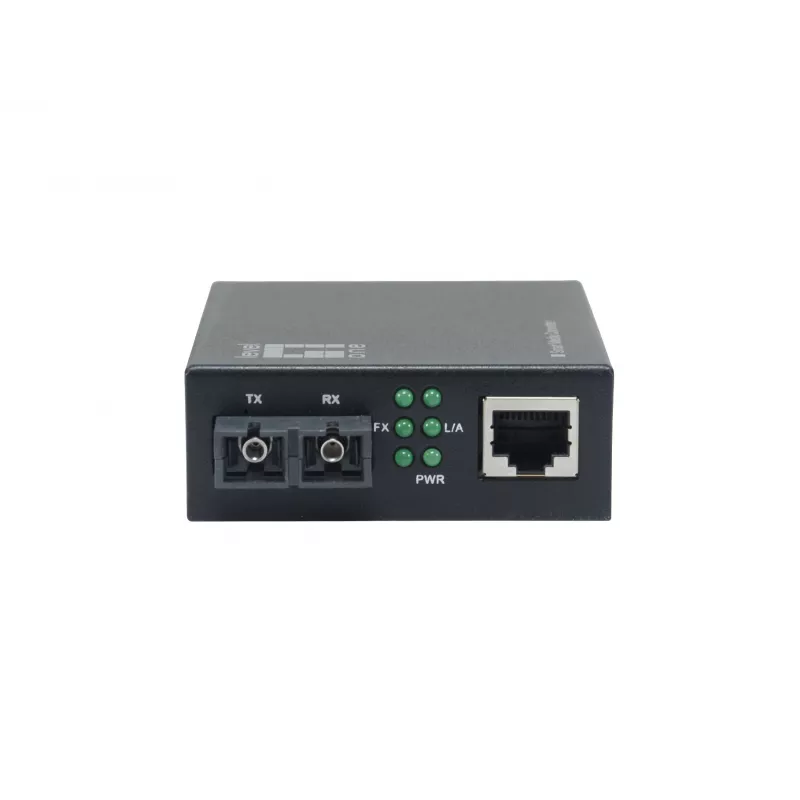

LevelOne Conversor de media Gigabit RJ45 para SC inteligente, fibra monomodo, 1310 nm, 20 km, 1000 Mbps

The LevelOne GVM-2002 is a high-performance Smart Gigabit Media Converter designed to extend network reach over single-mode fiber. It converts 10/100/1000Base-T copper to 1000Base-LX fiber, supporting distances up to 20 km at 1310 nm. Ideal for connecting remote networks, it features advanced management capabilities including Link Fault Pass-through (LFP) and jumbo frame support. Compatible with 19-inch rack-mount chassis, it offers flexible deployment in enterprise environments.

Advantages

Reliable and cost-effective solution for long-distance fiber connectivity. Smart features like LFP and DIP switch configuration simplify troubleshooting and network monitoring. Supports jumbo frames up to 9K bytes for improved data efficiency. Metal housing ensures durability and heat dissipation.

Suitable for

• Extending Ethernet networks over single-mode fiber up to 20 km
• Connecting remote offices, campuses, or industrial sites
• Integrating with 19-inch rack-mount chassis for centralized deployment
• Applications requiring gigabit speed and reliable fiber connectivity

Key specifications

• Product Type: Fiber Media Converter
• Ethernet Port: 1x RJ45 (10/100/1000Base-T)
• Fiber Port: 1x SC (Single-mode)
• Fiber Wavelength: 1310 nm
• Max. Fiber Distance: 20 km
• Data Transfer Rate: 1000 Mbps
• Supported Standards: IEEE 802.3, 802.3ab, 802.3az, 802.1Q, 802.1p
• Jumbo Frame Support: Up to 9K bytes
• Link Fault Pass-through (LFP): Yes (DIP switch configurable)
• Rack Mount Compatibility: Yes (compatible with 19-inch chassis)
• LED Indicators: Power, Link/Act, FDX/COL, SPD
• Power Supply: External DC 5V, 1A
• Operating Temperature: 0°C to 50°C
• Operating Humidity: 10% to 90% RH (non-condensing)
• Housing Material: Metal
• Flow Control: IEEE 802.3x (Full-duplex), Backpressure (Half-duplex)

Recommendations

For optimal performance, use with single-mode fiber patch cables (SC connectors) and ensure proper power supply. The converter can be mounted in a compatible 19-inch rack chassis for organized installation. Ideal for network administrators seeking a reliable, smart media converter for long-distance gigabit links.
