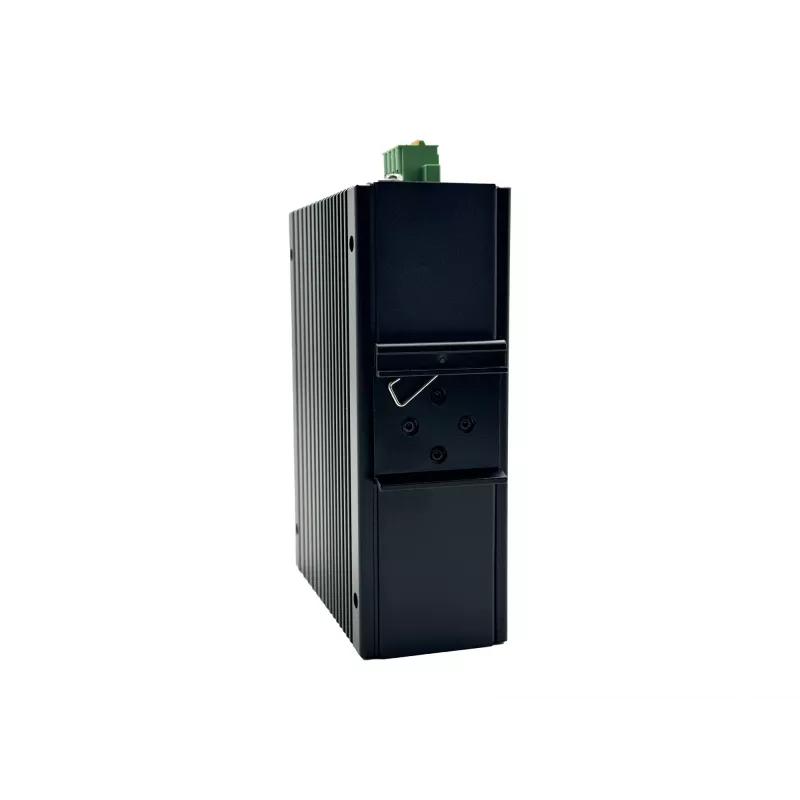

LevelOne Switch Industrial Gerido L2 Plus Gigabit de 10 Portas, 8x 1GbE RJ45, 2x 1/2.5GbE SFP, Calha DIN, -40°C a 75°C

The LevelOne IGU-1071 is a compact, rugged managed industrial Ethernet switch that provides Layer 2+ features for demanding automation and industrial networking environments. It includes 8x 10/100/1000Base-T RJ45 ports and 2x 1000/2500Base-X SFP slots, supports a wide operating temperature range (-40°C to +75°C), and offers redundant DC power inputs and advanced protection to ensure continuous operation.

Advantages

The switch delivers fast failover with G.8032 ERPS recovery time under 20 ms and supports a switching capacity of 26 Gbit/s with a MAC table of 16,000 entries. It provides robust physical protection with 6 kV surge protection, ESD protection (air 15 kV, contact 8 kV), a fanless IP40 DIN-rail enclosure, and redundant 12–58 V DC power inputs. Management options include Web GUI, SNMP, CLI and Telnet for flexible configuration and monitoring.

Suitable for

• Industrial automation networks
• Factory floor and process control systems
• Transport and infrastructure networks requiring redundancy
• Harsh-environment Ethernet deployments (wide temperature ranges)

Key specifications

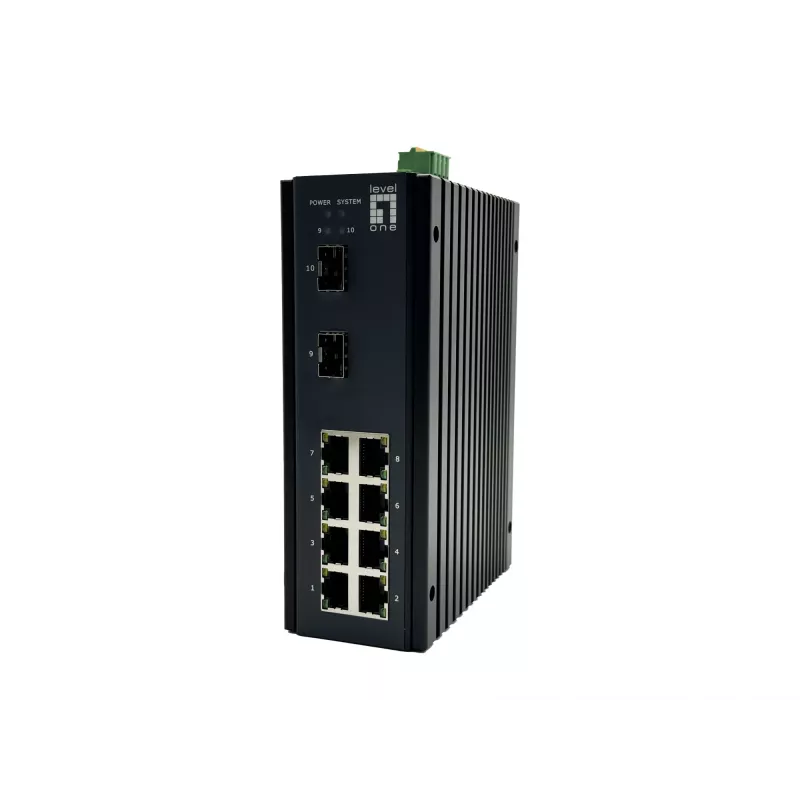

• Ports: 8 x 10/100/1000Base-T RJ45, 2 x 1000/2500Base-X SFP slots
• Switching capacity: 26 Gbit/s
• MAC address table: 16,000 entries
• Power: Redundant 12–58 V DC inputs
• Protection: Surge 6 kV, ESD air 15 kV / contact 8 kV
• Operating temperature: -40°C to +75°C
• Enclosure: Fanless IP40 DIN-rail
• Managed features: VLAN, QinQ, STP/RSTP/MSTP, Link Aggregation, QoS, IGMP Snooping, ACL, 802.1X
• Layer 3: IPv4/IPv6 static routing, DHCP server
• Management interfaces: Web, SNMP, CLI, Telnet

How to use

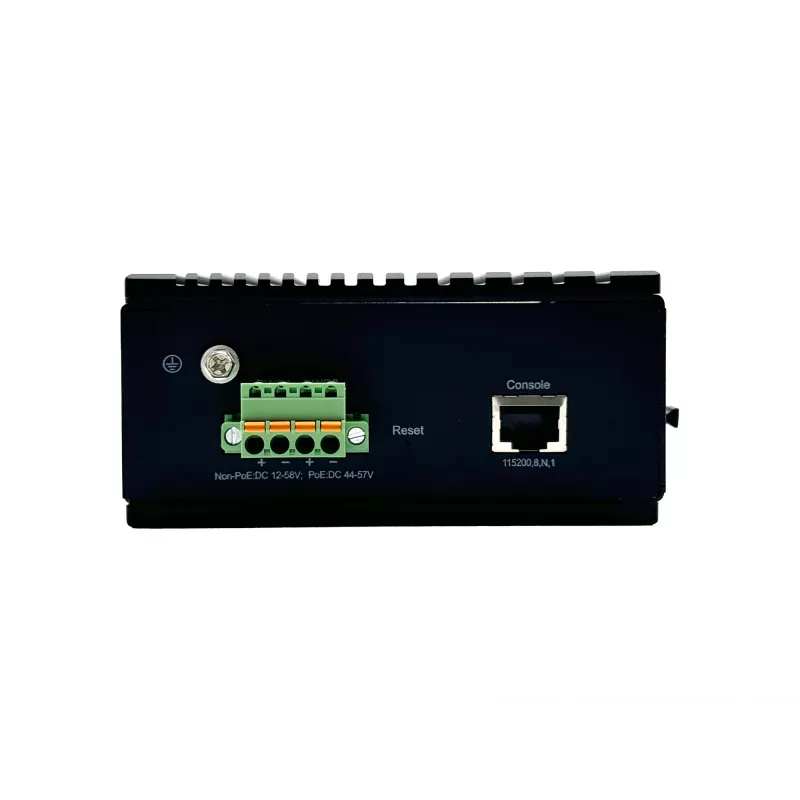

Install the IGU-1071 on a DIN rail and connect redundant DC power supplies to the designated input terminals. Connect network devices to the RJ45 ports or SFP slots as required. Access the switch through the Web GUI, SNMP, CLI or Telnet to configure VLANs, ERPS rings, QoS policies, and static routes. Use firmware upgrade and monitoring tools via the management interfaces to maintain the device.

Recommendations

Deploy the switch within environments that match its IP40 protection and temperature range; use redundant power and ERPS topology for critical links. Test ERPS recovery and backup configurations during commissioning and keep firmware up to date for security and stability improvements.
