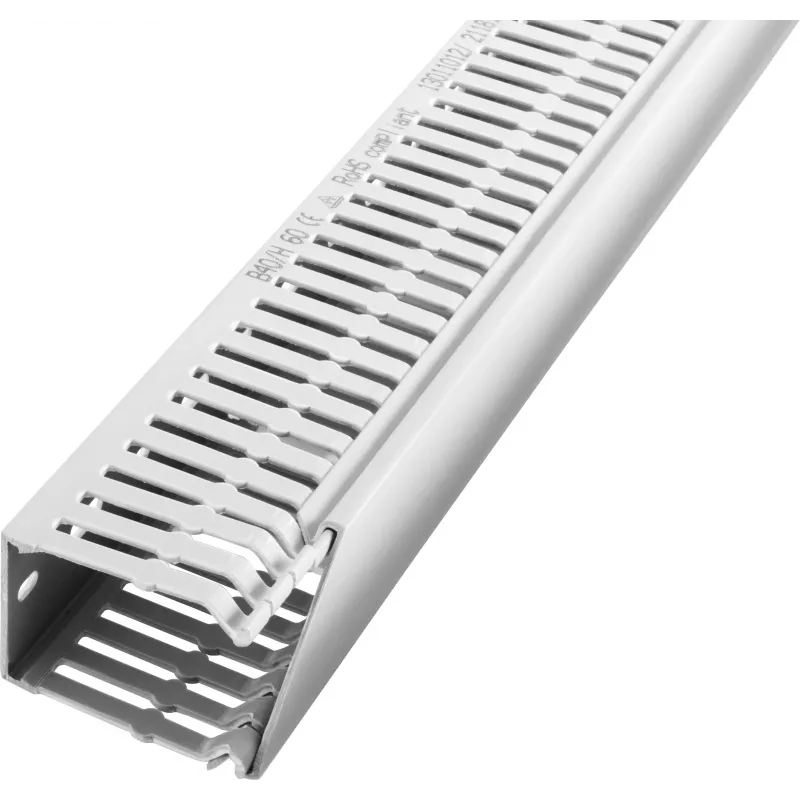

Licatec Canal de cabos isento de halogéneos 40 x 80 mm, cinzento, 2 m, PC/ABS, UL94 V0, com tampa

Unmanaged cable runs inside control panels and switchgear quickly become a safety hazard and a maintenance nightmare. The Licatec 7381-1 wiring duct brings order to that chaos with a halogen-free, self-extinguishing PC/ABS body that routes, protects, and organises conductors in one clean pass. Its 40 mm width and 80 mm height give you the capacity to bundle power and signal wiring without cramping, while the integrated finger-slot design keeps individual conductors accessible for changes or troubleshooting.

Who is it for

Panel builders, machine integrators, and electrical maintenance teams who need a reliable, code-compliant cable management solution for industrial control cabinets, switchgear, and automation enclosures. If you work in environments where fire safety and low smoke emission are non-negotiable, this duct is built for you.

Main features

• Halogen-free PC/ABS blend emits no corrosive gases in a fire, protecting both personnel and sensitive electronics.
• UL94 V0 flame rating and self-extinguishing behaviour stop flame spread along the duct.
• Pre-scored finger slots (6.5 mm slot, 6.5 mm web) allow clean breakout of wires at any point without special tools.
• Snap-on lid included, so you can close the duct after wiring and reopen it quickly for modifications.
• UV-resistant grey (RAL 7035) finish suits both indoor and outdoor-rated enclosures without fading or embrittlement.
• 2-metre length covers long horizontal or vertical runs with fewer joints, reducing installation time.

Specifications

• Material: PC/ABS (Polycarbonate/Acrylonitrile Butadiene Styrene)
• Halogen-free: Yes
• Colour: Grey (RAL 7035)
• Width: 40 mm
• Height: 80 mm
• Length: 2000 mm
• Slot type: Finger slots
• Slot width: 6.5 mm
• Web width: 6.5 mm
• Operating temperature range: -25°C to +90°C
• Fire protection class: UL94 V0
• Mounting type: Screw mounting
• Lid included: Yes
• Certifications: VDE, UL, CSA, RoHS
• Self-extinguishing: Yes
• UV resistance: Yes
• Application: Industrial control panels, switchgear, electrical enclosures

Tips

For a clean installation, pre-drill mounting holes at regular intervals and use pan-head screws. When breaking out wires, bend the finger back and forth until it snaps cleanly; avoid using pliers which can leave sharp edges. Always de-burr the cut edges with a utility knife to protect wire insulation.
