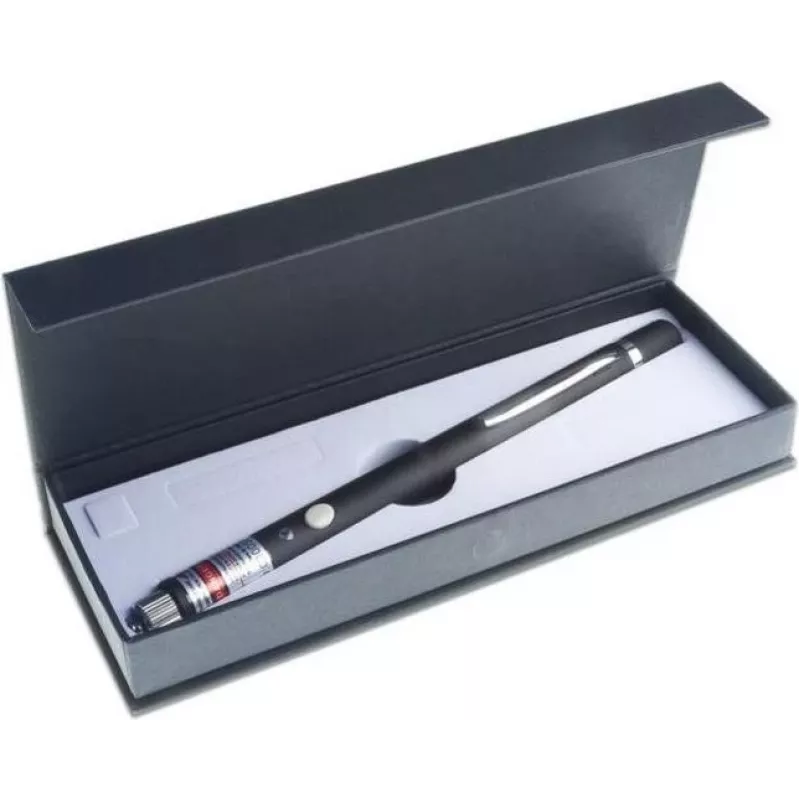

LIGHTWIN FIBERCHECKER 5MW Localizador visual de falhas - Testador de cabo de fibra ótica 650nm 5mW com adaptador universal de 2,5mm para conectores SC/ST/FC, modo CW e pulsado, caixa em liga de alumínio

Field technicians troubleshooting fiber optic networks need a reliable tool to pinpoint breaks, bends, and faulty connectors quickly. The LIGHTWIN FIBERCHECKER 5MW Visual Fault Locator delivers exactly that: a bright 650nm red laser at 5mW output power, visible up to 5 km on single-mode fiber. Its 2.5mm universal adapter accepts SC, ST, and FC connectors directly, making it compatible with most patch panels, splice trays, and test equipment. Switch between continuous wave (CW) for steady illumination and 2 Hz pulsed mode to distinguish fibers at the far end. The rugged aluminum alloy body withstands daily field use, while the included dust cap protects the laser aperture. Powered by two AAA batteries (approx. 20 hours runtime), this pocket-sized VFL is an essential companion for fiber installation, maintenance, and emergency repairs.

Key specifications

• Laser wavelength: 650 nm ± 10 nm
• Output power: 5 mW (Class 2M laser)
• Connector interface: 2.5mm universal adapter (SC, ST, FC)
• Fiber compatibility: Single-mode and multi-mode
• Operating modes: Continuous wave (CW) and pulsed (2 Hz)
• Detection range: Up to 5 km on single-mode fiber
• Power source: 2x AAA batteries (approx. 20 hours)
• Housing: Aluminum alloy with dust cap and LED indicator
• Operating temperature: -10°C to +50°C
• Storage temperature: -20°C to +70°C

Why choose it

The FIBERCHECKER 5MW combines high visibility, universal connectivity, and durable construction in a compact form. Unlike cheaper plastic VFLs, its aluminum alloy body resists drops and abrasion. The 2.5mm adapter eliminates the need for multiple adapters, saving time on site. The pulsed mode is invaluable for identifying specific fibers in dense bundles, while the long battery life ensures uninterrupted operation throughout a workday. With a Class 2M laser rating, it is safe for professional use with standard precautions.

Ideal use cases

• Locating breaks, macrobends, and faulty splices in fiber optic cables
• Verifying continuity and polarity in patch cords and pigtails
• Identifying individual fibers during installation or maintenance
• Testing fiber links in LAN, WAN, FTTH, and data center environments
• Quick troubleshooting for telecom and CATV technicians

Good to know

The laser is not visible on multimode fiber beyond a few hundred meters due to higher attenuation, but it remains effective for short links and connector inspection. Always avoid direct eye exposure to the laser beam. The device automatically powers off after a period of inactivity to conserve battery. For best results, clean connectors before testing and use the dust cap when not in use.
