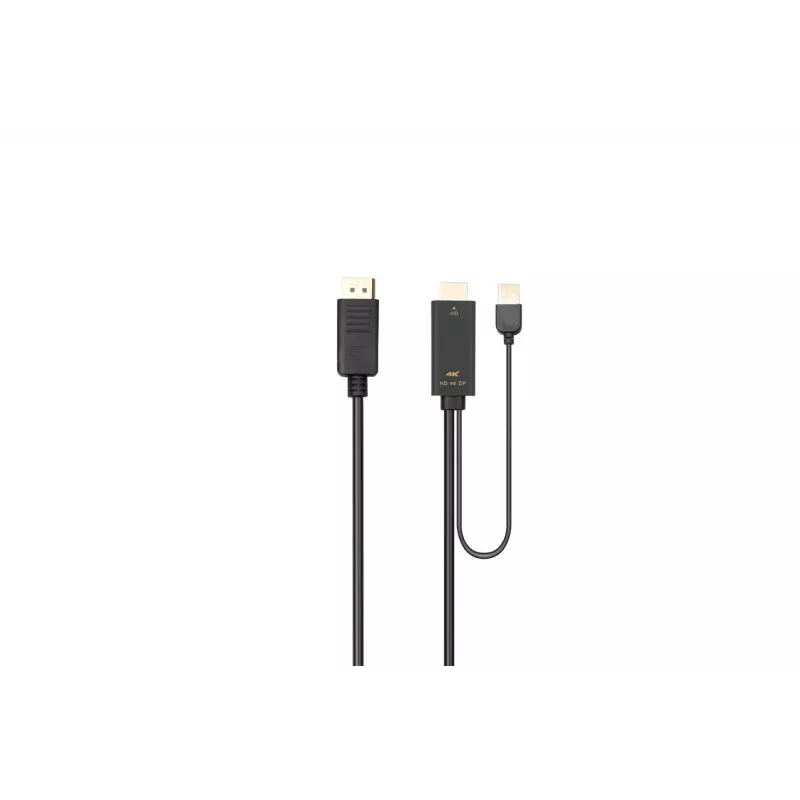

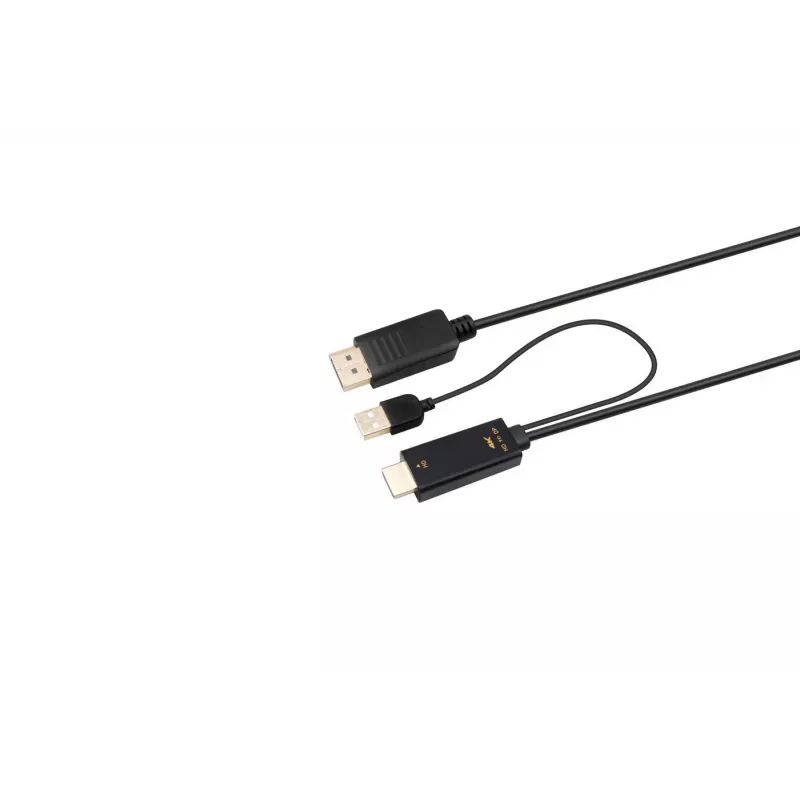

Adaptador de cabo de vídeo Microconnect HDMI-DP-CON2 2 m DisplayPort preto

The Lindy 2m HDMI to DisplayPort Adapter Cable (model 41426) converts an HDMI signal to a DisplayPort display, allowing HDMI-equipped devices such as media players, game consoles and PCs to connect to DisplayPort monitors. The active cable contains a chipset inside the HDMI connector and includes a USB Type-A power connector to ensure a stable conversion and reliable operation over the 2 m cable length.

Advantages

This adapter cable supports high-quality video up to 4096x2160 (4K) at 30 Hz and complies with HDMI 1.4, DisplayPort 1.2, HDCP 1.4 and DPCP standards. It carries uncompressed multi-channel audio for surround sound and is built with a durable 5.5 mm diameter jacket. The included USB connector can be used to supply additional power when required. The product comes with a 2-year warranty and meets CE, REACH and RoHS certifications.

Suitable for

• Connecting HDMI media players to DisplayPort monitors
• Using game consoles with DisplayPort displays
• Connecting laptops or desktop PCs with HDMI output to DisplayPort screens
• Home entertainment setups and office workstations requiring HDMI-to-DisplayPort conversion

Key specifications

• Cable length: 2 m
• Connector 1: HDMI + USB Type-A (power)
• Connector 2: DisplayPort
• Maximum resolution: 4096 x 2160 @ 30 Hz (4K@30Hz)
• Standards: HDMI 1.4, DisplayPort 1.2, HDCP 1.4, DPCP
• Diameter: 5.5 mm
• Colours: Red, Black
• Manufacturer part number (MPN): 41426
• EAN: 4002888414265
• Warranty: 2 years

How to use

Connect the HDMI plug to the HDMI output of your source device (media player, console or PC) and plug the DisplayPort end into the DisplayPort input of your monitor. If the monitor requires additional power for active conversion, connect the USB Type-A power connector to a USB power source (PC USB port or a USB power adapter). Power on both devices and select the appropriate input on the DisplayPort monitor. Ensure cables are fully seated for a stable connection.

Recommendations

For best results use the 2 m length to avoid signal strain; if you encounter no video output, attach the USB power connector to a reliable 5 V USB source to provide extra power for the active converter chipset.
