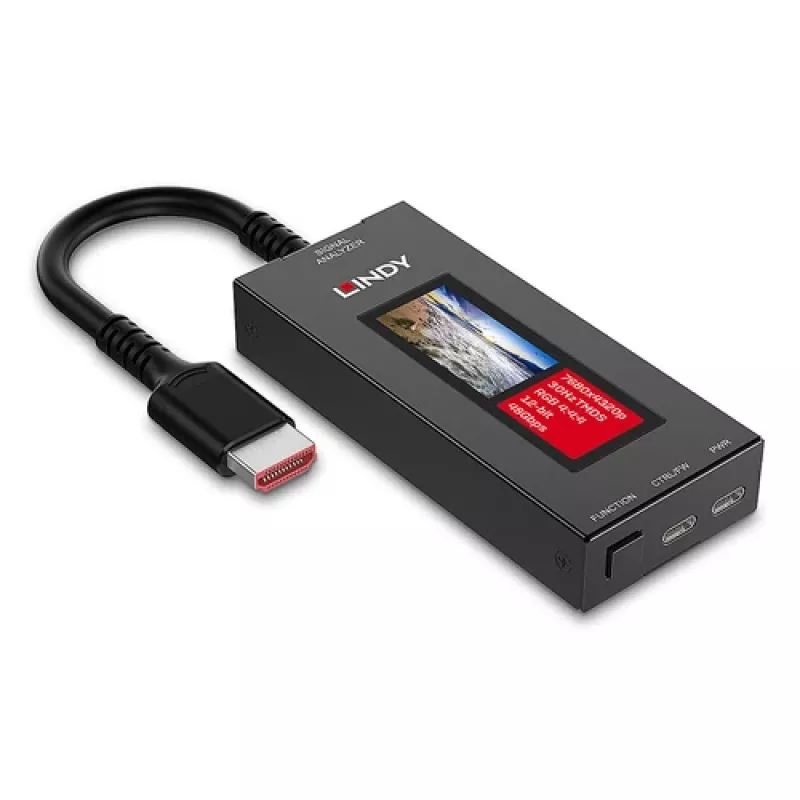

LINDY Analisador de sinal HDMI 8K60 com ecrã OLED para vídeo HDMI 2.1 8K

Professional HDMI 2.1 diagnostic tool with real-time OLED analysis of EDID, HDCP, resolution, HDR, CEC and audio infoframes, supporting 8K60 48Gbps signals for on-site troubleshooting.

Advantages

This analyzer offers real-time monitoring of essential HDMI signals, including EDID, HDCP, resolution, refresh rate, colour space, HDR, CEC, and audio infoframes. The integrated OLED display provides clear readouts directly on the device, making it easy to troubleshoot signal issues on site without needing a separate monitor.

Suitable for

• AV installers verifying HDMI cables and connections
• Home theatre enthusiasts optimizing 8K and 4K HDR setups
• Technicians diagnosing HDCP and EDID handshake problems
• Quality control in production and event environments

Key specifications

• HDMI standard: HDMI 2.1
• Maximum resolution: 8K@60Hz (7680x4320)
• Bandwidth: 48Gbps
• HDCP support: 1.4, 2.2 and 2.3
• HDR support: HDR10, HLG, Dolby Vision
• Colour formats: RGB 4:4:4, YCbCr 4:4:4, 4:2:2, 4:2:0
• Colour depth: 8-bit, 10-bit, 12-bit
• Audio pass-through: LPCM, Dolby Digital, DTS, Dolby Atmos, DTS:X
• Connectors: 1x HDMI Type A input, 1x HDMI Type A output
• Power: 5V DC via USB Micro-B
• OLED display with analysis functions
• Aluminium housing
• Firmware upgradeable via USB

Recommendations

For best results, ensure the USB Micro-B connection is used to power the analyser.
