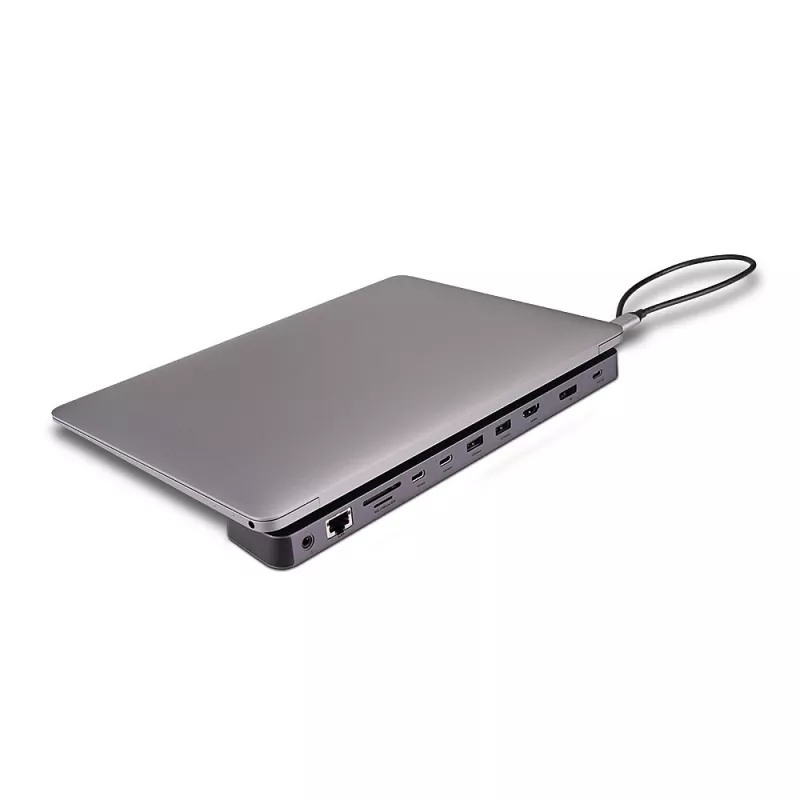

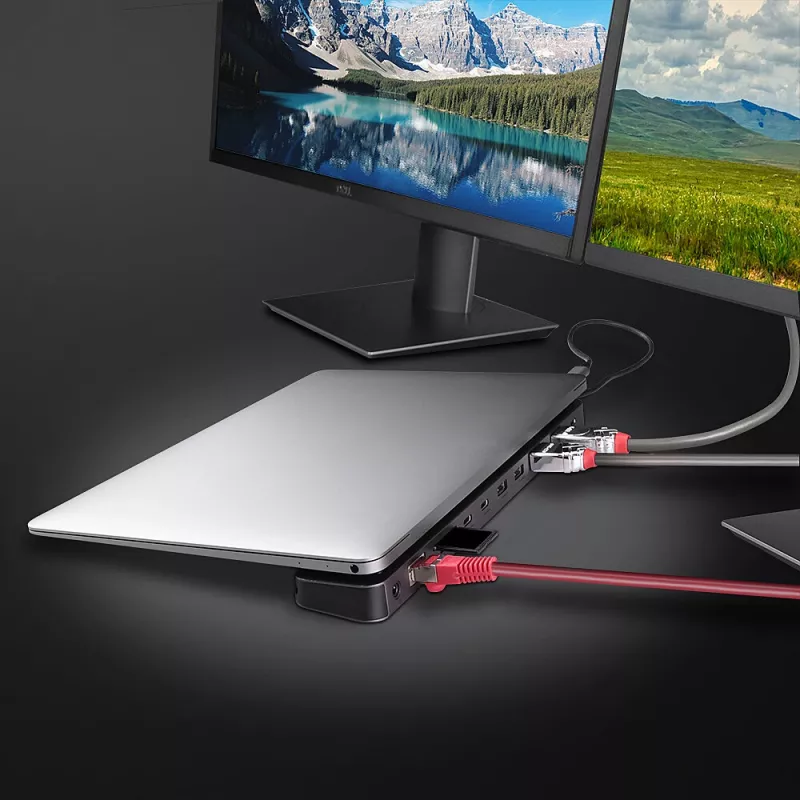

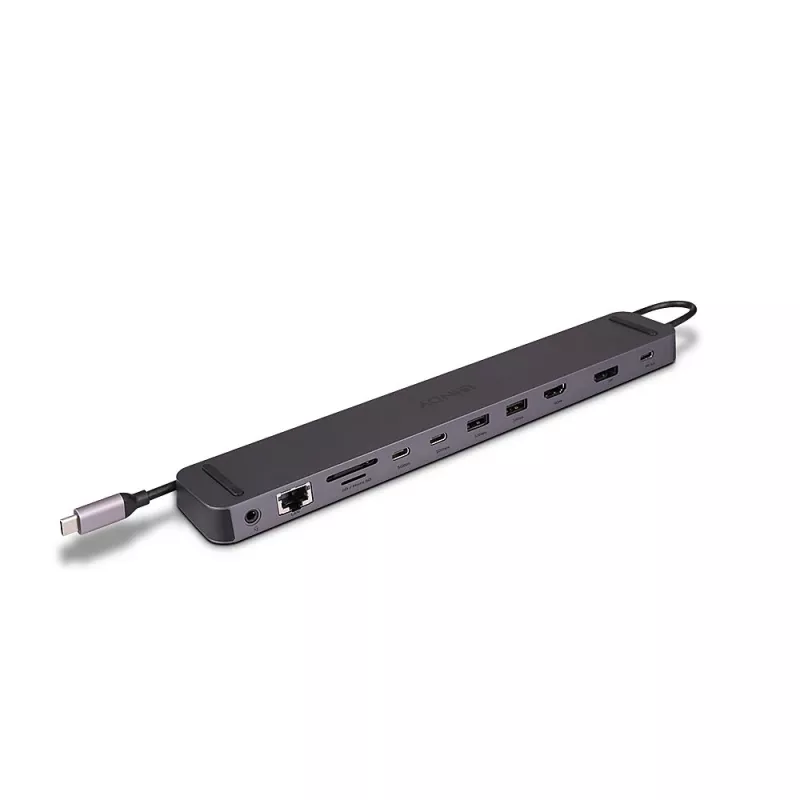

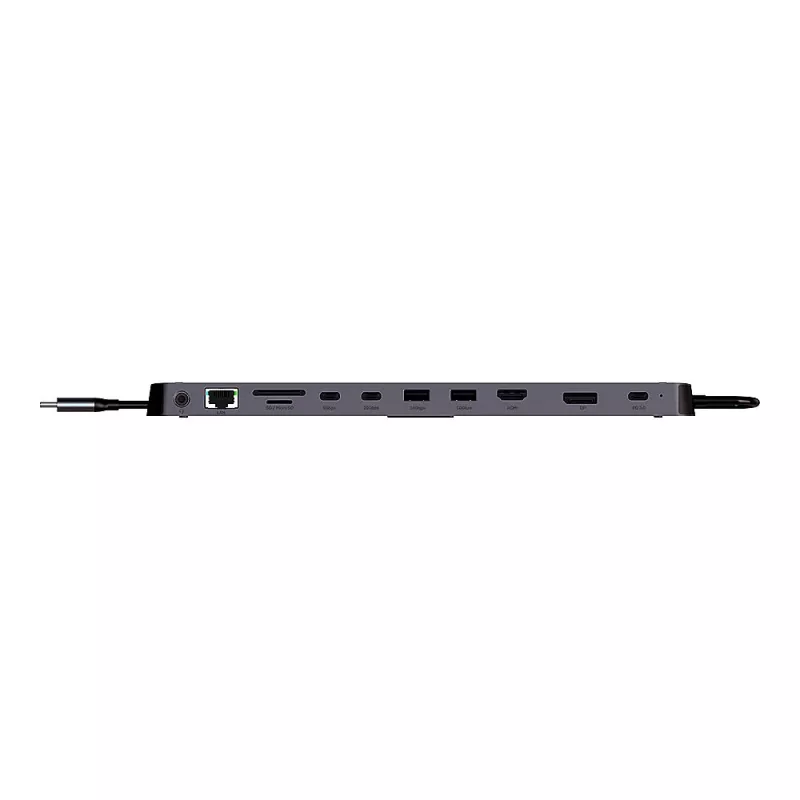

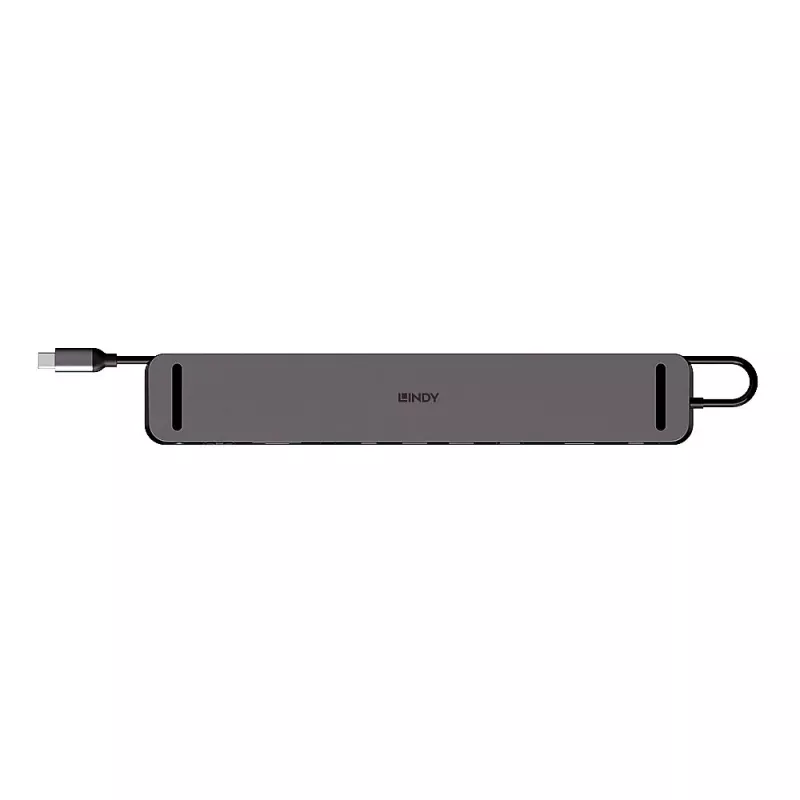

Lindy DST-Mini XT 810, docking station mini para portátil USB-C com ecrã único (8K) ou ecrã duplo (4K60) e carregamento pass-through de 100W

The Lindy DST-Mini XT 810 is a compact USB-C docking station that connects laptops, tablets and phones to multiple interfaces over a single cable. It supports a single 8K 30Hz DisplayPort or HDMI output, dual displays at 4K 60Hz, and higher frame rates such as 4K 120Hz when the host and display support those modes. The dock provides multiple high-speed ports — SuperSpeed USB Type-A and Type-C, Gigabit Ethernet, SD and Micro‑SD card readers, a combined 3.5 mm audio jack, DisplayPort and HDMI — and supports Power Delivery 3.0 pass-through charging up to 100 W (power adapter not included). The enclosure is aluminium with rubber feet and is designed to improve laptop ergonomics and heat dissipation.

Advantages

The DST-Mini XT 810 delivers versatile video output options including 8K single-display and 4K dual-display capability, plus support for 4K at higher refresh rates where available. Its mix of SuperSpeed 10 Gbps USB ports, Gigabit Ethernet and SD/Micro‑SD card slots enables fast data transfer and expanded storage. Built-in Power Delivery 3.0 (up to 100 W) charges a connected laptop while providing reliable docking connectivity in a compact, aluminium housing designed for improved laptop ventilation.

Suitable for

• Connecting laptops to high-resolution displays for video editing or content creation
• Dual-monitor productivity setups at 4K 60Hz
• Mobile work with tablets or phones that support DisplayPort Alt Mode
• Home or office networking via Gigabit Ethernet
• Expanding connectivity for peripherals using USB Type-A and Type-C ports

Key specifications

• Video outputs: 1× DisplayPort and 1× HDMI (single 8K 30Hz or dual 4K 60Hz; 4K 120Hz supported where applicable)
• USB: SuperSpeed 10 Gbps ports (Type-A and Type-C)
• Ethernet: Gigabit Ethernet (RJ‑45, up to 1000 Mbit/s)
• Card readers: SD and Micro‑SD slots
• Audio: 3.5 mm combined headphone/microphone jack
• Power Delivery: PD 3.0 pass-through up to 100 W (power supply not included); dock requires 15 W for its own operation
• Compatibility: Hosts with USB-C supporting DisplayPort 1.4 Alternate Mode (USB4, USB 3.2, Thunderbolt 3/4). macOS does not support MST for multi-stream transport
• Dimensions (approx.): 270 × 45 × 16 mm; Weight: 0.224 kg; Colour: Anthracite

How to use

Connect the dock to your computer using a single USB‑C cable that supports DisplayPort Alternate Mode. Attach displays to the DisplayPort and/or HDMI outputs as required, plug peripherals into the SuperSpeed USB Type‑A or Type‑C ports, insert SD or Micro‑SD cards into the card reader slots and connect a network cable to the Gigabit Ethernet port. If you need to charge the laptop while using the dock, connect the computer’s power adapter (or a suitable separate 100 W USB-C PD power supply) to the host so the dock can pass through power to the laptop. Ensure the host supports the necessary video modes for desired resolutions and refresh rates.

Recommendations

For dual 4K 60Hz output or 8K 30Hz operation, use a USB-C host that supports DisplayPort 1.4 Alternate Mode (USB4, USB 3.2 with DP Alt Mode or Thunderbolt 3/4). macOS hosts do not support MST, so check the operating system’s display capabilities before configuring multi-monitor setups. To ensure stable operation, use quality display cables and a suitable 100 W USB-C power adapter if you require laptop charging while the dock is under heavy load.
