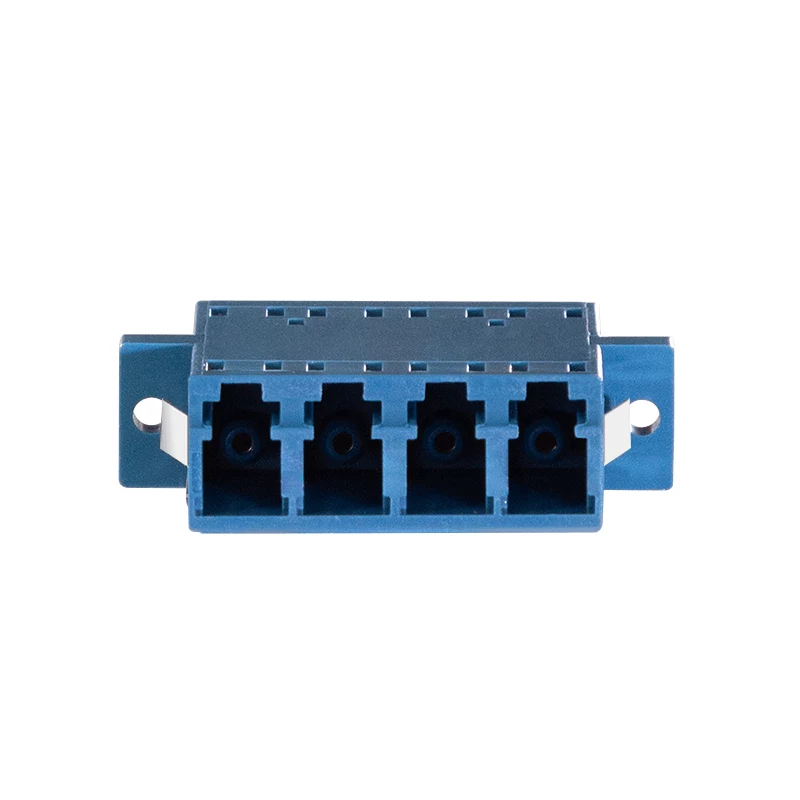

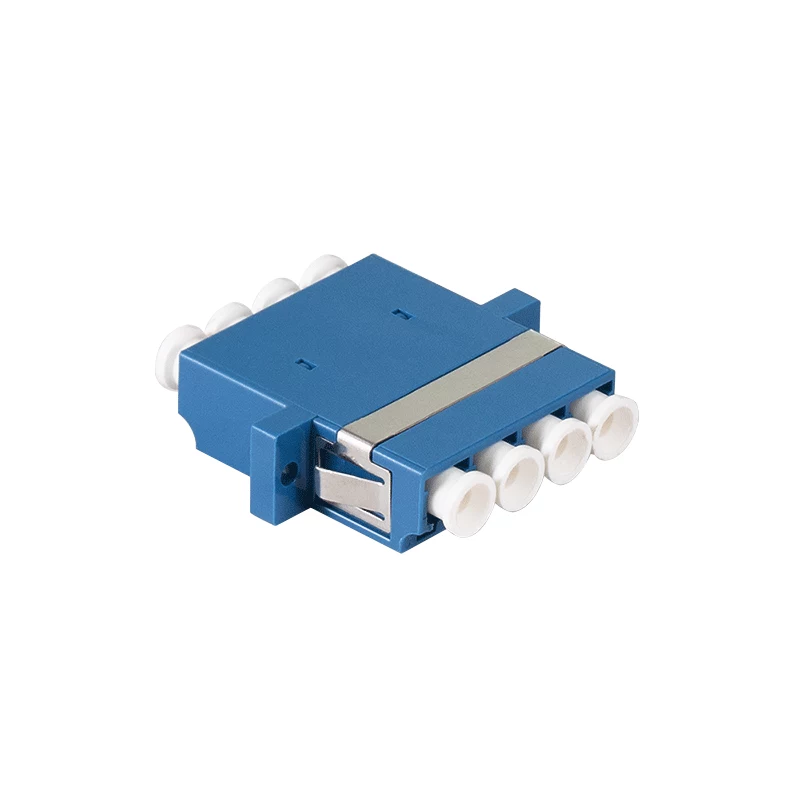

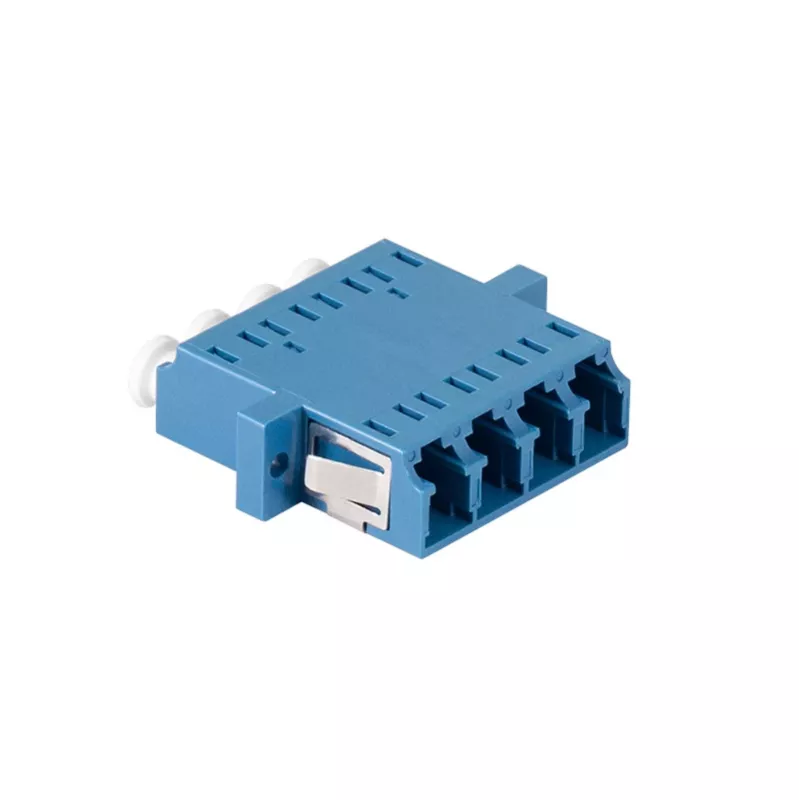

LogiLink adaptador de fibra ótica LC Quad, pack de 12, azul, montagem em flange, monomodo

Network technicians and installers working on fiber optic patch panels and wall outlets often need reliable, high-precision adapters that can be quickly mounted and provide stable connections. This LogiLink LC Quad adapter with flange is supplied in a convenient 12-piece pack, making it easy to keep spares on hand for large installations or maintenance tasks. The blue housing indicates single-mode compatibility, and the quad configuration offers four LC ports in a compact footprint that fits standard SC duplex cutouts.

Key specifications

• Connector type: LC
• Adapter configuration: Quad (2x duplex)
• Fiber mode: Single-mode (SM)
• Colour: Blue
• Mounting type: Flange (panel mount)

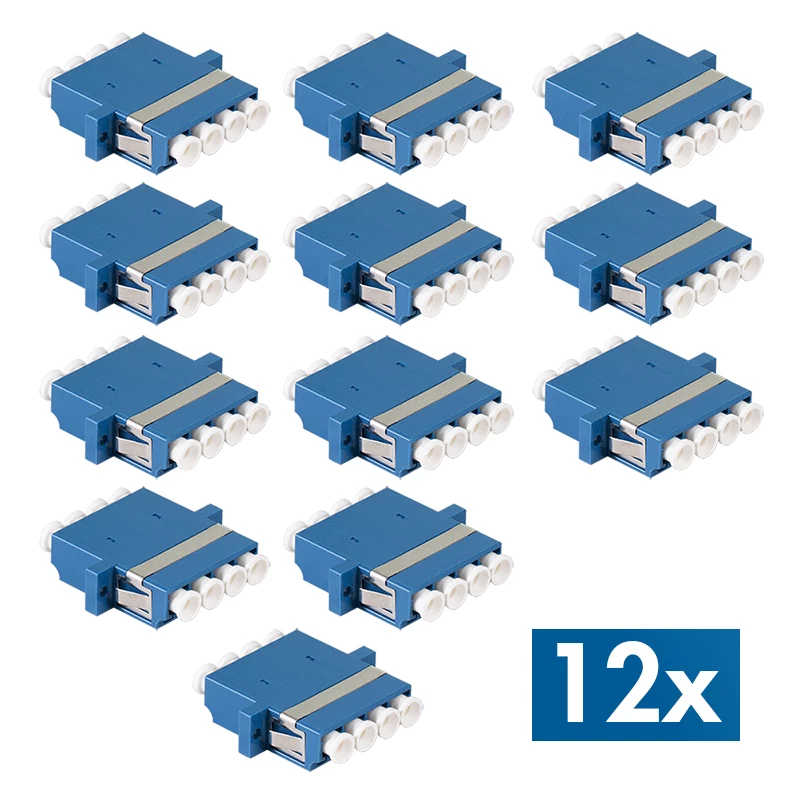

• Quantity per pack: 12 pieces
• Sleeve material: Zirconia ceramic
• Housing material: Plastic
• Insertion loss: ≤ 0.2 dB
• Return loss: ≥ 50 dB
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Durability: > 500 mating cycles
• Compliance: RoHS, REACH, IEC 61754-20
• Wavelength range: 1260nm - 1620nm
• Footprint: SC duplex compatible
• Dust caps: Included

Why choose it

These adapters are built for performance and longevity. The zirconia ceramic sleeves ensure precise alignment and low insertion loss, while the plastic housing offers durability without adding weight. The flange design allows secure mounting in panels, and the blue colour coding helps quickly identify single-mode connections. With a pack of 12, you get excellent value for bulk installations.

Ideal use cases

• Fiber optic patch panels in data centers
• Optical distribution frames (ODFs)
• Wall outlets in office buildings
• Telecommunications rooms
• Maintenance and replacement of existing adapters

Good to know

Each adapter includes dust caps to protect the ports when not in use. The quad design allows high-density connections without sacrificing accessibility. The adapters are compliant with RoHS and REACH, ensuring environmental safety, and meet IEC 61754-20 standards for reliable performance.
