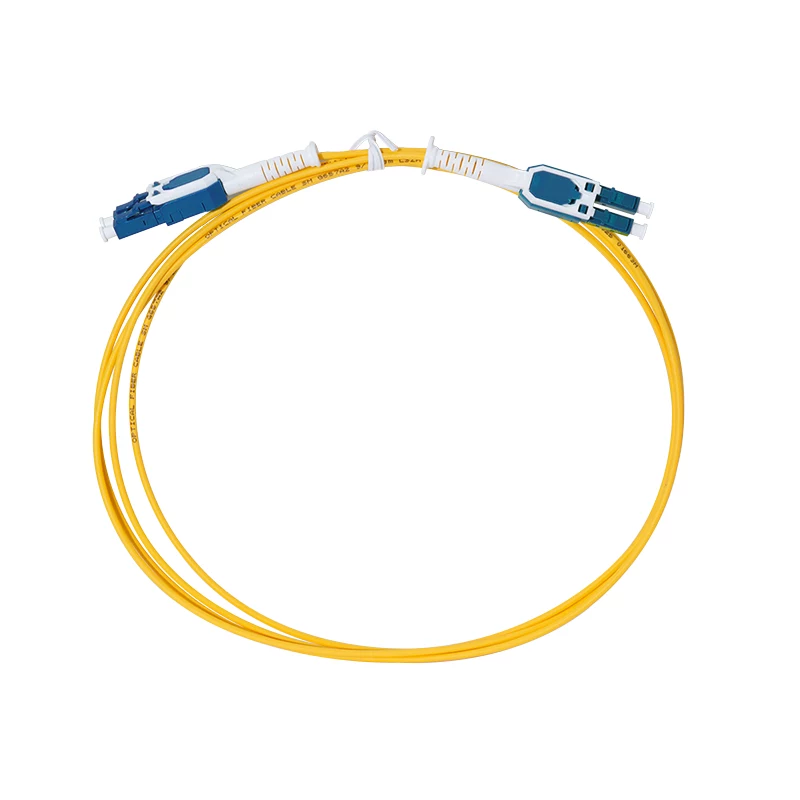

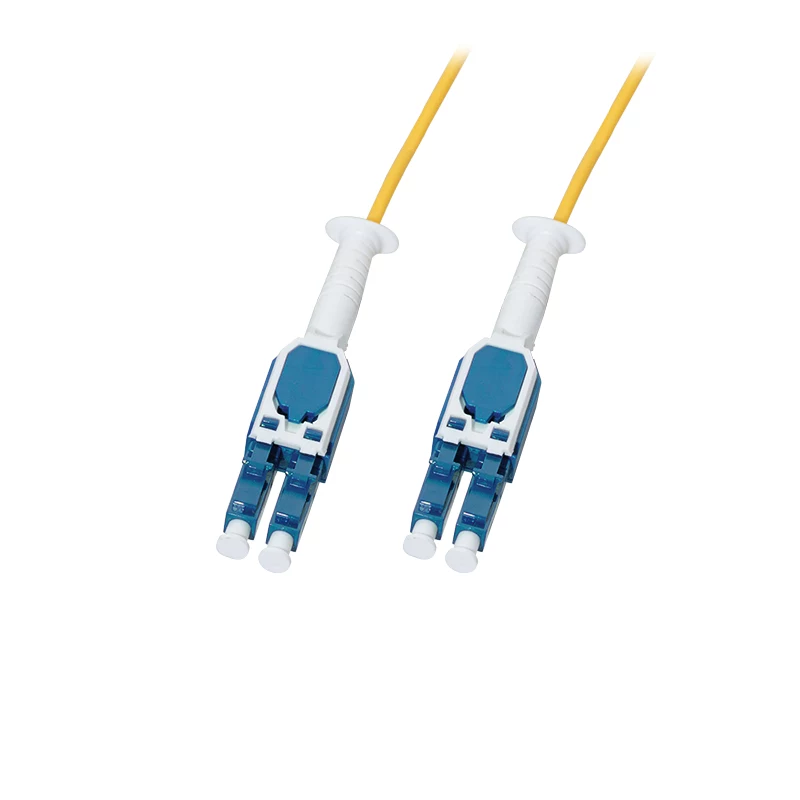

LogiLink Cabo de Rede de Fibra Ótica Uniboot Push-Pull LC-LC OS2, 5,0 m

Traditional duplex patch cords double the cable bulk in dense patching areas—this LogiLink Uniboot cord halves it. Two OS2 single-mode fibers run through a single 2.0 mm round LSZH jacket, while the integrated push-pull tab lets you insert or remove the connector with one hand, even in fully populated panels. No separate clips to squeeze, no struggling between adjacent ports.

Highlights

• Uniboot duplex construction: two fibers in one slim 2.0 mm cable for improved airflow and easier cable management.

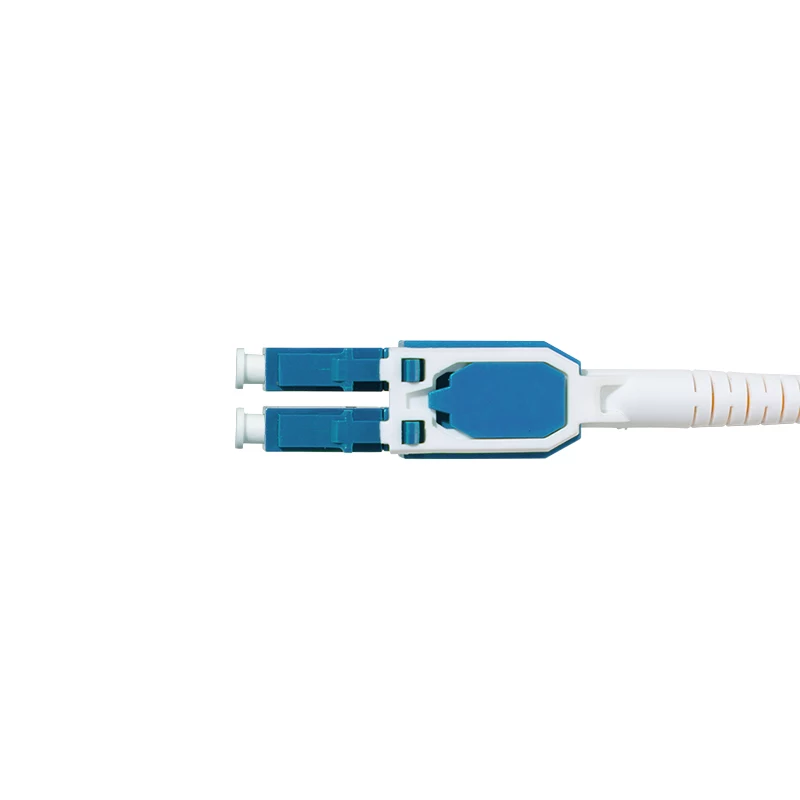

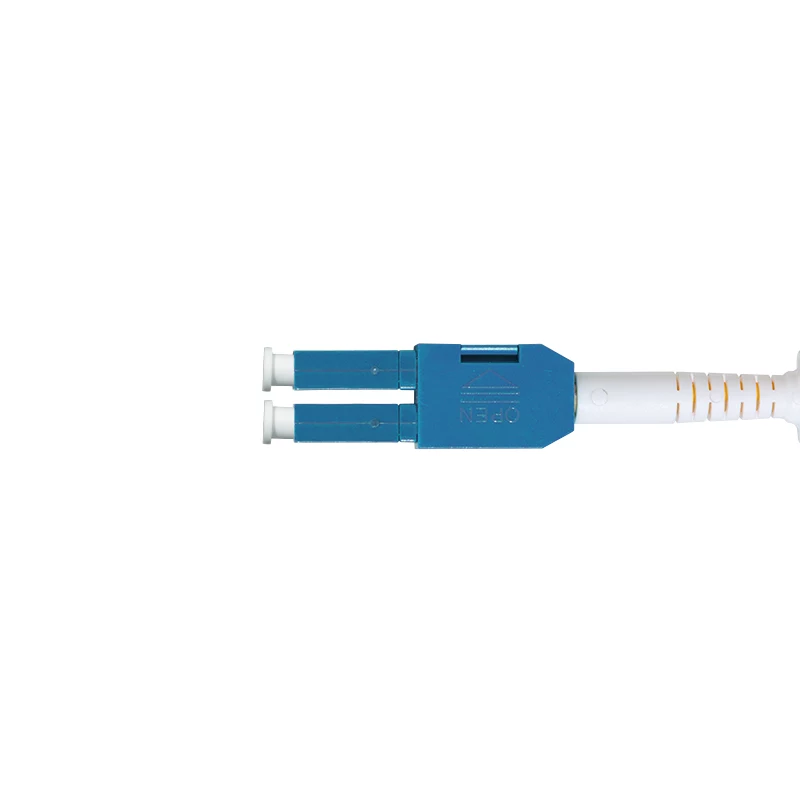

• Push-pull tab mechanism: quick, secure connection without pressing individual clips—ideal for high-density patch fields.
• OS2 single-mode fiber (9/125 µm): supports high-speed transmission with minimal signal loss over long distances.
• Low insertion loss ≤ 0.3 dB and high return loss ≥ 50 dB: ensures excellent signal integrity and network performance.
• LSZH (Low Smoke Zero Halogen) yellow jacket: flame-retardant and low-smoke, meeting strict safety regulations for indoor use.
• Zirconia ceramic ferrules: provide precise fiber alignment and durability for repeated mating cycles.
• Straight-through (A-B) polarity: simplifies deployment in standard duplex links.
• Compliant with RoHS, REACH, IEC 61754-20, and TIA/EIA-604-10.

In daily use

In a data center or enterprise network, this 5-meter patch cord connects LC ports on switches, patch panels, or transceivers. The push-pull tab makes moves, adds, and changes faster and reduces the risk of damaging adjacent connectors. The yellow LSZH jacket is easy to identify in cable trays and safe for enclosed spaces where smoke and toxic fumes are a concern. With OS2 fiber, it supports 1G, 10G, and higher speeds over long distances, making it a reliable choice for backbone links and high-bandwidth applications.

Full specifications

• Connector Type (End 1): LC
• Connector Type (End 2): LC
• Fiber Mode: Single-mode
• Fiber Type: OS2
• Cable Length: 5.0 m
• Cable Construction: Uniboot Duplex
• Connector Feature: Push-Pull Tab
• Core/Cladding Diameter: 9/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Cable Diameter: 2.0 mm
• Ferrule Material: Zirconia Ceramic
• Polarity: Straight-through (A-B)
• Compliance: RoHS, REACH, IEC 61754-20, TIA/EIA-604-10
• Application: Data Center, LAN, SAN, Telecommunication Networks
• Number of Fibers: 2 (Duplex)

Final note

For high-density fiber patching where space and accessibility are critical, this uniboot push-pull cord delivers a clean, reliable solution without compromising performance.
