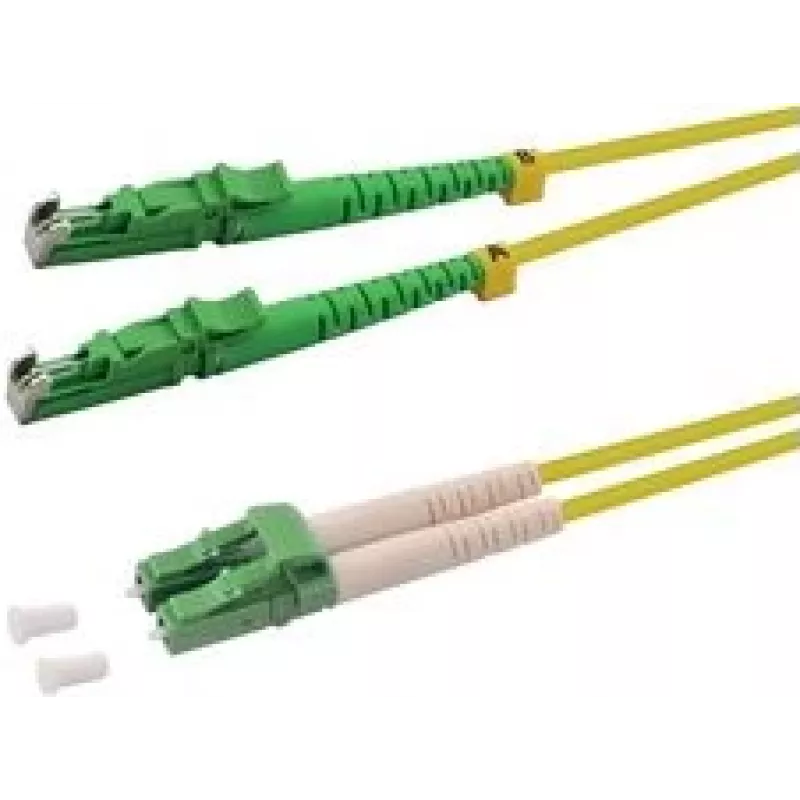

LogiLink Cabo Patch de Fibra Ótica, 2x LSH-Duplex, OS2, 5,0 m, Ficha LSH-Duplex - Ficha LSH-Duplex, Monomodo, 1 unidade (FP0EE05)

The LogiLink FP0EE05 is a high-quality fiber optic patch cable designed for reliable singlemode transmission. With a length of 5.0 meters and duplex LSH (E2000) connectors on both ends, this OS2-rated cable ensures low insertion loss and high return loss, making it ideal for data centers, telecommunications, LAN, SAN, and FTTx applications.

Advantages

This patch cable offers excellent performance with insertion loss ≤ 0.3 dB and return loss ≥ 50 dB. The LSZH (Low Smoke Zero Halogen) jacket provides safety in enclosed spaces, while the yellow color ensures easy identification. The duplex design supports bidirectional communication over two fibers.

Suitable for

• Data centers and server rooms
• Telecommunications networks
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• FTTx installations

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Singlemode
• Fiber Class: OS2
• Connector Type A: LSH-Duplex (E2000-Duplex)
• Connector Type B: LSH-Duplex (E2000-Duplex)
• Cable Length: 5.0 m
• Number of Fibers: 2 (Duplex)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Diameter: 3.0 mm
• Jacket Color: Yellow
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50 dB
• Polishing Type: UPC
• Operating Wavelengths: 1310 nm, 1550 nm
• Attenuation @ 1310nm: ≤ 0.4 dB/km
• Attenuation @ 1550nm: ≤ 0.3 dB/km
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard SFP modules and patch panels.
