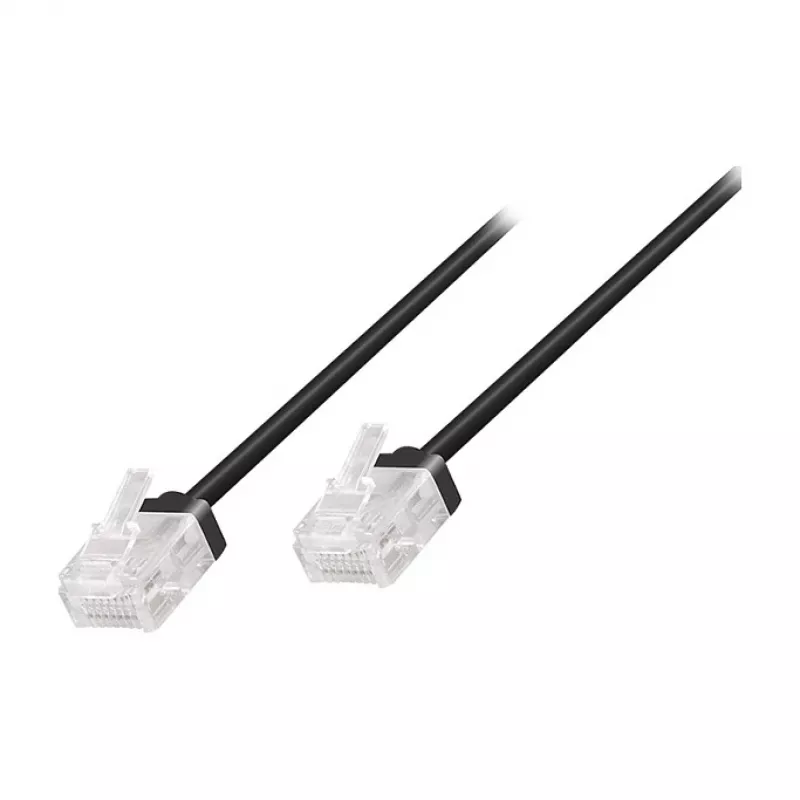

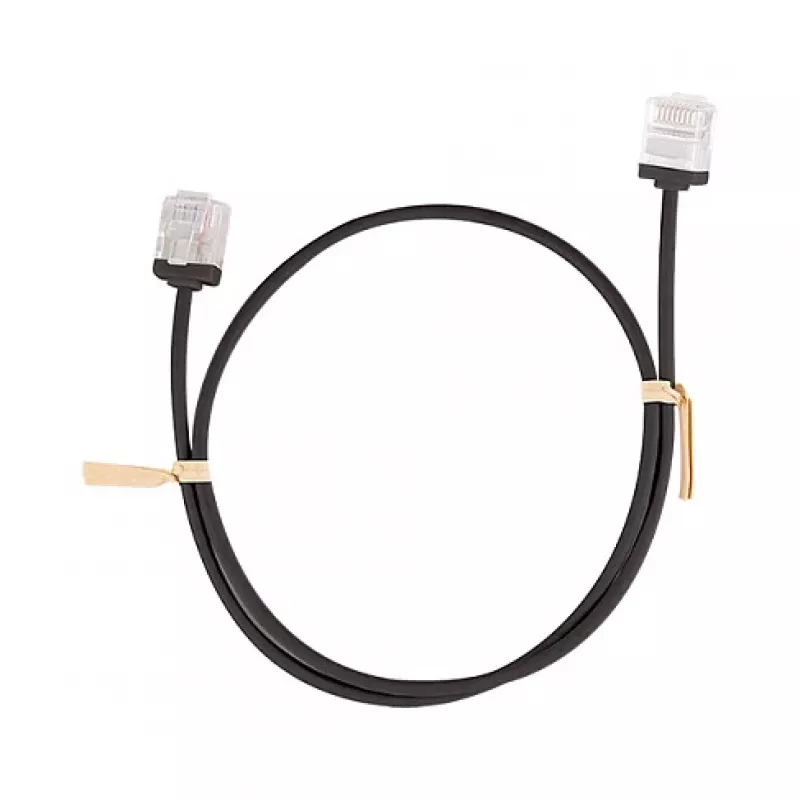

LogiLink Cat.6A U/UTP cabo patch Slim High-Flex, 1,5 m, preto

The LogiLink CQ3043U stands out with its ultra-slim 3.6 mm profile and high-flex LSZH jacket, making it far easier to route through dense cable management than standard Cat.6A patch leads. Despite the reduced diameter, it delivers full 10 Gigabit performance up to 500 MHz, so you sacrifice nothing in speed. The stranded copper conductors and snagless molded boots ensure it survives frequent re-patching in offices, data centers, or home setups.

Highlights

• Cat.6A performance with 10 Gbps data transfer rate
• Ultra-slim 3.6 mm outer diameter for high-density installations
• High-flex LSZH jacket for easy bending and halogen-free safety
• Gold-plated RJ45 connectors with snagless molded boots
• Stranded copper conductors (AWG 30/7) for durability
• Supports PoE and PoE+ (IEEE 802.3af/at)

In daily use

This 1.5-meter patch cable is ideal for connecting servers, switches, patch panels, or workstations where space is tight. The slim design reduces airflow blockage in racks and makes it simple to close cabinet doors. The high-flex jacket remains pliable even at low temperatures, and the snagless boot prevents the locking tab from catching when pulling the cable through bundles. The black color blends discreetly into most environments.

Full specifications

• Category: Cat.6A (Class EA)
• Shielding: U/UTP (Unshielded Twisted Pair)
• Length: 1.5 m
• Color: Black
• Conductor: Stranded copper, AWG 30/7
• Jacket: LSZH (Low Smoke Zero Halogen)
• Connectors: RJ45 male to RJ45 male, 8P8C
• Connector plating: Gold, 50 µm
• Boot type: Molded, snagless
• Wiring: TIA/EIA 568B
• Bandwidth: Up to 500 MHz
• Data rate: 10GBASE-T (10 Gbps)
• Outer diameter: Approx. 3.6 mm
• PoE support: PoE, PoE+ (IEEE 802.3af/at)
• Operating temperature: -20°C to +60°C
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA 568-C.2
• Halogen free: Yes

Final note

The LogiLink CQ3043U proves that slim doesn't mean weak. It combines high-speed Cat.6A performance with a flexible, space-saving design, making it a smart choice for modern network infrastructures.
