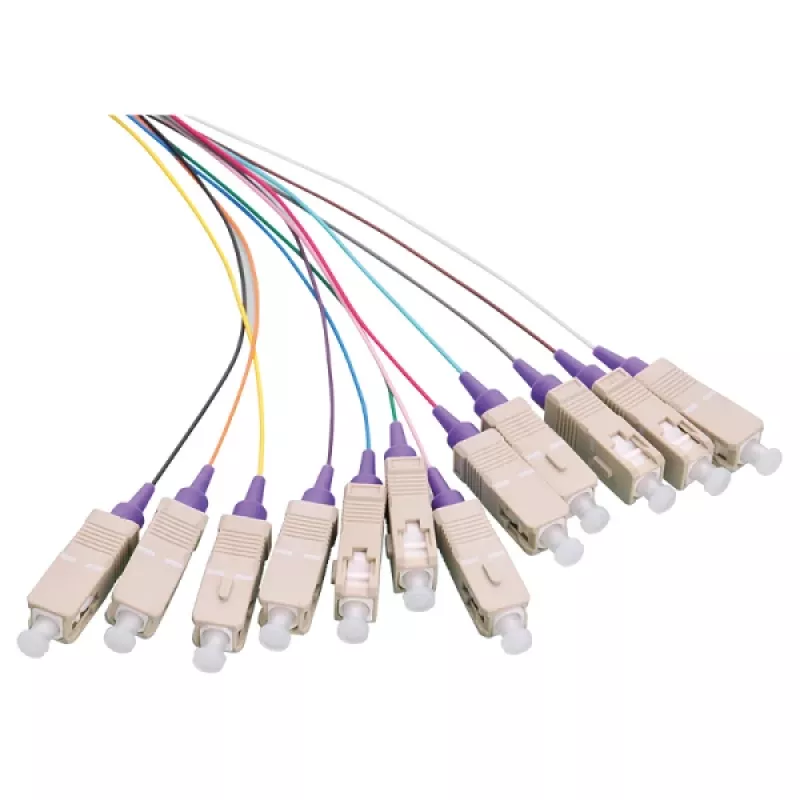

LOGILINK Conjunto de pigtails de fibra 12 x SC OM4 2m, colorido, conector violeta

For installers and network engineers who need a dependable, factory-terminated fiber solution without the hassle of field polishing, this LOGILINK pigtail set delivers twelve 2-meter OM4 multimode pigtails with SC connectors in a single package. Each pigtail features a violet connector body, instantly identifying it as OM4 per TIA/EIA-598-C color coding, and a 50/125 µm core/cladding diameter optimized for high-bandwidth multimode links. The open (unterminated) ends allow direct splicing into backbone or horizontal cabling, making this set ideal for building out fiber distribution frames, patch panels, or wall outlets in enterprise and data center environments.

Highlights

• 12 factory-terminated OM4 multimode pigtails, each 2 meters long
• SC connector on one end, open/unterminated on the other for splicing
• Violet connector color for instant OM4 identification
• Low insertion loss ≤ 0.3 dB and return loss ≥ 30 dB ensure reliable signal integrity
• LSZH (Low Smoke Zero Halogen) jacket for enhanced fire safety
• Supports 850 nm and 1300 nm wavelengths with high modal bandwidth
• Compliant with RoHS and REACH environmental standards

In daily use

These pigtails streamline fiber termination in high-density installations. The SC connectors provide a secure push-pull mating mechanism, while the 0.9 mm tight-buffered pigtail diameter allows easy routing within splice trays and enclosures. The OM4 fiber supports 10G, 40G, and 100G Ethernet over multimode distances, making it future-ready for bandwidth-hungry applications.

Full specifications

• Product Type: Fiber Optic Pigtail Set
• Fiber Type: Multimode OM4
• Core/Cladding Diameter: 50/125 µm
• Number of Fibers: 12
• Connector Type (End 1): SC
• Connector Type (End 2): Unterminated (Open)
• Connector Color: Violet
• Cable Length: 2 meters
• Cable Jacket Material: LSZH
• Cable Diameter (Pigtail): 0.9 mm
• Insertion Loss (Max.): ≤ 0.3 dB
• Return Loss (Min.): ≥ 30 dB
• Polishing Type: PC (Physical Contact)
• Operating Wavelengths: 850 nm, 1300 nm
• Bandwidth (850nm): 4700 MHz·km (OFL) / 3500 MHz·km (EMB)
• Bandwidth (1300nm): 500 MHz·km (OFL)
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Final note

Factory-terminated and tested, this pigtail set eliminates the variability of field connectors, ensuring consistent low-loss performance across all twelve fibers. Ideal for contractors and system integrators who value speed and reliability.
