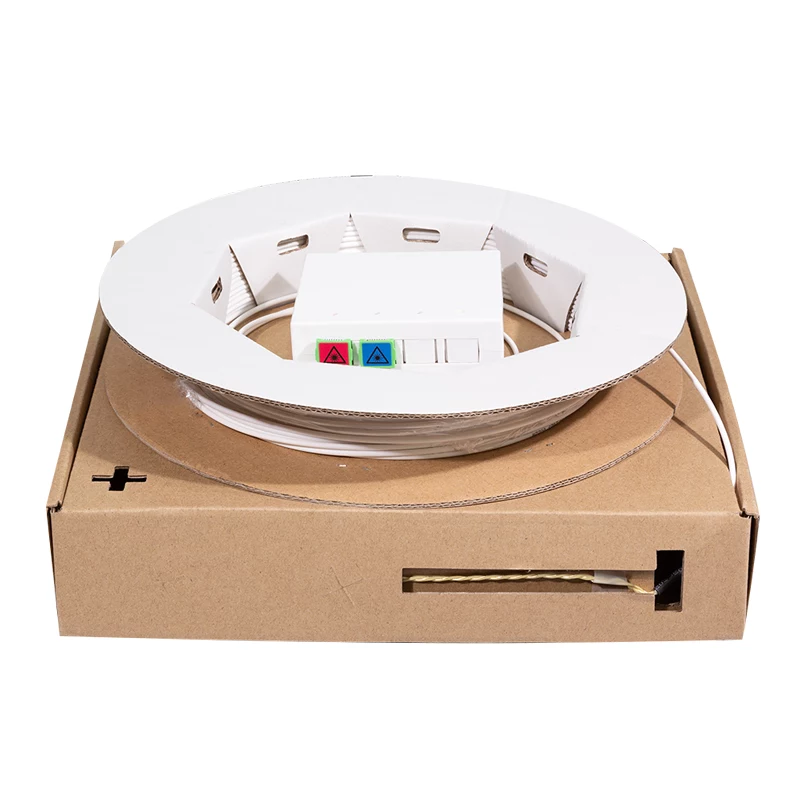

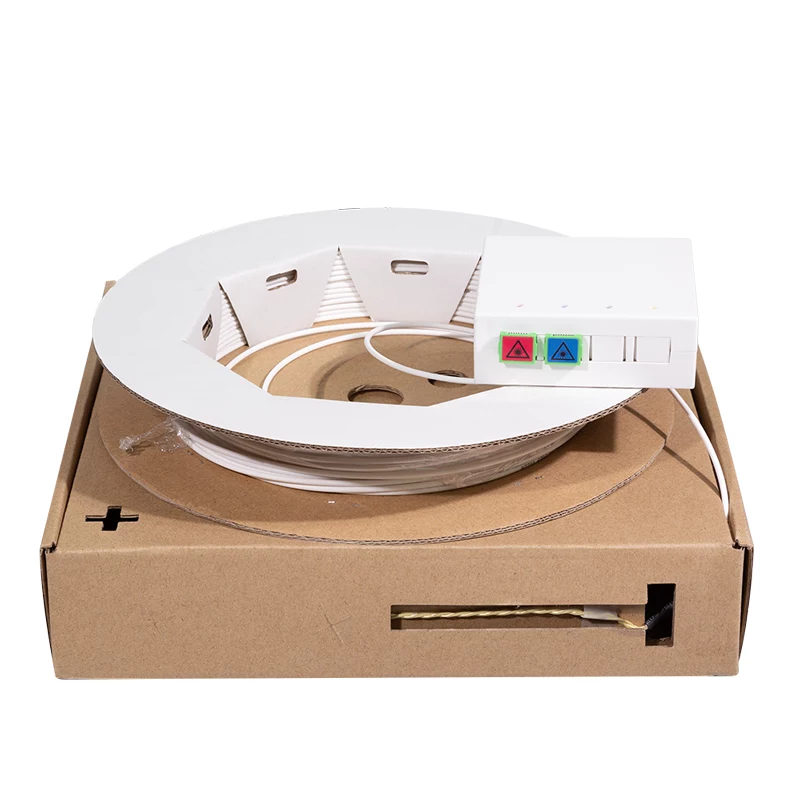

LogiLink FB2SC20 cabo de patch de fibra ótica monomodo OS2 SC/APC duplex 20 m branco

The LogiLink FB2SC20 is a high-quality fiber optic patch cable designed for reliable singlemode connections in FTTH and indoor network installations. With a length of 20 meters and duplex SC/APC connectors, this cable ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

This cable features LSZH (Low Smoke Zero Halogen) jacket material, making it safe for indoor use by reducing toxic fumes in case of fire. The APC polish provides superior return loss performance, ideal for high-speed data transmission.

Suitable for

• FTTH (Fiber to the Home) connection boxes
• Indoor fiber optic network installations
• Singlemode OS2 applications requiring duplex connectivity

Key specifications

• Fiber Mode: Singlemode OS2
• Connector Type: 2 x SC/APC duplex
• Cable Length: 20 m
• Core/Cladding: 9/125 µm
• Jacket Material: LSZH, White
• Insertion Loss: ≤ 0.2 dB
• Return Loss: ≥ 60 dB
• Operating Temperature: -20°C to 70°C

Recommendations

For optimal performance, use with compatible SC/APC patch panels and FTTH termination boxes. Ensure proper handling to maintain low insertion loss.
