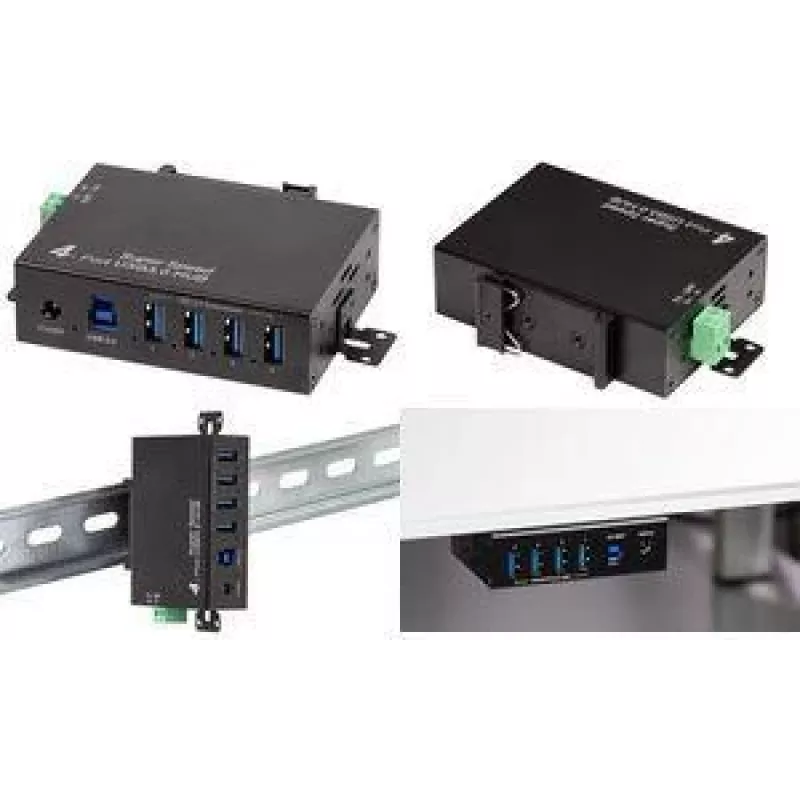

LogiLink hub USB 3.0 Industrial 4 portas em metal com montagem em calha DIN

Industrial environments demand reliable connectivity under harsh conditions. The LogiLink UA0443 USB 3.0 hub answers that call with a rugged metal housing, DIN rail mounting, and wide operating temperature range, ensuring stable performance in factories, automation systems, and field installations.

Who is it for

Engineers, system integrators, and technicians who need to expand USB connectivity in industrial PCs, control cabinets, or machinery. It suits applications where vibration, temperature extremes, or electrical noise are present, and where a secure, permanent installation is required.

Main features

• 4 downstream USB 3.0 Type-A ports with SuperSpeed 5 Gbps data transfer
• Industrial-grade metal case for durability and heat dissipation
• DIN rail and wall mount options for flexible installation
• Wide 9-24V DC terminal block power input for industrial power systems
• Per-port overcurrent and ESD protection to safeguard connected devices
• Screw-lock upstream USB Type-B port prevents accidental disconnection
• LED indicators for power and port status
• Backward compatible with USB 2.0 and 1.1 devices
• Plug and play – no drivers required on Windows, macOS, or Linux

Specifications

• USB Standard: USB 3.0 (SuperSpeed), backward compatible with USB 2.0/1.1
• Upstream: 1 x USB Type-B with screw-lock mechanism
• Downstream: 4 x USB Type-A
• Data transfer rate: up to 5 Gbps
• Housing material: Industrial metal
• Mounting: DIN rail, wall mount
• Power input: DC 9-24V via terminal block
• Overcurrent protection: per port
• ESD protection: yes
• Operating temperature: -40°C to 85°C
• Operating humidity: 5% to 95% RH (non-condensing)
• LED indicators: power, port status
• Chipset: VIA VL812
• OS compatibility: Windows, macOS, Linux
• Colour: black

Tips

For DIN rail installations, ensure the power supply matches the 9-24V DC range and use appropriate wire gauges for the terminal block. The screw-lock USB cable (not included) is recommended for vibration-prone environments. When connecting high-power devices, consider an external powered USB hub configuration.
