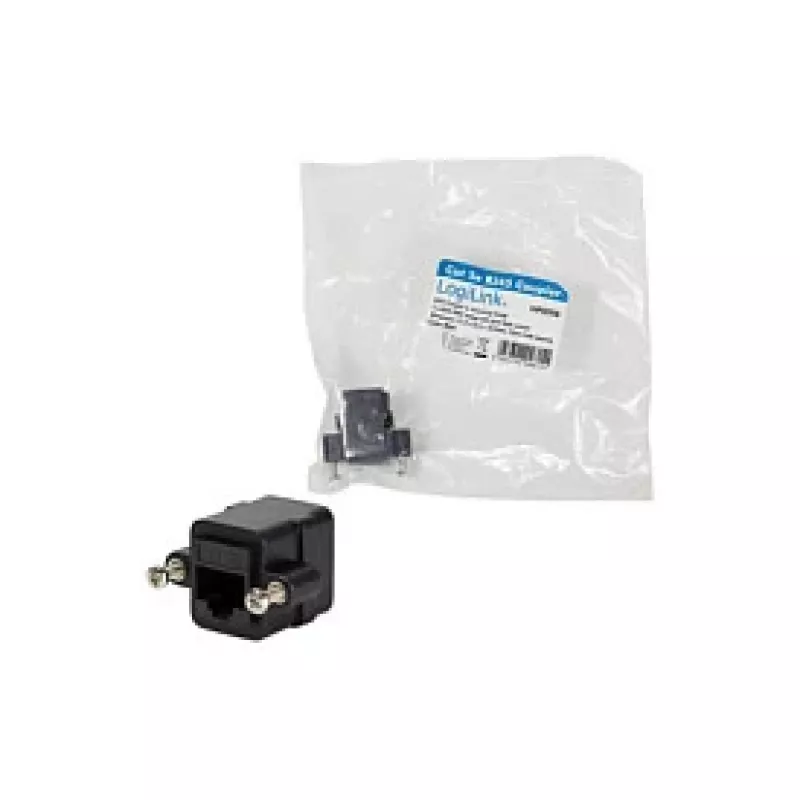

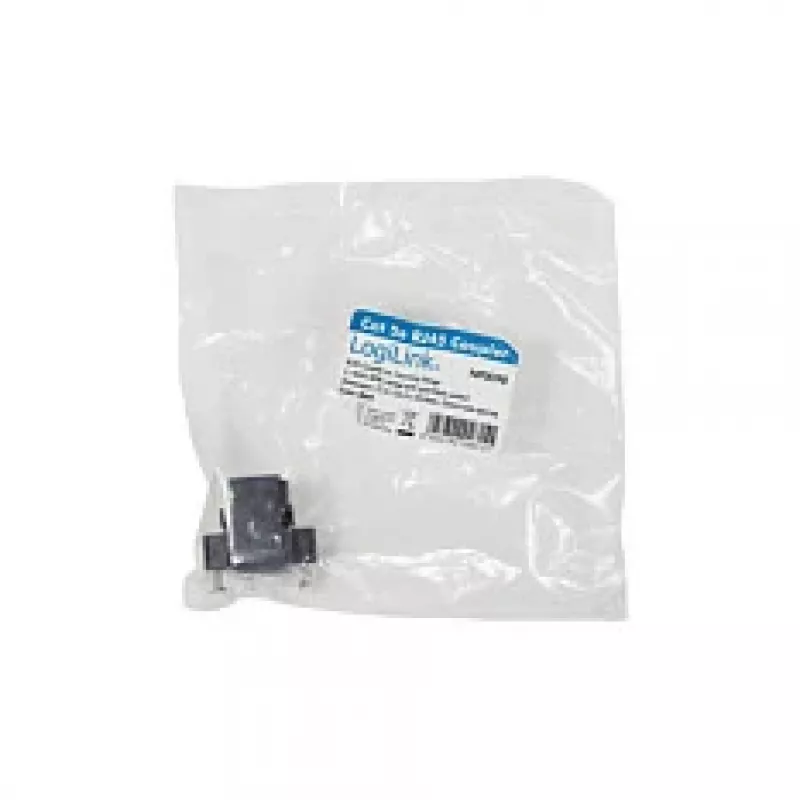

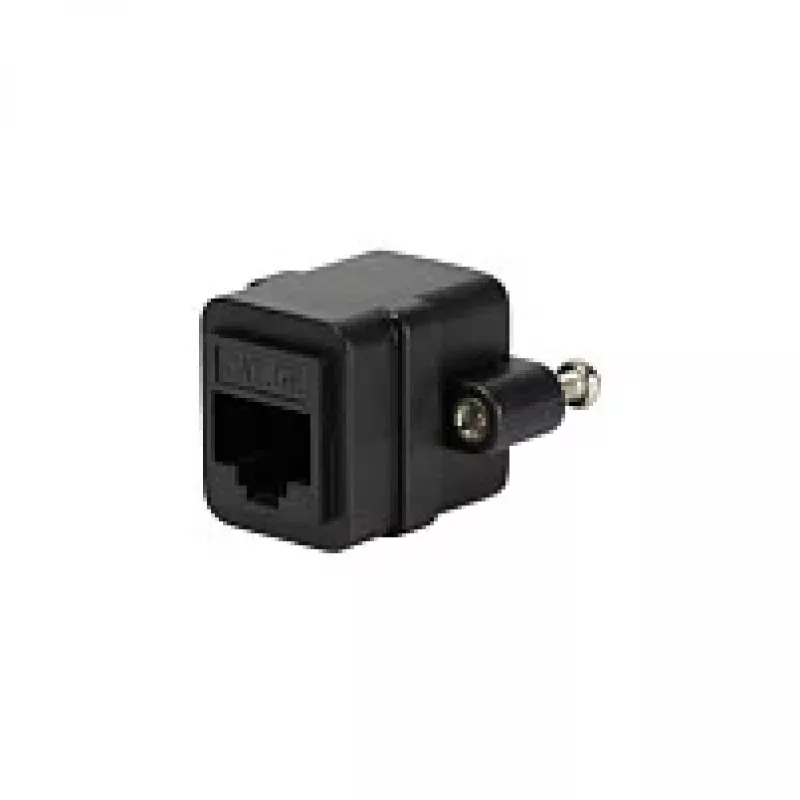

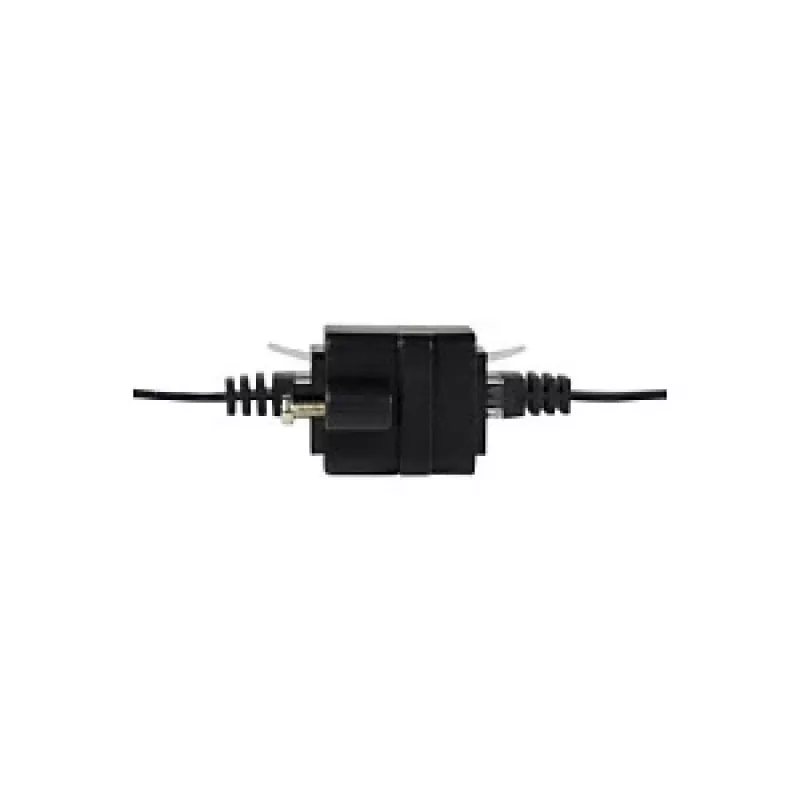

LOGILINK NP0098 Acoplador RJ45 com Flange de Montagem, 2x Conector Fêmea RJ45, Cat.5e UTP, Preto

Most inline couplers end up dangling behind furniture or getting lost in cable clutter. The LOGILINK NP0098 changes that with an integrated mounting flange, turning a simple Cat.5e joiner into a fixed, panel-ready network access point. Screw it into a wall plate, patch panel, or equipment enclosure and you get a stable, serviceable junction that stays exactly where you need it.

Highlights

• Flange mount design for secure installation in panels, wall plates, or enclosures
• Two RJ45 female sockets wired straight-through (1:1) for transparent signal pass-through
• Cat.5e UTP performance supports Gigabit Ethernet up to 1000 Mbps
• Gold-plated contacts resist corrosion and maintain reliable conductivity over time
• Durable ABS housing withstands daily handling and repeated insertions
• Compliant with ISO/IEC 11801, EN 50173, and TIA/EIA 568-C.2 standards

In daily use

Mount this coupler wherever you need a fixed network access point. The flange accepts standard screws, so it stays put in a wall outlet, floor box, or rack panel. Because it is unshielded (UTP), it is ideal for typical office and home environments where electromagnetic interference is low. The straight-through wiring ensures that every pin on one side connects to the same pin on the other, so there is no crossover or signal alteration. Whether you are extending a patch cable, creating a custom patch panel, or adding a service point in a wall plate, the NP0098 delivers a clean, professional result.

Full specifications

• Connector type: RJ45
• Number of ports: 2
• Connector gender: Female to Female (Jack to Jack)
• Category rating: Cat.5e (Category 5e)
• Shielding type: UTP (Unshielded Twisted Pair)
• Mounting type: Flange Mount / Panel Mount
• Data transfer rate: Up to 1000 Mbps (Gigabit Ethernet compatible)
• Compatibility: 10BASE-T, 100BASE-TX, 1000BASE-T Ethernet
• Wiring scheme: Straight-through (1:1)
• Housing material: ABS Plastic
• Contact plating: Gold-plated contacts
• Colour: Black
• Operating temperature: -10°C to +50°C
• Storage temperature: -20°C to +60°C
• Humidity: 10% to 90% RH (non-condensing)
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA 568-C.2
• Application: Network cable extension, custom patch panels, wall plates

Final note

The NP0098 is a practical solution for creating permanent, reliable network junctions in any structured cabling environment.
