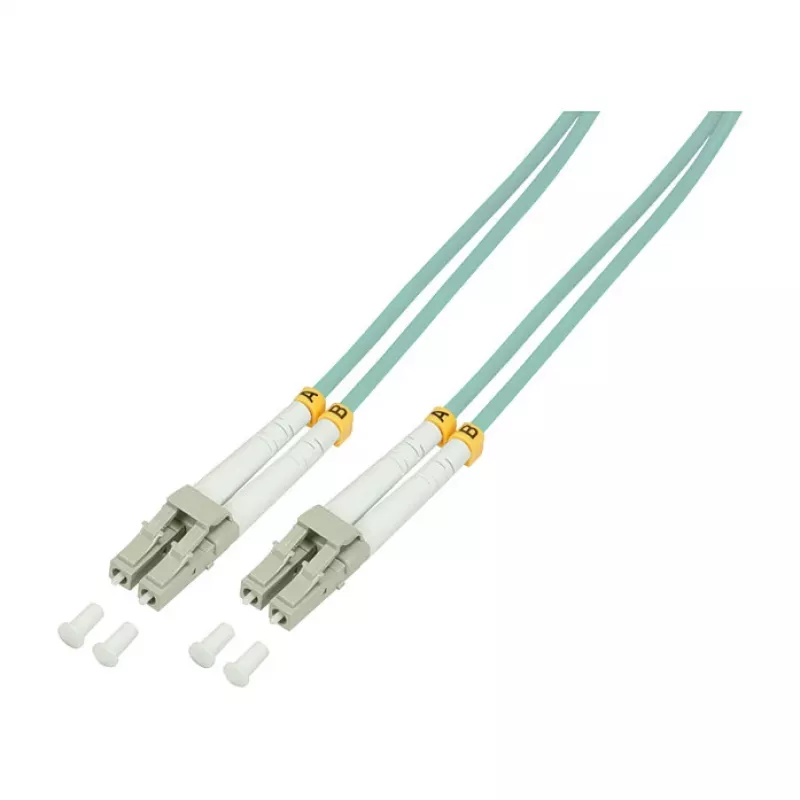

LogiLink OM3 LC/LC Cabo de rede de fibra ótica multimodo duplex 20m azul-água

Fiber optic patch cable engineered for high-speed 10 Gigabit Ethernet over longer distances. The OM3 multimode core with 50/125 µm diameter supports bandwidth up to 1500 MHz·km at 850 nm, making it ideal for backbone and data center connections. Duplex LC connectors on both ends ensure reliable, low-loss links with insertion loss below 0.3 dB. The aqua LSZH jacket is halogen-free, producing minimal smoke and toxic fumes in case of fire, enhancing safety in enclosed spaces.

Advantages

Laser-optimized OM3 fiber delivers extended reach for 10GbE up to 300 meters, exceeding standard OM2 performance. The duplex configuration supports bidirectional communication, essential for networking equipment. LC connectors feature a push-pull latching mechanism for secure, easy connections in high-density patch panels. The LSZH jacket meets strict fire safety regulations, making it suitable for public buildings, offices, and industrial environments.

Suitable for

• 10 Gigabit Ethernet backbone links in data centers and server rooms
• High-speed storage area networks (SAN) and network-attached storage (NAS)
• Fiber-to-the-desk applications in enterprise networks
• Connecting switches, routers, and media converters with LC ports
• Environments requiring low-smoke, zero-halogen cabling

Key specifications

• Fiber type: OM3 multimode, 50/125 µm core/cladding
• Connectors: LC duplex on both ends (IEC 61754-20, TIA/EIA 604-10)
• Length: 20 meters
• Jacket: LSZH, aqua color, 3.0 mm diameter
• Bandwidth: 1500 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Insertion loss: < 0.3 dB; return loss: > 30 dB
• Operating temperature: -20°C to 70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, pair with OM3-compatible transceivers and avoid tight bends below the minimum bend radius. Test each link with a fiber optic power meter and light source to verify loss budgets. Store unused connectors with dust caps to prevent contamination.
