LogiLink PDU1601 Unidade de Distribuição de Energia para Rack 19 polegadas 1U, 16 Tomadas Schuko, Proteção contra Sobretensão, 16A, Cabo de 2m, Preto

16 Schuko outlets in a single 1U rack unit, each protected by a 16 A surge protector and a master illuminated switch — this is the LogiLink PDU1601, a 19-inch power distribution unit engineered for dense server cabinets and professional AV racks across Germany, the Netherlands, Austria, and Luxembourg.

Overview

The LogiLink PDU1601 is a rack-mountable power strip designed to deliver reliable power distribution in 19-inch enclosures. With 16 CEE 7/3 Schuko sockets arranged horizontally, it provides ample connectivity for servers, network switches, storage arrays, and other critical equipment. The unit features a built-in surge protection circuit to safeguard connected devices from voltage spikes and transients, and an illuminated on/off switch for convenient control of the entire strip. Its aluminum housing ensures durability and efficient heat dissipation, while the 2-meter H05VV-F 3G1.5mm² cable with a CEE 7/7 Schuko plug offers flexible placement within the rack. The PDU1601 operates at 230 V AC / 50 Hz and supports a maximum load of 16 A (3680 W), making it suitable for high-density power requirements.

What stands out

• 16 Schuko (CEE 7/3) outlets in a compact 1U form factor, maximizing power density in 19" racks.
• Integrated surge protection guards sensitive electronics against power surges and spikes.

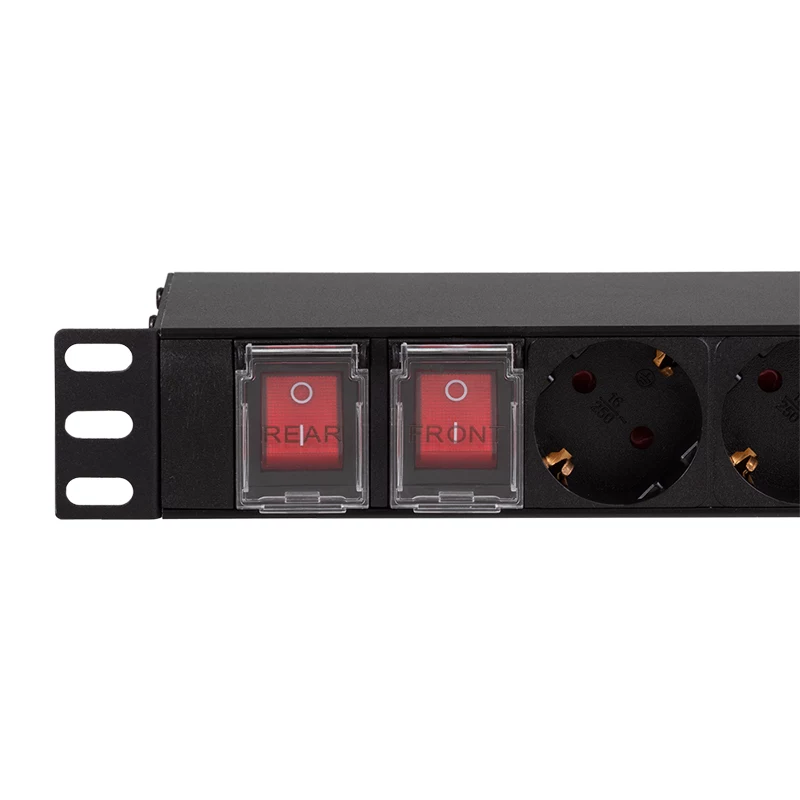

• Illuminated on/off switch provides clear visual status and easy power control.
• Robust aluminum housing for long-lasting performance and efficient cooling.

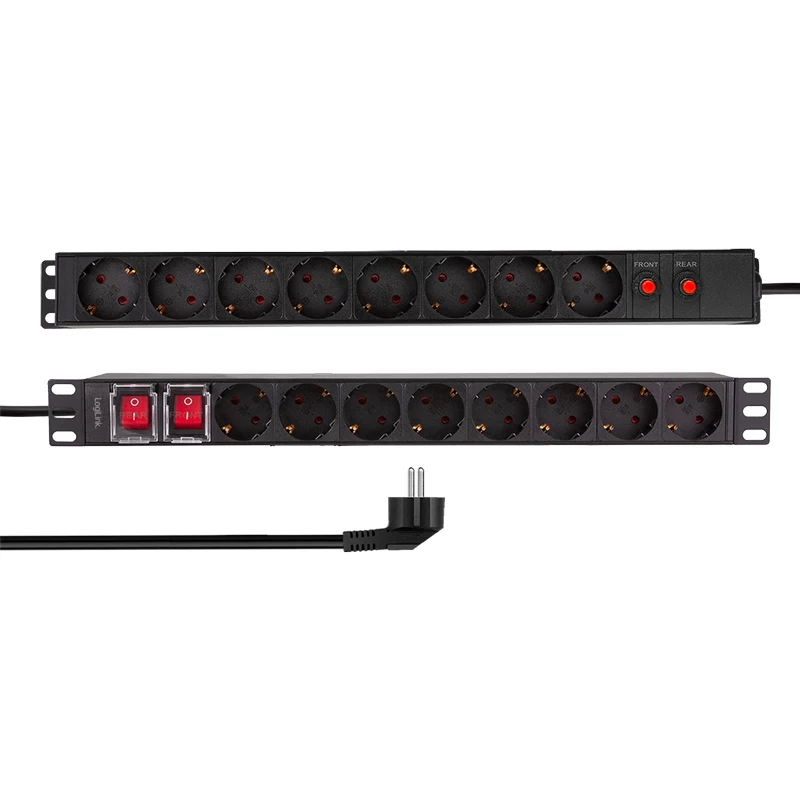

• 2-meter power cord with Schuko plug (CEE 7/7) allows flexible rack installation.
• Complies with CE and RoHS standards, ensuring safety and environmental responsibility.

Technical details

• Rack size: 19" / 1U, horizontal mounting
• Outlet type: 16 × Schuko (CEE 7/3)
• Input plug: Schuko (CEE 7/7)
• Cable length: 2 m, H05VV-F 3G1.5mm²
• Maximum current: 16 A
• Maximum power: 3680 W
• Operating voltage: 230 V AC, 50 Hz
• Surge protection: Yes
• On/off switch: Yes, illuminated
• Housing material: Aluminum
• Color: Black
• Protection class: IP20
• Certifications: CE, RoHS

Our verdict

For IT administrators and AV professionals managing dense rack environments, the LogiLink PDU1601 delivers an impressive combination of outlet density, surge protection, and robust construction in a space-saving 1U design. Its 16 Schuko sockets and 16 A capacity make it a reliable power backbone for mission-critical equipment.
