LogiLink POE005 Splitter PoE, 1 porta Gigabit, 24W máx, saída DC 5/9/12V

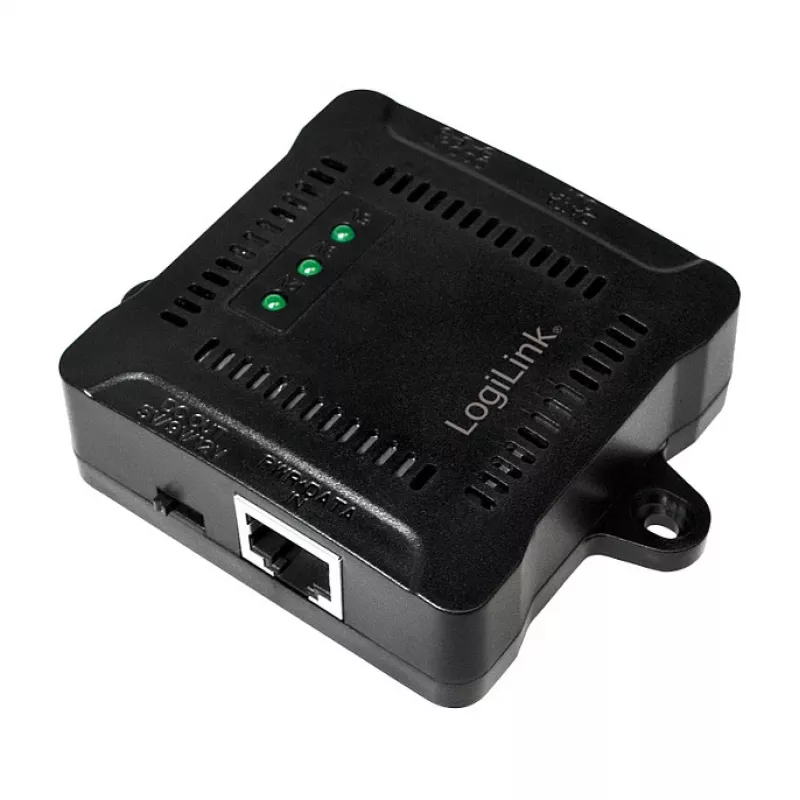

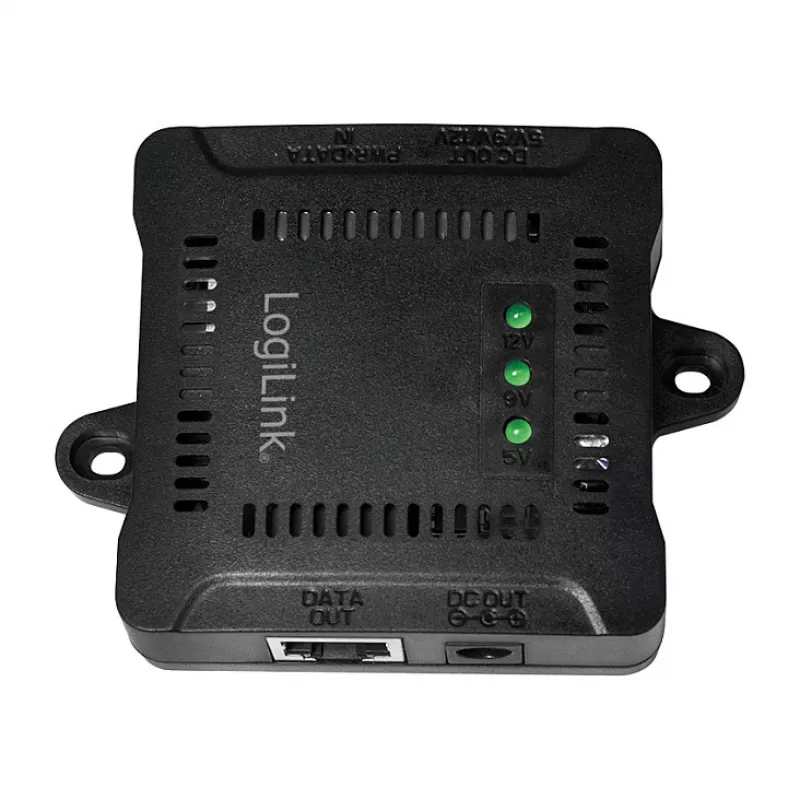

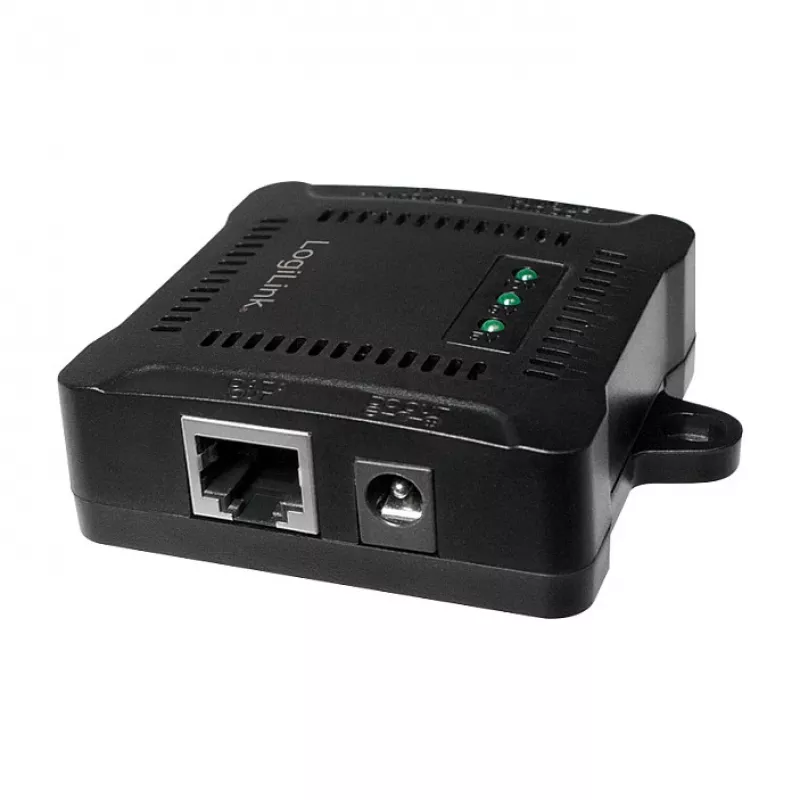

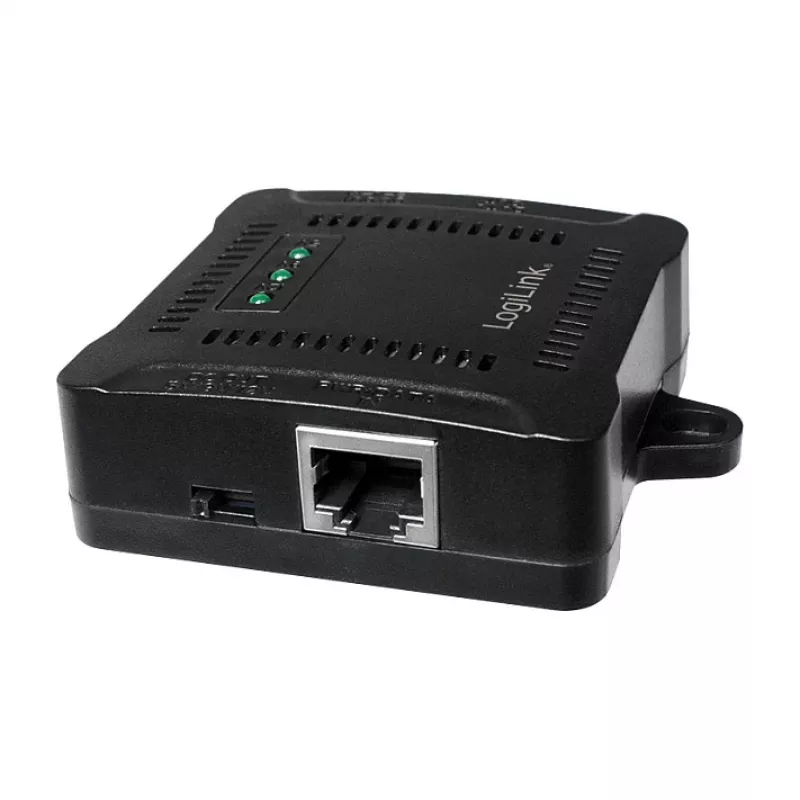

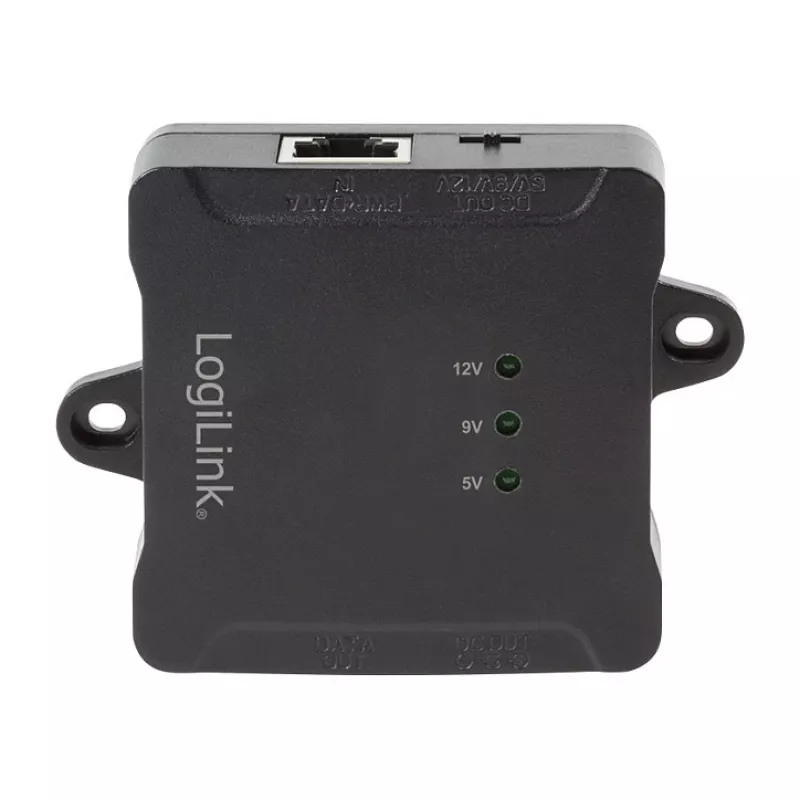

The LogiLink POE005 is a single-port Gigabit Power over Ethernet splitter that delivers both data and power over one network cable. This compact unit separates the incoming PoE signal into a standard RJ45 data connection and a selectable 5V, 9V or 12V DC power output, making it possible to connect customary network devices without a build-in PoE port. With a maximum power output of 24W, the POE005 is a robust solution for powering devices in locations where electrical outlets are not readily available.

Advantages

This PoE splitter supports IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) standards, guaranteeing compatibility with most modern PoE switches and injectors. Its Gigabit Ethernet port ensures high-speed data transfer without bottlenecks. The output voltage can be adjusted via simple DIP switches, allowing the splitter to adapt to different devices. Moreover, the unit is plug & play; no additional software or configuration is required. Built-in overload and short circuit protection safeguards your valuable equipment, while the LED indicators provide at-a-glance status for power and PoE activity.

Suitable for

• IP security cameras and video surveillance systems
• Wireless access points and outdoor Wi-Fi bridges
• VoIP phones and intercom systems
• Networked sensors, smart home hubs and other low-power DC devices

Key specifications

• 1 x Gigabit RJ45 PoE input port (data and power)
• 1 x Gigabit RJ45 data output port
• 1 x DC output jack (5.5 x 2.1 mm)
• Output voltage selectable: 5V / 9V / 12V DC
• Maximum output power: 24W (current up to 2.4A at 5V, 2A at 9V/12V)
• Compliant with IEEE 802.3af/at and IEEE 802.3ab (10/100/1000BASE-T)
• Supports PoE mode A (1/2+, 3/6-) and mode B (4/5+, 7/8-)
• Operating temperature: 0°C to 40°C
• Plastic housing, compact design

Recommendations

To achieve the full 24W output, connect the POE005 to an IEEE 802.3at PoE+ switch or injector that can supply sufficient power. If you use an 802.3af source, the available power will be limited to 15.4W, so check your device's requirements. Always confirm the correct DC voltage (5V, 9V or 12V) before connecting your equipment to avoid damage.
