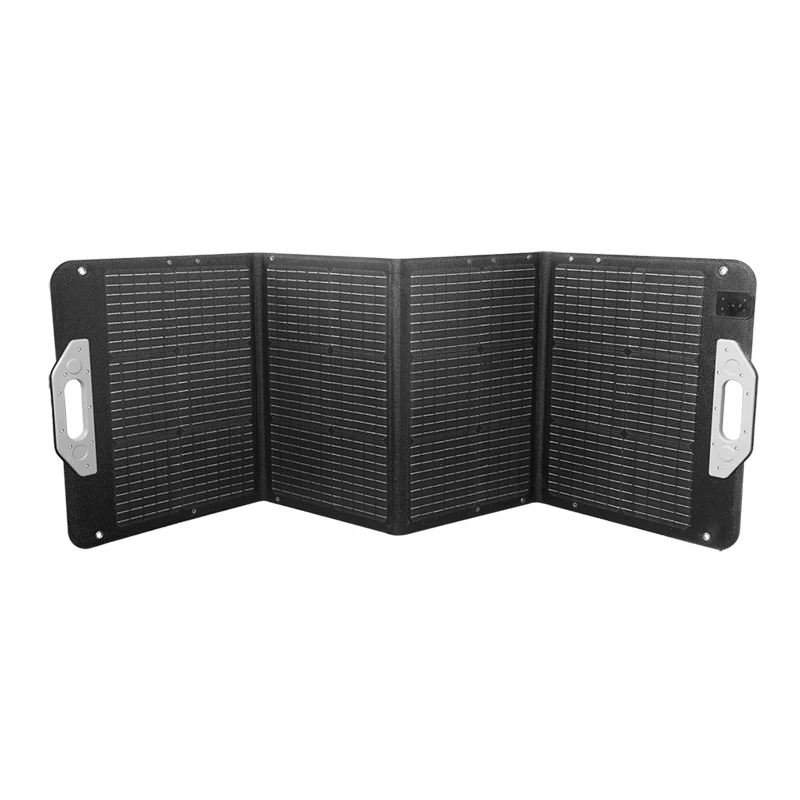

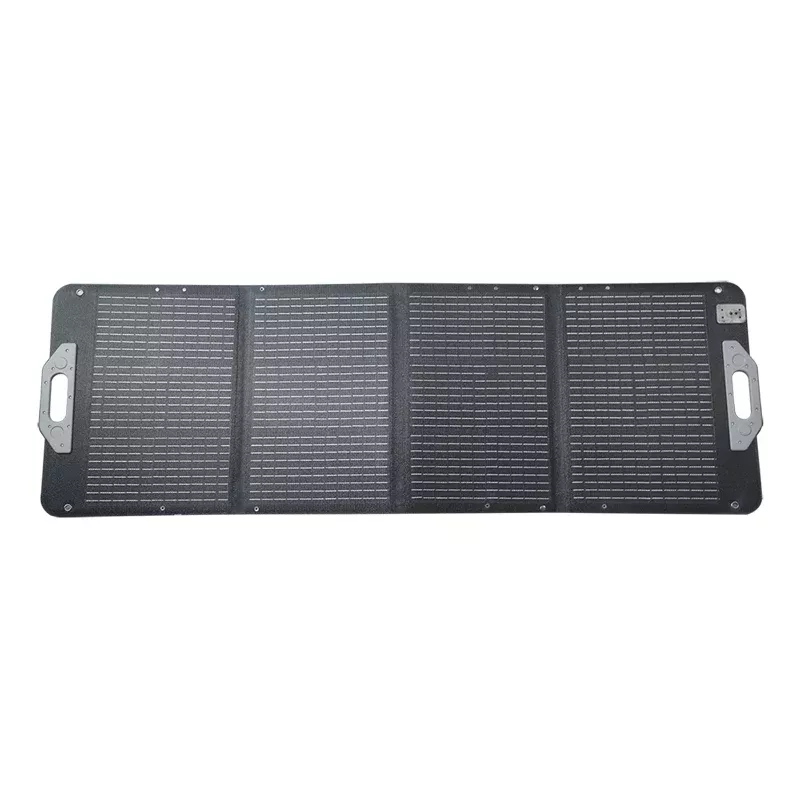

LogiLink PVP0100 Painel solar monocristalino dobrável de 100W com controlador PWM de 10A

For off-grid power that folds flat and travels light, the LogiLink PVP0100 pairs a 100-watt monocrystalline panel with an integrated Voyager 10A PWM charge controller. Unlike rigid glass modules, its anodized aluminum frame and IP65-rated surface shrug off rain, dust, and rough handling, while the built-in kickstand lets you angle the panel for maximum sun without extra mounting hardware.

Highlights

• 100 W rated output at 12 V system voltage for RVs, campers, boats, and remote cabins
• Foldable design with integrated kickstand for easy transport and quick setup
• Monocrystalline cells deliver up to 18% module efficiency even in low light
• Voyager 10A PWM controller with overcharge and reverse polarity protection
• 3 m cable with alligator clips and MC4 connectors for flexible hookup
• IP65 weatherproof panel and anodized aluminum frame for long outdoor life

In daily use

Unfold the panel, extend the kickstand, and connect the alligator clips to your battery or the MC4 leads to a solar generator. The PWM controller regulates charging automatically, preventing overvoltage and reverse current. With a maximum power voltage of 18 V and a short circuit current of 6.11 A, the panel keeps 12 V batteries topped up during daylight. At camp or on the water, the 3-meter cable gives you room to place the panel in full sun while the battery stays shaded.

Full specifications

• Rated power: 100 W
• System voltage: 12 V
• Solar cell type: Monocrystalline
• Charge controller: Voyager 10A PWM
• Open circuit voltage (Voc): 21.6 V
• Maximum power voltage (Vmp): 18 V
• Maximum power current (Imp): 5.56 A
• Short circuit current (Isc): 6.11 A
• Module efficiency: up to 18%
• Connector type: Alligator clips, MC4
• Cable length: 3 m
• Frame material: Anodized aluminum
• Bypass diodes: Yes
• Operating temperature: -40 °C to +85 °C
• IP rating (panel): IP65
• Overcharge protection: Yes (via controller)
• Reverse polarity protection: Yes (via controller)
• Application: RV, camping, marine, off-grid

Final note

With its foldable frame, integrated controller, and rugged build, the LogiLink PVP0100 is a complete solar charging kit for anyone who needs dependable power away from the grid.
