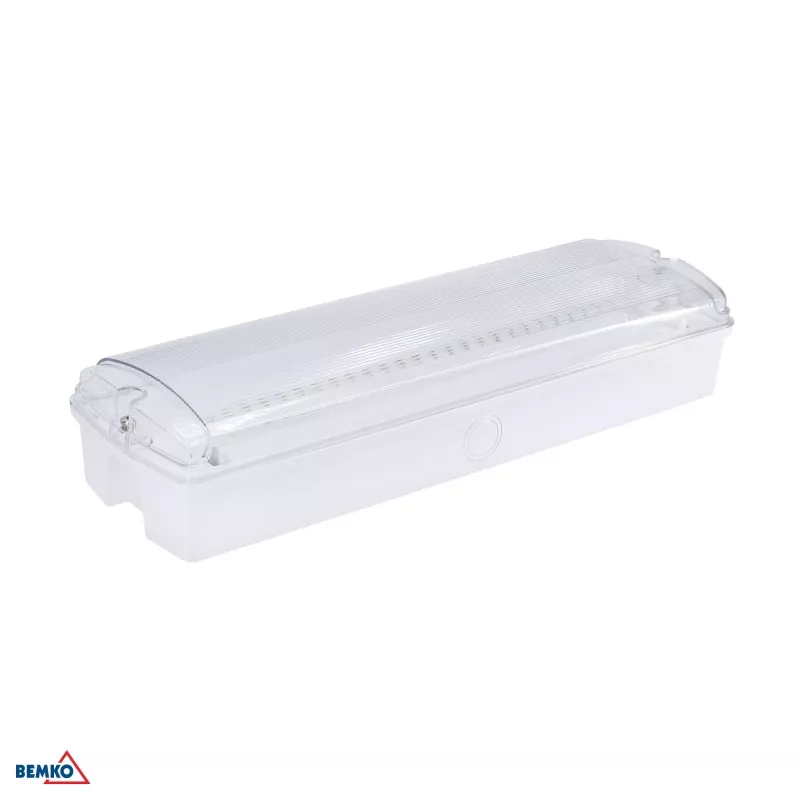

Luminária de emergência LUXMENA GALER 3H 3,5W IP65 para montagem à superfície com conjunto de pictogramas

The LUXMENA GALER C90-GLR-3ZP-MT3H-CNBOP is a high-performance emergency surface-mounted luminaire designed for reliable illumination during power outages. With a power consumption of only 3.5W and an emergency duration of 3 hours, this LED luminaire ensures safety and visibility in critical situations. Its IP65 rating makes it dust-tight and protected against water jets, suitable for both indoor and outdoor use. The luminaire comes with a set of pictograms (exit and directional arrows) for clear evacuation guidance.

Advantages

Energy-efficient LED technology with low power consumption; 3-hour emergency operation ensures compliance with safety standards; robust IP65 and IK08 protection for demanding environments; selectable maintained/non-maintained mode; self-test function for easy maintenance; includes pictogram set for clear signage.

Suitable for

• Emergency lighting in commercial buildings
• Industrial facilities
• Warehouses and storage areas
• Public buildings and corridors
• Outdoor covered areas

Key specifications

• Product Type: Emergency Luminaire
• Mounting Type: Surface-mounted
• Light Source: LED
• Power Consumption: 3.5 W
• Emergency Duration: 3 hours
• IP Rating: IP65
• IK Rating: IK08
• Battery: Ni-Cd 3.6V 1.8Ah
• Luminous Flux (Emergency): 180 lm
• Input Voltage: 230V AC, 50-60Hz
• Housing Material: Polycarbonate (PC)
• Housing Color: White
• Operating Temperature: 0°C to +40°C
• Charging Time: 24 hours
• Certifications: CNBOP, PN-EN 60598-2-22, PN-EN 1838
• Protection Class: II
• Included Accessories: Set of pictograms (exit, directional arrows)
• Test Function: Self-Test Function

Recommendations

For optimal performance, install the luminaire in accordance with local regulations and ensure regular testing of the emergency function. Suitable for use in escape routes and areas requiring emergency lighting.
