MACLEAN Sensor de movimento PIR MCE231

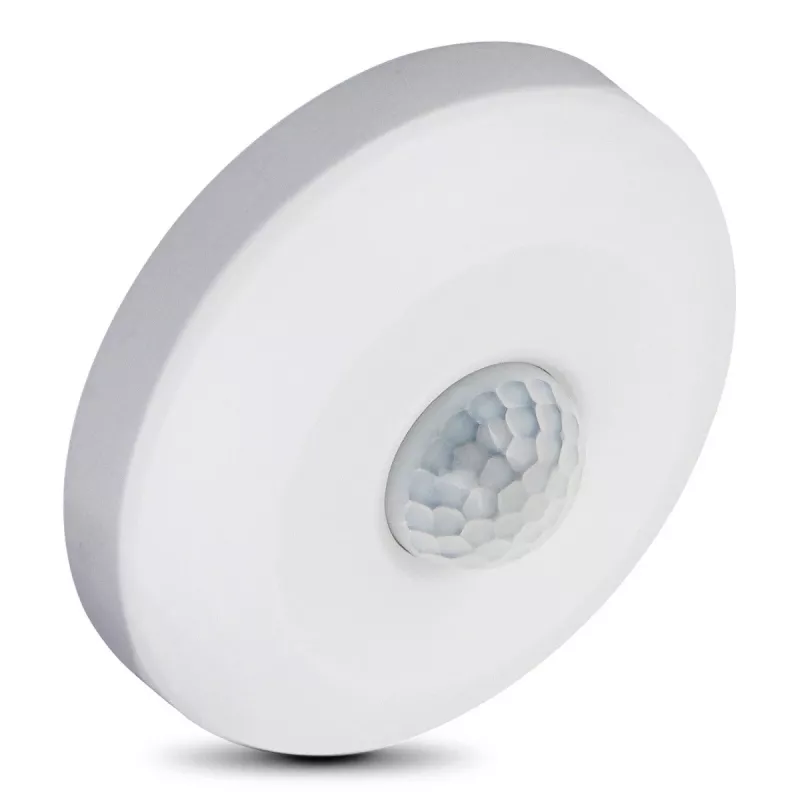

The MACLEAN PIR Motion Sensor MCE231 is a reliable and energy-efficient passive infrared sensor designed for automatic lighting control in indoor and outdoor areas. With a wide detection angle of 180° and a range of up to 12 meters, it ensures comprehensive coverage for hallways, staircases, garages, and gardens. The sensor features adjustable time delay (10 seconds to 7 minutes) and light sensitivity (3-2000 LUX), allowing flexible customization to suit various environments. Its IP44 rating provides protection against splashing water, making it suitable for covered outdoor use.

Advantages

Easy to install with wall-mounted design and adjustable height (1.8-2.5m). Energy-saving standby power consumption below 0.5W. Compatible with both incandescent (1200W) and LED/CFL (300W) loads. Robust ABS plastic construction ensures durability.

Suitable for

• Automatic lighting control in corridors, stairwells, and basements
• Security lighting for garages, patios, and entrances
• Energy-saving applications in commercial and residential buildings

Key specifications

• Sensor Type: PIR (Passive Infrared)
• Detection Angle: 180°
• Detection Range: Max 12 meters (<24°C)
• Power Supply: AC 220-240V, 50/60Hz
• Rated Load (Incandescent): 1200W
• Rated Load (LED/CFL): 300W
• Time Delay Adjustment: 10 sec to 7 min
• Light Sensitivity (LUX): <3-2000 LUX
• Installation Height: 1.8m - 2.5m
• IP Rating: IP44
• Operating Temperature: -20°C to +40°C
• Operating Humidity: <93% RH
• Standby Power: <0.5W
• Material: ABS Plastic
• Color: White
• Mounting Type: Wall-mounted
• Motion Detection Speed: 0.6-1.5 m/s

Recommendations

For optimal performance, mount the sensor at the recommended height and avoid direct exposure to heat sources or air conditioning vents. Adjust the time delay and LUX settings according to the specific area requirements.
