Makita JV103DZ 12V Max CXT Serra de Vaivém sem Escovas a Bateria (apenas máquina) Azul/Preto

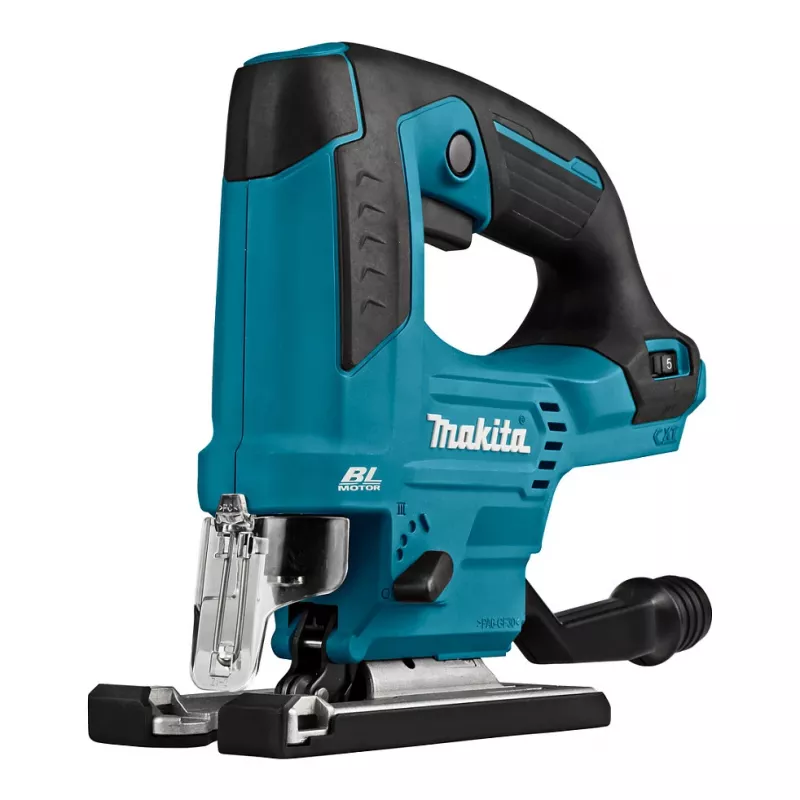

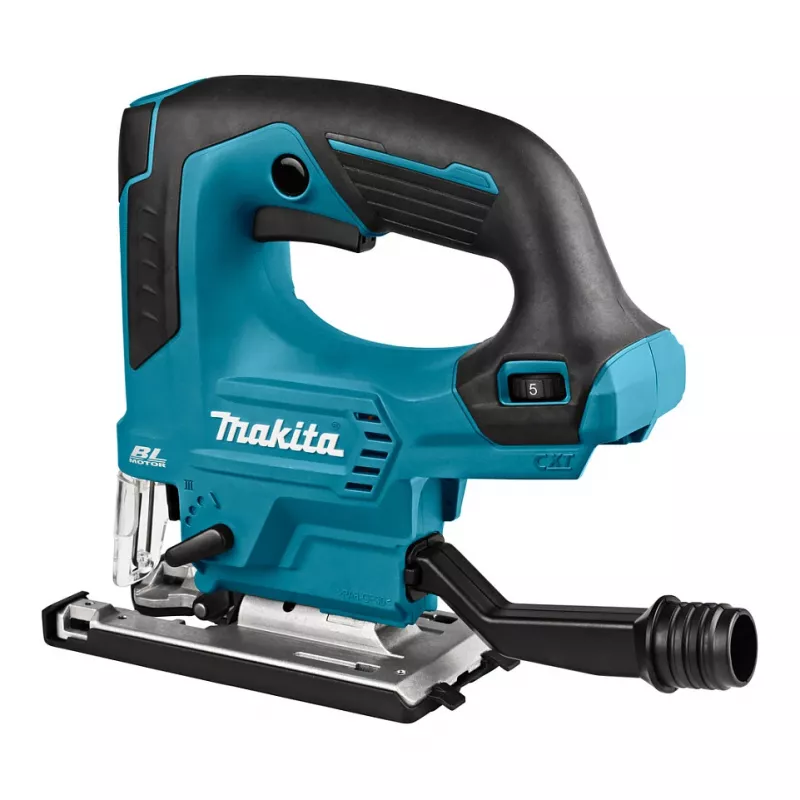

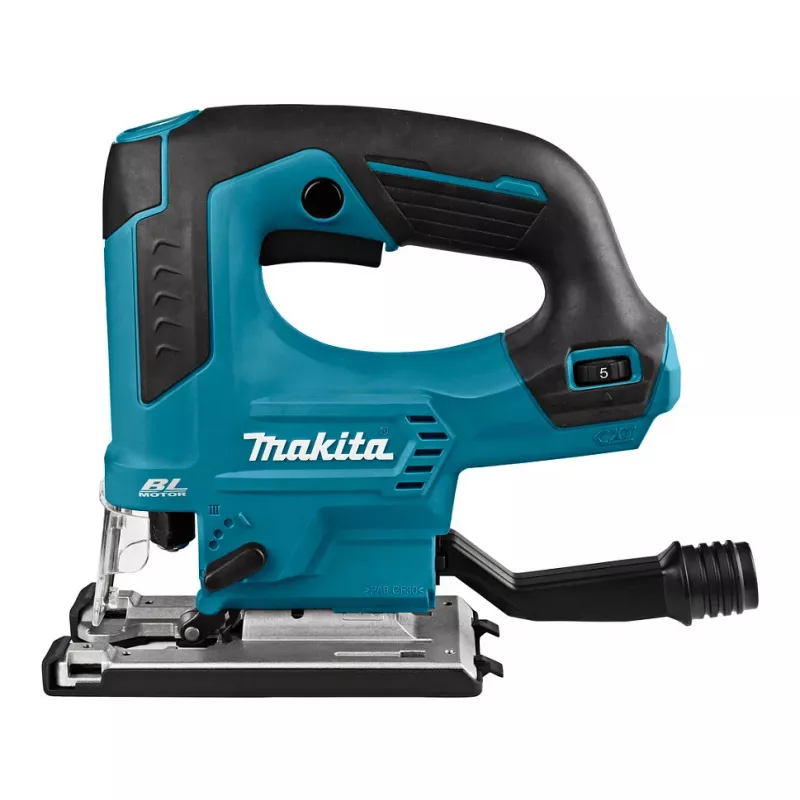

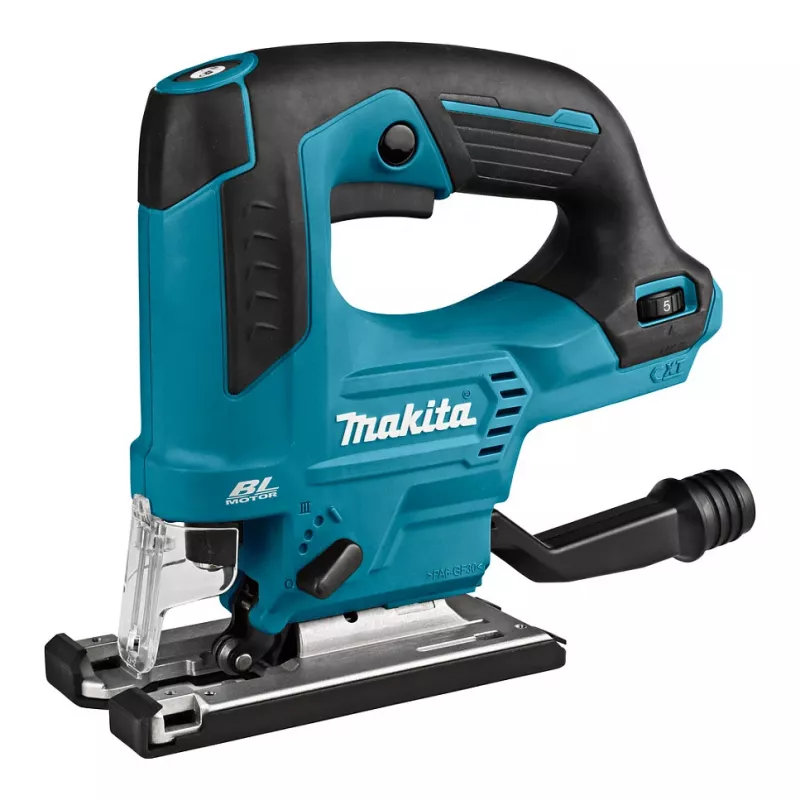

The Makita JV103DZ is a compact and powerful 12V Max CXT brushless cordless jigsaw designed for precise, clean cutting across a wide range of materials. Sold as body-only without battery or charger, it is the ideal upgrade for tradespeople and DIY enthusiasts already equipped with the Makita 12V Max CXT battery platform. The brushless motor delivers consistent power and longer tool life compared to conventional brushed alternatives, while the ergonomic top-handle design ensures comfortable one-handed operation during prolonged cutting tasks.

Advantages

The JV103DZ delivers 800 to 3,000 strokes per minute with a 23mm stroke length, enabling efficient cutting through wood up to 90mm thick, steel up to 10mm, and aluminium up to 20mm. Four orbital settings — three pendulum modes plus straight cut — allow users to choose between faster, aggressive cuts and fine, splinter-free results. Tool-less blade changing simplifies setup and blade swaps on the job site, while the twin LED job light illuminates the cutting line for improved accuracy in low-light conditions.

Suitable for

• Carpenters and joiners needing a lightweight, cordless jigsaw for precise curved and plunge cuts in timber and sheet materials
• Electricians and plumbers making cutouts in panels, drywall, and pipe work with a compact 12V tool
• DIY enthusiasts invested in the Makita 12V CXT battery ecosystem who want a versatile cutting tool for home renovation projects

Key specifications

• Brand: Makita
• Model: JV103DZ
• MPN: JV103DZ
• Voltage: 12V Max CXT (Li-ion, battery not included)
• Motor: Brushless
• Stroke Length: 23 mm
• Strokes per Minute (no-load): 800 - 3,000 spm
• Max Cutting Capacity (Wood): 90 mm
• Max Cutting Capacity (Steel): 10 mm
• Max Cutting Capacity (Aluminium): 20 mm
• Bevel Capacity: 0 - 45°
• Orbital Settings: 3 pendulum modes + straight cut
• Blade Type: T-Shank (B-type)
• Tool-less Blade Change: Yes
• LED Job Light: Twin LED
• Soft Start: Yes
• Sound Power Level: 96 dB(A)
• Sound Pressure Level: 85 dB(A)
• Colour: Blue/Black
• Weight: 1.7 kg (body only)

How to use

Fit a compatible Makita 12V Max CXT battery (BL1021B or BL1041B). Select the appropriate orbital setting on the mode dial — higher settings for fast material removal, lower settings for fine finishing. Use the variable-speed trigger to control cutting pace, and press the tool-less blade lever to fit a T-shank blade. Connect the dust extraction port to a vacuum for a cleaner work area.

Recommendations

The JV103DZ is the right choice for Makita 12V CXT users who want a capable, brushless jigsaw that excels in precision cutting tasks without the bulk and weight of a larger 18V tool.
