Manga de fibra ótica vertical ALANTEC FOM-72K, 72 fusões, conjunto completo com bandejas, proteção de fusão, conjunto de montagem

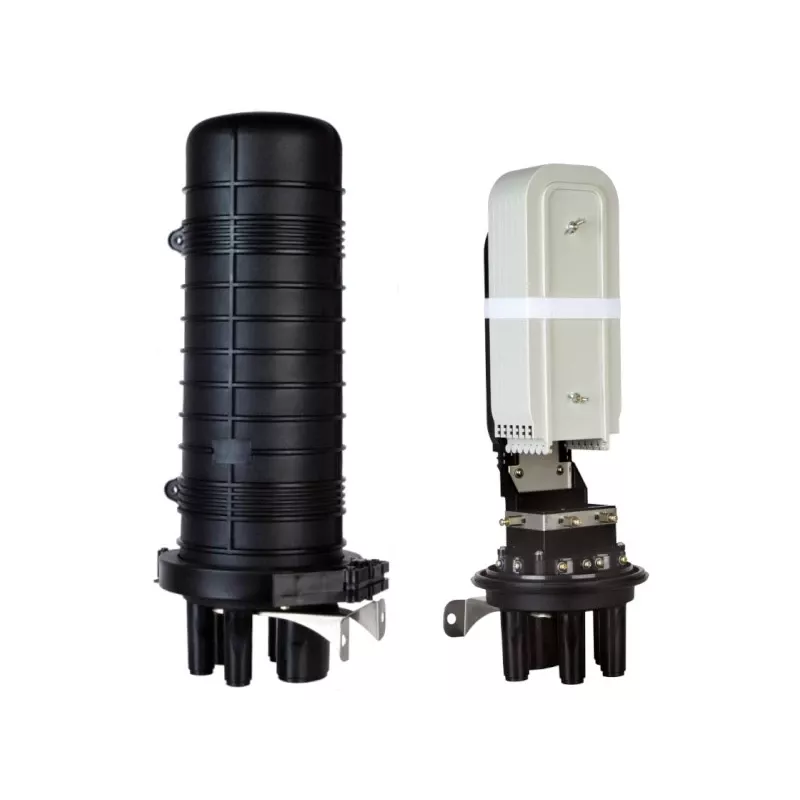

The ALANTEC FOM-72K is a complete vertical fiber optic splice closure designed for reliable and organized splicing of up to 72 fibers. This fully equipped closure includes all necessary accessories for immediate installation, making it an ideal solution for FTTH, FTTx, and telecom networks. Manufactured from UV-resistant engineering plastic (PC+ABS), it offers IP68 protection and can be mounted on poles, walls, aerially, in ducts, or directly buried.

Advantages

This splice closure provides a robust and weatherproof environment for fiber splices, ensuring long-term performance. The mechanical sealing system (rubber gaskets and clamps) allows for easy re-entry without special tools. The included 3 splice trays each hold up to 24 splices, and the kit comes with 72 heat shrink splice protectors, mounting elements, and cable ties. Its versatile mounting options and wide operating temperature range (-40°C to +65°C) make it suitable for various outdoor applications.

Suitable for

• FTTH and FTTx network installations
• Telecommunication infrastructure projects
• Outdoor fiber optic splicing in aerial, duct, or direct burial environments
• Pole or wall-mounted fiber distribution points

Key specifications

• Product Type: Vertical Fiber Optic Splice Closure
• Max Splice Capacity: 72 splices (3 trays x 24 splices)
• Number of Splice Trays: 3 (included)
• Cable Entry Ports: 1 oval (10-25 mm), 6 round (8-18 mm)
• Sealing: Mechanical (rubber gaskets & clamps)
• Material: UV-resistant PC+ABS
• IP Rating: IP68
• Mounting: Pole, wall, aerial, duct, direct burial
• Operating Temperature: -40°C to +65°C
• Color: Black
• Included Accessories: 3x 24-splice trays, 72x heat shrink splice protectors, mounting kit, sealing elements, cable ties, instruction manual
• Fiber Compatibility: Single-mode, Multi-mode
• Splice Type: Fusion, Mechanical
• Pressure Test: 70-106 kPa
• Dielectric Strength: 15kV DC / 1 min
• Insulation Resistance: >2 x 10^4 MΩ

Recommendations

For optimal performance, ensure proper cable preparation and follow the included instruction manual. This closure is designed for use with standard single-mode and multi-mode fibers. It is recommended to use fusion splicing for best results, but mechanical splices are also supported.
