Manga de malha HellermannTyton HEGP25-PET-BK, poliéster, preta, 18-34 mm, 50 m 170-12500

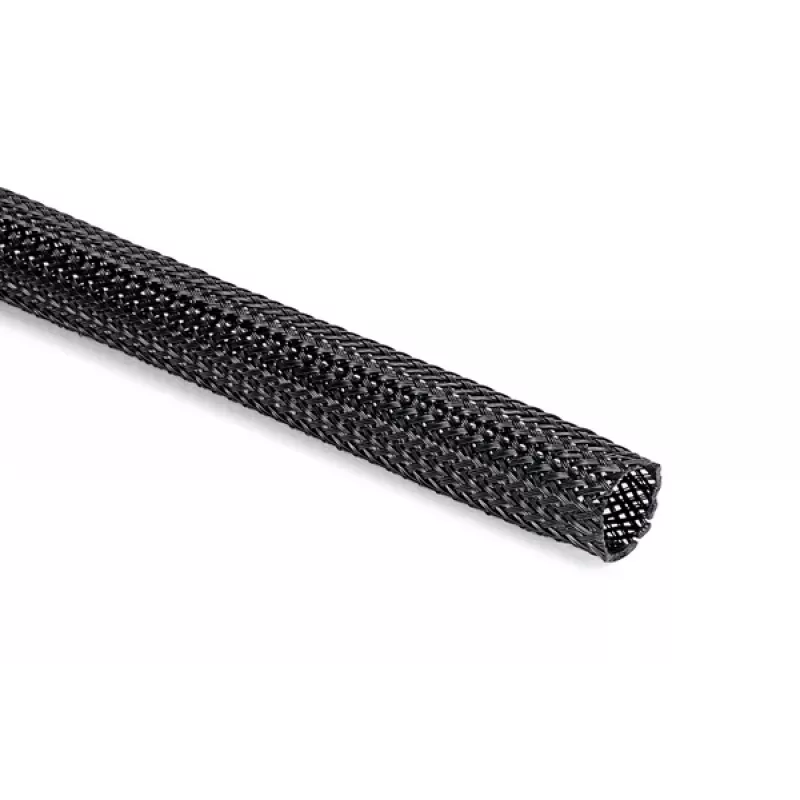

Braided sleeve made from polyester (PET) for bundling and protecting cables and wires. The expandable design accommodates bundle diameters from 18 mm to 34 mm, providing a snug fit and high abrasion resistance. The black colour offers a neat appearance and good UV resistance for indoor and outdoor use.

Advantages

High abrasion resistance and chemical resistance against most common chemicals. Halogen-free material with a flammability rating of UL94 V2. Wide operating temperature range from -50 °C to +150 °C. Supplied on a 50 m roll for convenient cutting to length.

Suitable for

• Cable bundling and protection
• Insulation of wire harnesses
• Automotive and industrial applications
• Organising cables in control cabinets

Key specifications

• Material: Polyester (PET)
• Colour: Black
• Nominal diameter: 25 mm
• Bundle diameter range: 18 - 34 mm
• Length: 50 m
• Operating temperature: -50 °C to +150 °C
• Flammability rating: UL94 V2
• Halogen-free: Yes
• UV resistance: Good
• Abrasion resistance: High
• Chemical resistance: Good against most common chemicals
• Expansion ratio: Approx. 1:2
• Series: HEGP25
• RoHS compliance: Yes

Recommendations

For best results, cut the sleeve to the desired length and push it over the cable bundle. The sleeve expands to fit and contracts for a secure hold.
