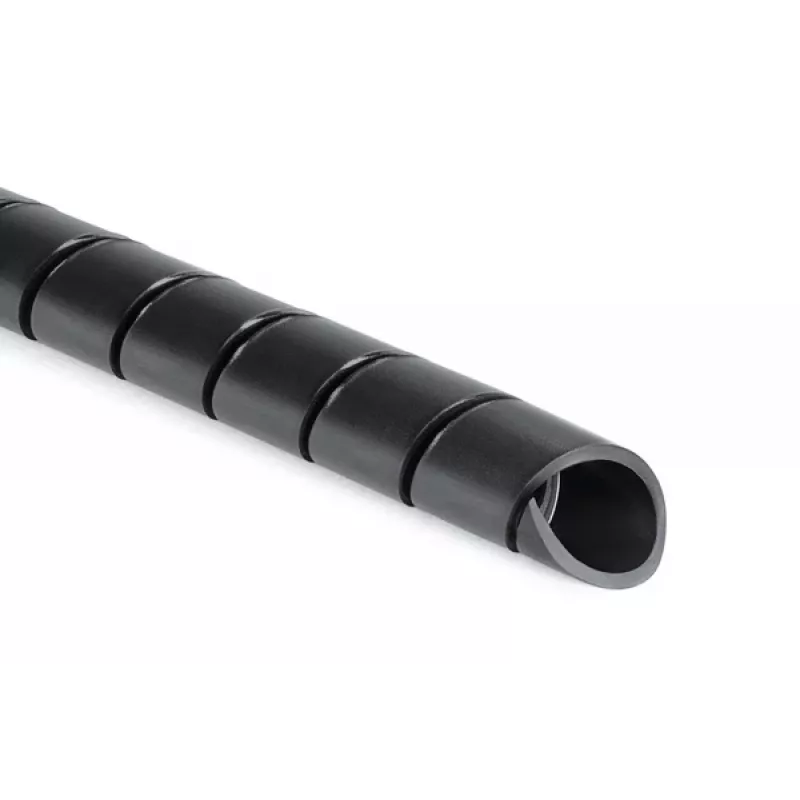

Manga ondulada para cabos HellermannTyton - preto - 10 m - NW10 - PA6

The HellermannTyton 161-41201 is a high-quality, flexible cable conduit designed for reliable protection and routing of cables in demanding industrial and commercial environments. Manufactured from premium Polyamide 6 (PA6), this corrugated conduit offers excellent mechanical strength, chemical resistance, and UV stability. With a nominal size of NW10, an inner diameter of 10.0 mm, and an outer diameter of 13.0 mm, it is ideal for bundling and safeguarding cables against abrasion, moisture, and impact. The 10-meter length provides ample coverage for medium-scale installations.

Advantages

This cable conduit delivers exceptional durability and flexibility, making it easy to install even in tight spaces. Its halogen-free and silicone-free composition ensures safety in case of fire, while the UL94 V2 flammability rating guarantees self-extinguishing properties. The IP66 rating (with appropriate fittings) protects against dust and powerful water jets, making it suitable for outdoor and washdown areas. Additionally, the conduit is resistant to oils, greases, fuels, alkalis, and weak acids, ensuring long-term performance in harsh conditions.

Suitable for

• Industrial machinery and control panels
• Public buildings and rail applications
• Automation systems and robotics
• Outdoor installations requiring UV resistance
• Marine and offshore environments (Lloyds Register, Bureau Veritas approved)

Key specifications

• Material: Polyamide 6 (PA6)
• Colour: Black
• Nominal Size (NW): 10
• Inner Diameter: 10.0 mm
• Outer Diameter: 13.0 mm
• Length: 10 m
• Operating Temperature Range: -40 °C to +120 °C
• Short-Term Temperature: +150 °C
• Flammability Rating: UL94 V2
• IP Rating (with fittings): IP66
• UV Resistance: Good
• Halogen-Free: Yes
• Silicone-Free: Yes
• Chemical Resistance: Good against oils, greases, fuels, alkalis, weak acids
• Flexibility: Flexible, corrugated
• Standards Met: EN 61386
• Approvals: UL Recognized, CSA Certified, Lloyds Register, Bureau Veritas

Recommendations

For optimal performance, use with compatible HellermannTyton fittings to achieve the IP66 rating. Ensure the conduit is not subjected to sharp bends below the minimum bending radius. Suitable for both indoor and outdoor applications where reliable cable protection is required.
