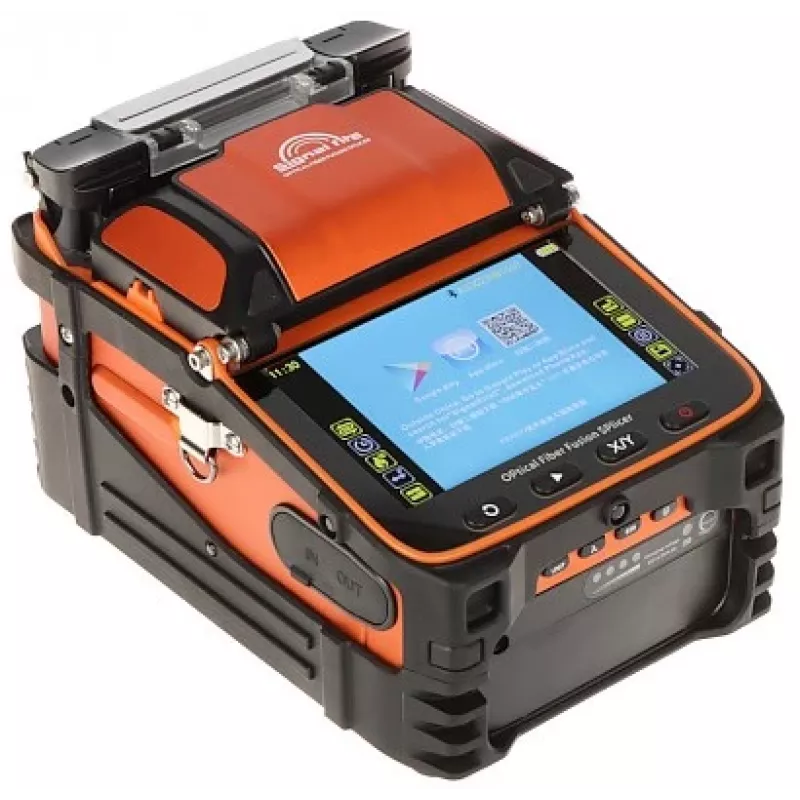

Máquina de fusão de fibra ótica SIGNAL FIRE AI-9

The SIGNAL FIRE AI-9 is a high-performance fiber optic fusion splicer designed for professional field and laboratory use. It combines advanced core/cladding alignment technology with fast splicing and heating cycles, ensuring low-loss splices on single-mode, multimode, and specialty fibers. The AI-9 features a 5-inch TFT color LCD, automatic arc calibration, and a robust 7800 mAh battery for extended operation. Ideal for FTTH, telecom, and data center installations, this splicer delivers reliable results in demanding environments.

Advantages

Fast splicing in 5 seconds and heating in 15 seconds (Fast Mode) significantly increases productivity. The PAS alignment system ensures precise core-to-core alignment, achieving average splice loss as low as 0.02 dB for SM fibers. The large battery supports 200-240 splice and heat cycles, and the electrode life of 5000 arcs reduces maintenance costs. Automatic features like fiber identification and arc calibration simplify operation.

Suitable for

• FTTH and FTTx network installation and maintenance
• Telecom and long-haul fiber optic networks
• Data center cabling and repair
• CATV and LAN fiber systems
• Research and development labs

Key specifications

• Splicing Method: Fusion Splicing
• Alignment: Core/Cladding Alignment (PAS Technology)
• Applicable Fibers: SM (G.652), MM (G.651), DS (G.653), NZDS (G.655), BIF/UBIF (G.657)
• Cladding Diameter: 80-150 μm
• Coating Diameter: 100-1000 μm
• Splicing Time: 5s (Fast), 8s (Standard)
• Heating Time: 15s (Fast), 18s (Standard)
• Average Splice Loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS)
• Return Loss: >60 dB
• Tension Test: 2.0 N
• Display: 5-inch TFT Color LCD
• Magnification: 300X (X or Y), 150X (X and Y)
• Electrode Life: 5000 arcs
• Battery: 7800 mAh Lithium, 200-240 cycles
• Data Storage: 10,000 splice results
• Connectivity: USB
• Operating Temperature: -15°C to +50°C
• Wind Protection: Max. 15 m/s

Recommendations

The SIGNAL FIRE AI-9 is a reliable and efficient fusion splicer suitable for professionals who require fast, low-loss splices in various fiber types. Its robust design and automatic features make it an excellent choice for field technicians and network engineers.
