Marcador de cabos HellermannTyton WIC1 preto PA66 26,7mm 100 unidades 561-06000

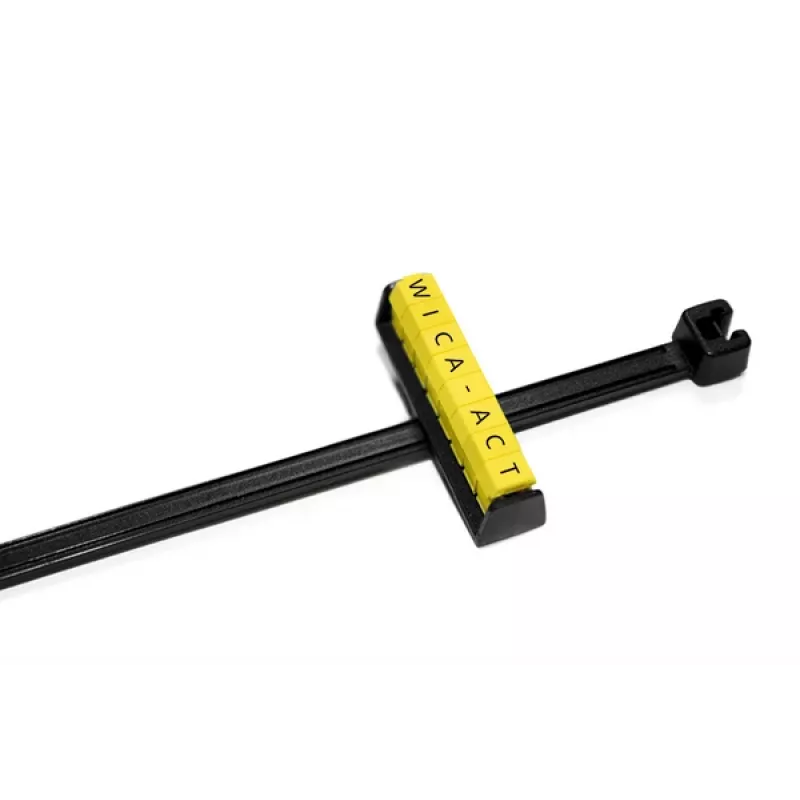

Identifying wires and cables in control panels, switchgear, or industrial installations can be time-consuming and error-prone when markers slip off or fade. The HellermannTyton WIC1 cable marker offers a reliable snap-on solution for permanent wire identification.

Who is it for

Electricians, panel builders, and maintenance technicians who need to label individual wires or small cables with diameters from 2.0 mm to 3.2 mm. It suits applications where clear, durable marking is required without the need for printing.

Main features

• Snap-on design for quick installation without tools
• Made from polyamide 6.6 (PA66) for high mechanical strength
• Black colour for standard identification
• Suitable for cable cross-sections from 0.5 mm² to 1.5 mm²
• Halogen-free, sulfur-free, and silicone-free
• Operating temperature range from -30 °C to +80 °C
• Flammability rating UL94 V2

Specifications

• Type: Cable marker
• Series: WIC1
• Material: Polyamide 6.6 (PA66)
• Colour: Black
• Length: 26.7 mm
• Minimum cable diameter: 2.0 mm
• Maximum cable diameter: 3.2 mm
• Minimum cable cross-section: 0.5 mm²
• Maximum cable cross-section: 1.5 mm²
• Mounting type: Snap-on
• Quantity per pack: 100 pieces

Tips

For best results, ensure the cable surface is clean and dry before snapping the marker into place. Use a marker pen suitable for polyamide if you need to add custom text.
