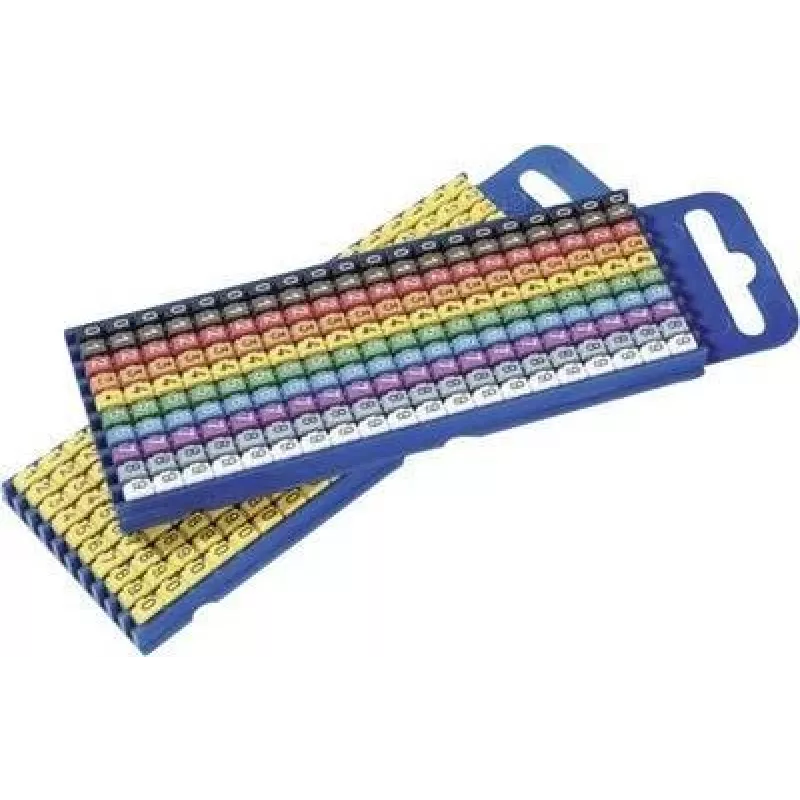

Marcador de cabos WIC Clip-On HellermannTyton amarelo 200 unid. 561-01101

Identifying individual wires in dense cable bundles is a recurring challenge in control cabinets and harness assembly. The HellermannTyton WIC clip-on marker solves this by providing a fast, secure way to label cables without disconnecting them. This pack contains 200 yellow markers, each designed for cables with a diameter of 1.5 to 2.5 mm (0.5 to 1.5 mm²).

Who is it for

Panel builders, electrical installers, and maintenance technicians who need to mark wires during initial assembly or retrofitting. The clip-on design allows markers to be added after wiring is complete, saving time on rework.

Main features

• Clip-on application: no need to thread wires through sleeves; simply snap onto the cable.
• Material: Polyamide 6.6 (PA66) for durability and resistance to oils, greases, and common solvents.
• Temperature range: -40 °C to +85 °C, suitable for demanding environments.
• Blank surface for manual marking or thermal transfer printing.
• Halogen-free and RoHS compliant.

Specifications

• Product type: Cable identification marker
• Series: WIC
• Marker type: Clip-on
• Cable diameter range: 1.5 - 2.5 mm
• Wire cross-section range: 0.5 - 1.5 mm²
• Material: Polyamide 6.6 (PA66)
• Colour: Yellow
• Quantity per pack: 200 pieces
• Operating temperature: -40 °C to +85 °C
• Flammability rating: UL94 V2
• Halogen-free: Yes
• UV resistance: No
• RoHS compliance: Yes
• Application method: Pre-assembly and post-assembly
• Single marker dimensions: length 4.7 mm, width 3.0 mm, height 4.0 mm
• Printability: Blank for manual marking or thermal transfer printing
• Packaging type: Bag
• Chemical resistance: Good resistance to oils, greases, and common solvents

Tips

For best adhesion, ensure the cable surface is clean and dry before clipping. Use a thermal transfer printer with appropriate ribbon for permanent, legible markings in industrial environments.
