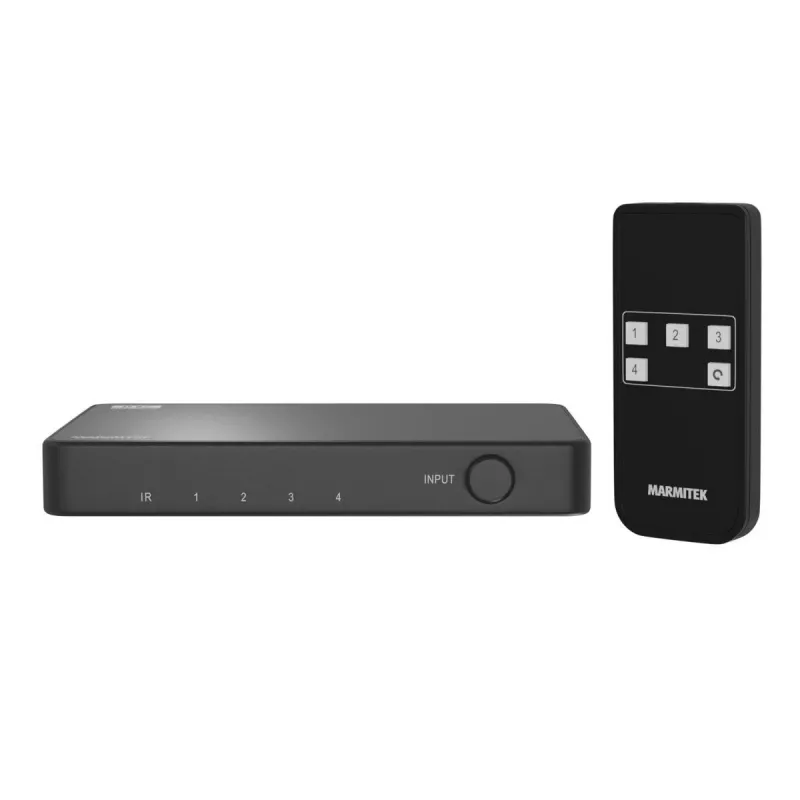

MARMITEK Connect 740 Comutador HDMI 2.0 de 4 Portas com Comando, 4K@60Hz, HDR, HDCP 2.2, Caixa de Metal

The MARMITEK Connect 740 is a 4-port HDMI switch that routes any of four 4K UHD sources to a single display, supporting 4K@60Hz with HDR and HDCP 2.2. It handles full 18 Gbps bandwidth, ensuring smooth video from gaming consoles, media players, and set-top boxes.

Advantages

Four HDMI inputs allow connection of multiple devices without swapping cables. Automatic switching detects the active source, while the included remote and front-panel button offer manual control. The metal housing dissipates heat and protects against interference.

Suitable for

• Home theatre setups with multiple 4K sources
• Gaming stations with console, PC, and streaming box
• Conference rooms needing quick source switching
• Users with AV receivers lacking enough HDMI inputs

Key specifications

• HDMI 2.0, HDCP 2.2 and 1.4 compliant
• Supports 4K (3840x2160) at 60Hz, HDR10, HLG, Dolby Vision
• 18 Gbps video bandwidth, deep colour up to 12-bit
• Audio: Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master Audio, LPCM 7.1
• Switching: automatic, manual button, IR remote
• CEC and EDID management
• Metal housing, LED indicators
• Power: 100-240V AC to 5V DC / 1A adapter

Recommendations

For best performance, use high-speed HDMI cables no longer than 5 meters on both input and output. Place the switch in a well-ventilated area and ensure the IR sensor is visible to the remote.
