Material de ligação à terra Rittal 2564.000, amarelo, altura 170 mm, peso 6 g

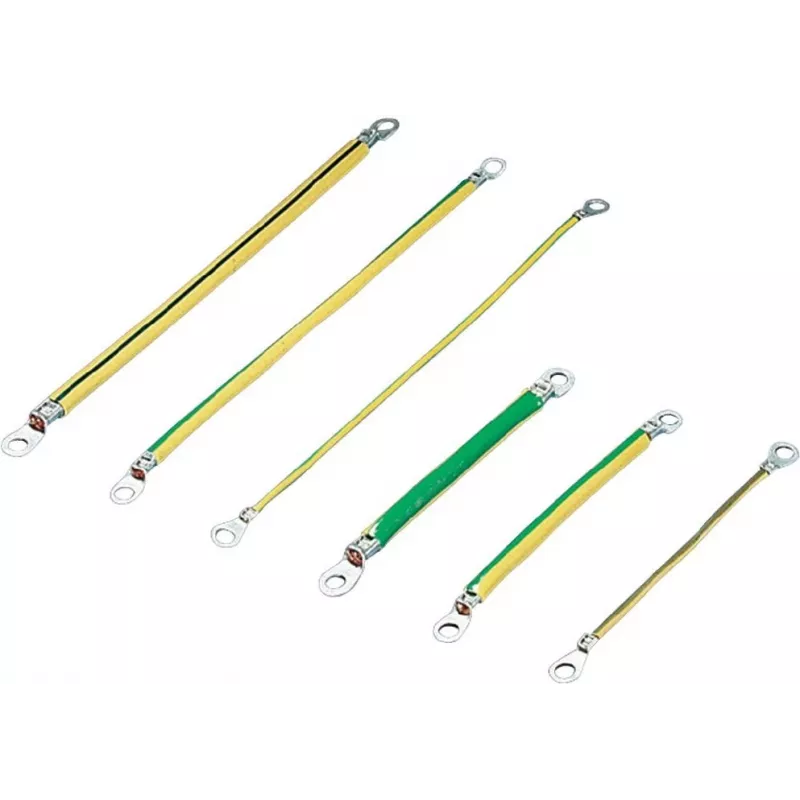

Rittal 2564.000 grounding hardware in yellow is a compact earthing component designed for electrical cabinets and enclosures. With a height of 170 mm and a mass of 6 g, it provides a clearly defined connection point for grounding conductors to ensure consistent and safe earthing of panels and internal components in industrial and commercial electrical installations.

Advantages

The yellow finish increases visibility inside cabinets and helps identify the earthing point quickly. The part is length-optimised and supplied ready to install, reducing preparation time during assembly. It accepts ring terminals sized for M6 and M8 earthing screws, enabling secure mechanical and electrical contact. Its lightweight construction simplifies handling while maintaining stable grounding performance when properly mounted.

Suitable for

Key specifications

How to use

Mount the grounding hardware at the designated earthing point inside the enclosure using the appropriate fastening hardware for your panel. Connect the grounding conductor using a compatible ring terminal that matches the M6 or M8 earthing screw, then tighten securely to ensure low-resistance contact. Verify mechanical stability and continuity to the building grounding system with a suitable tester or multimeter before commissioning.

Recommendations

For reliable earthing, use corrosion-resistant ring terminals and tighten earthing screws to the torque values specified by the enclosure or component manufacturer. Periodically inspect the connection for tightness and signs of corrosion, and re-torque if required during preventive maintenance.
