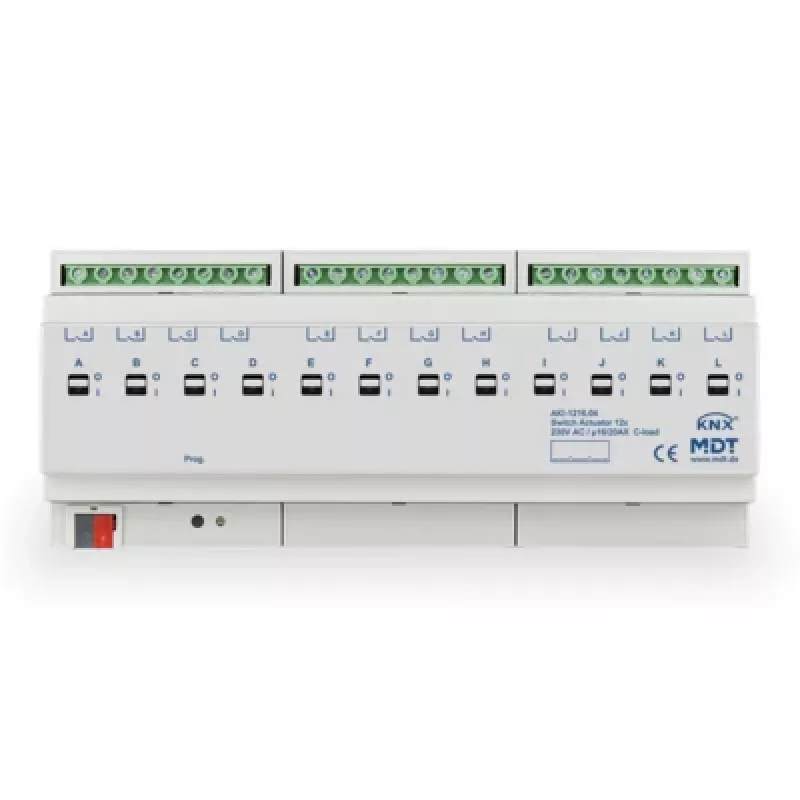

MDT AKI-1216.04 atuador de comutação KNX, 12 canais, 12 TE calha DIN, 16/20 A, 230 V AC, carga capacitiva 200 µF

The MDT AKI-1216.04 is a 12-channel KNX switch actuator designed for high inrush currents, handling up to 200 µF capacitive load per channel. Each of the 12 potential-free outputs switches up to 20 A resistive or 16 A capacitive at 230 V AC, making it suitable for demanding industrial and building automation tasks.

Advantages

With a compact 12 TE (216 mm) DIN rail housing, this actuator saves space while providing independent manual operation and LED status indication for each channel. The AgSnO2 contacts ensure reliable switching even at low currents down to 10 mA.

Suitable for

• Switching lighting circuits with high inrush currents (LED drivers, fluorescent ballasts)
• Controlling capacitive loads up to 200 µF per channel
• KNX installations requiring 12 independent switching channels
• Industrial applications with 230 V AC loads up to 20 A resistive

Key specifications

• Bus system: KNX
• Number of outputs: 12 channels, potential-free
• Mounting: DIN rail (REG), width 12 TE (216 mm)
• Switching capacity: 20 A resistive, 16 A capacitive per channel
• Operating voltage: 230 V AC
• Maximum capacitive load: 200 µF per channel
• Manual operation: Yes, per channel
• Status indication: LED per channel
• Contact material: AgSnO2
• Minimum switching current: 10 mA
• Power consumption: max. 0.3 W (bus), max. 1.5 W (actuator)
• Ambient temperature: 0 to +45 °C
• Functions: scene control, logic functions, time functions, status feedback

Recommendations

For reliable switching of high inrush loads in KNX systems, the MDT AKI-1216.04 offers a robust solution with its high capacitive load rating and independent channel control.
