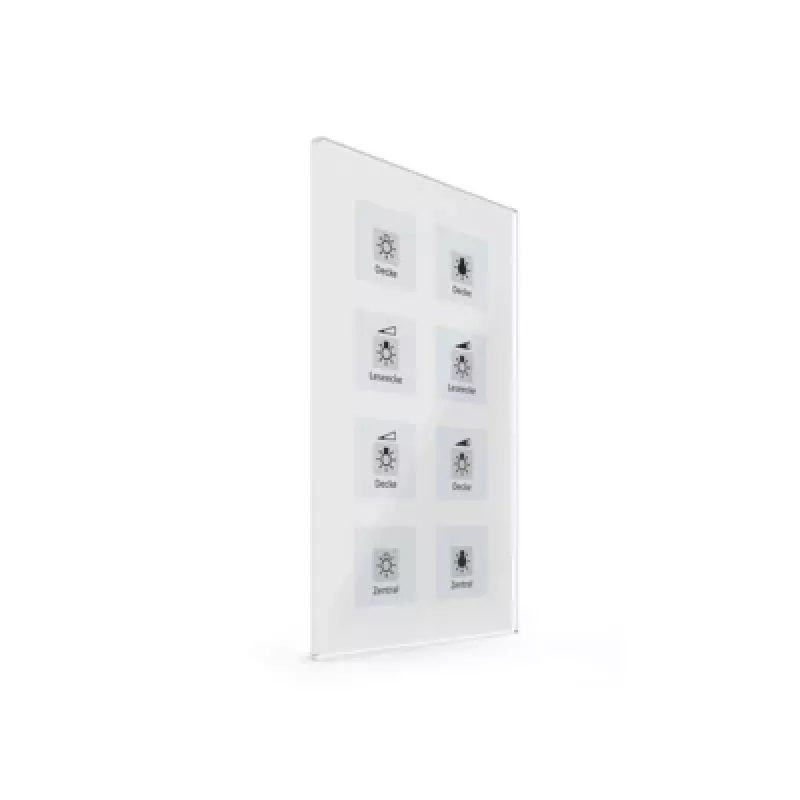

MDT BE-GT08W.01 KNX Sensor de toque em vidro Plus, 8 vias, branco

Managing multiple lighting scenes, blinds, and HVAC functions from a single wall station can be cumbersome. The MDT BE-GT08W.01 Glass Push Button Sensor Plus solves this by offering eight configurable touch buttons in an elegant glass front, all powered directly from the KNX bus.

Who is it for

This device is ideal for KNX installers and homeowners seeking a premium, flush-mounted control panel for smart building automation. It suits modern interiors where a flat, minimalist design with haptic feedback is desired.

Main features

• 8 touch-sensitive buttons with individual RGB status LEDs
• Integrated temperature sensor for room climate monitoring
• Supports switching, dimming, blind/shutter control, value sending, scene recall, sequences, and HVAC control
• Backlit labeling area for custom button labels via MDT Labeling Tool
• Flush-mounted in standard wall box, powered by KNX bus (no external supply needed)
• White glass surface

Specifications

• Product type: KNX Glass Push Button Sensor
• Number of buttons: 8
• Colour: White
• Material: Glass
• Bus system: KNX
• Integrated sensors: Temperature sensor
• LED indicators: 8x RGB status LEDs (configurable)
• Backlight: Yes, for labeling area
• Power supply: KNX Bus
• Mounting type: Flush-mounted (standard wall box)
• Operating temperature: 0°C to +45°C
• Protection class: IP20
• ETS software requirement: ETS 4.2 or higher
• Integrated bus coupler: Yes
• Customization: Individual labeling via MDT Labeling Tool

Tips

Use the MDT Labeling Tool to print custom labels for each button, then insert them behind the glass cover. The RGB LEDs can be configured per button to indicate status or orientation.
