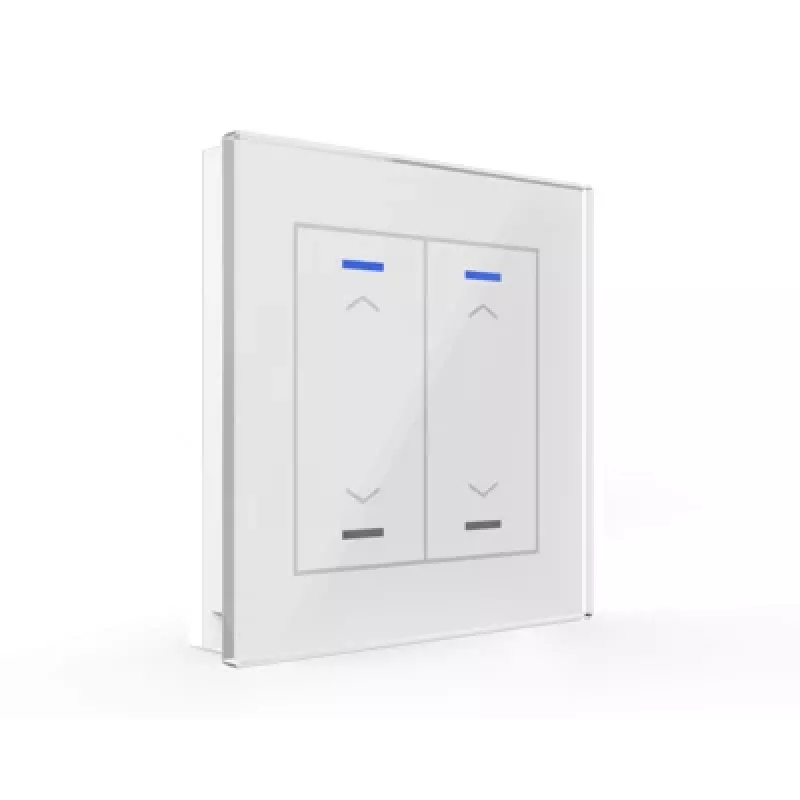

MDT BE-GTL20W.A1 Botão de vidro II Light 2 funções RGB-W branco estore/persiana

KNX glass push button with 2-fold control and RGB-W status LEDs, designed for switching, dimming, blind/shutter control, value transmission, and scene recall. The white glass front and integrated temperature sensor make it a versatile component for modern building automation.

Advantages

Each button features an RGB-W LED for status indication and orientation lighting, with brightness adjustable via ETS. Haptic feedback from mechanical push-buttons ensures reliable operation. The flush-mounted design fits standard wall boxes with an installation depth of approximately 30 mm.

Suitable for

• Lighting control in residential and commercial buildings
• Blind and shutter automation
• Scene-based control of KNX installations
• Temperature monitoring in rooms

Key specifications

• Bus System: KNX
• Number of Control Points: 2-fold
• Control Functions: Switching, Dimming, Blind/Shutter Control, Value Transmitter, Scene Recall
• Integrated Sensors: Temperature Sensor
• Indicator Type: RGB-W Status LEDs per button
• Orientation Light: RGB-W, adjustable brightness
• Feedback: Haptic (mechanical push-buttons)
• Mounting Type: Flush-mounted
• Front Panel Material: Glass
• Colour: White
• Configuration Software: ETS (ETS4/5 or higher)
• Power Supply: KNX Bus voltage
• Operating Temperature: -5°C to +45°C
• Protection Class: IP20
• Installation Depth: Approx. 30 mm

Recommendations

Commission with ETS to configure button functions, LED behaviour, and temperature sensor reporting. Pair with MDT actuators for complete KNX control.
