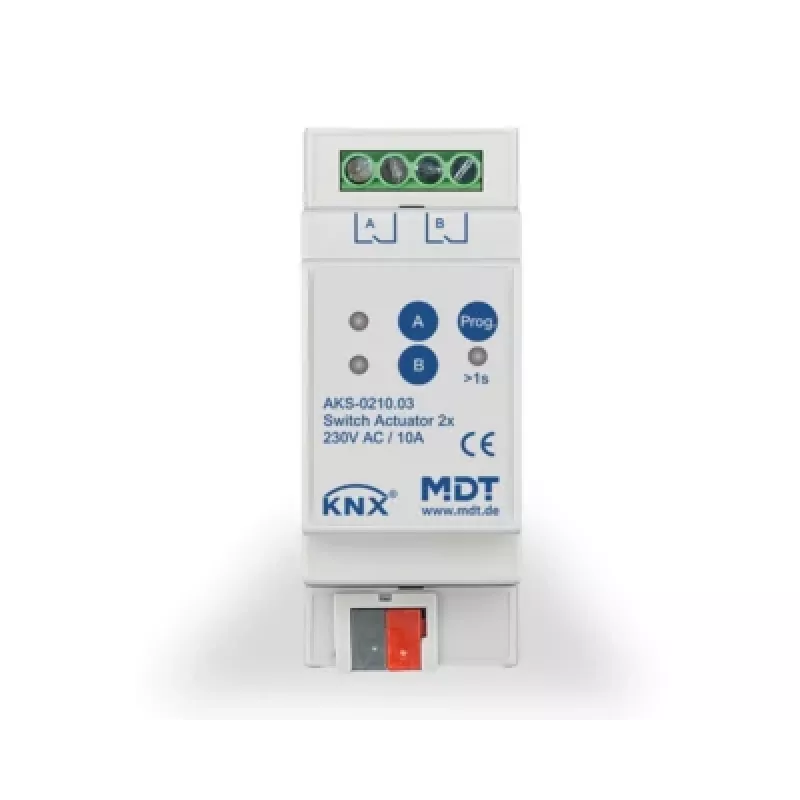

MDT KNX Atuador de comutação 2 canais, 2TE REG, 10A, 230V AC AKS-0210.03

In residential and commercial KNX installations, the MDT AKS-0210.03 provides two independent switching channels for lighting and other electrical loads. Each channel can switch up to 10A at 230V AC, making it suitable for a wide range of applications. The compact 2TE (36mm) DIN rail housing fits easily into standard distribution boards.

Key specifications

• Bus system: KNX
• Number of outputs: 2
• Switching capacity per channel: 10A (AC1)
• Rated voltage: 230V AC
• Mounting type: DIN rail (REG)
• Module width: 2 TE (36 mm)
• Manual operation: Yes, with push buttons
• Status feedback: Yes, via KNX bus
• Load type: Resistive, inductive, capacitive loads
• Power supply (electronics): KNX Bus
• Power supply (contacts): 230V AC
• Protection class: IP20
• Operating temperature: 0°C to +45°C
• Functions: Switching, Scene Control, Central Functions, Time Functions, Logic Functions
• Contact type: Normally Open (NO)
• Max. inrush current: 16A (for 150ms)
• Configuration software: ETS (Engineering Tool Software)
• Certification: CE

Why choose it

The AKS-0210.03 offers reliable switching with manual override and extensive KNX functionality, including scene and logic functions. Its compact size and straightforward ETS configuration make it a practical choice for electricians and system integrators.

Ideal use cases

• Switching lighting circuits in homes and offices
• Controlling fans, pumps, or other motors up to 10A
• Integrating into KNX smart building systems for centralized control

Good to know

The actuator is powered via the KNX bus for its electronics, while the switching contacts require a separate 230V AC supply. It is designed for DIN rail mounting in distribution boards and is configured using ETS software.
