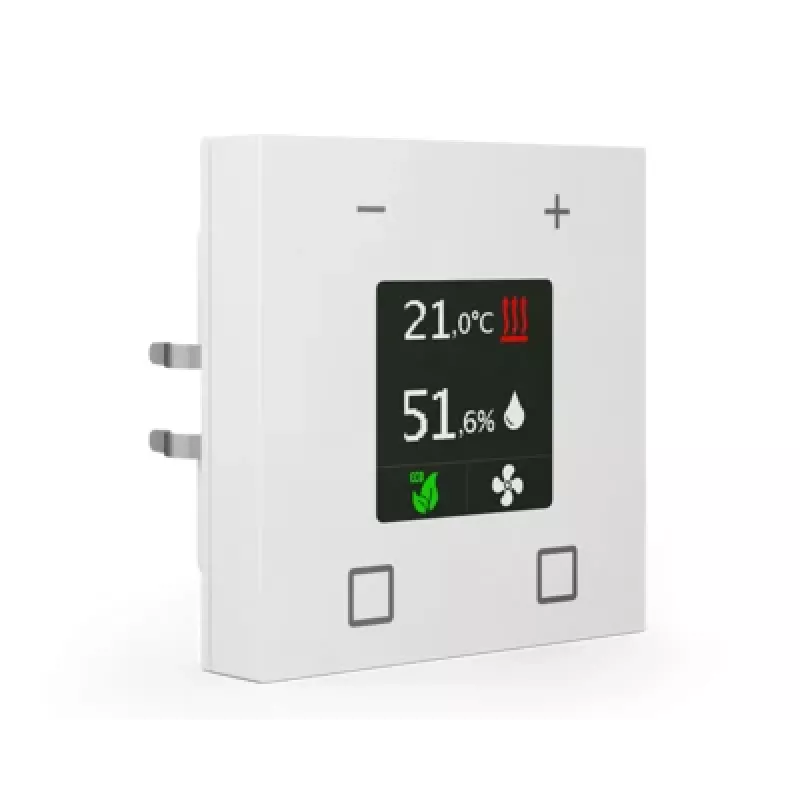

MDT SCN-RTN63S.01 Termostato KNX com ecrã TFT de 2,8 polegadas, studio branco brilhante

KNX room temperature controller with 2.8" TFT color display and integrated sensors for temperature, humidity, air pressure, brightness, and presence detection. Enables precise room climate control with configurable display pages, logic blocks, timers, and scenes.

Advantages

High-resolution color display with up to 15 configurable pages for intuitive operation. Integrated multi-sensor (temperature, humidity, air pressure, brightness, PIR presence) provides comprehensive room data. Supports heating, cooling, ventilation, and automatic modes with manual override. Flexible programming via ETS with 10 logic blocks, 10 timers, and 10 scenes. Flush-mounted in standard 60mm box, powered directly from KNX bus.

Suitable for

• Residential and commercial KNX installations
• Individual room climate control
• Energy-efficient building automation

Key specifications

• System: KNX
• Display: 2.8" TFT color, 240 x 320 pixels
• Sensors: Temperature, humidity, air pressure, brightness, presence (PIR)
• Control functions: Room temperature, humidity, fan
• Operating modes: Heating, cooling, ventilation, automatic, manual
• Setpoint adjustment: Yes
• Configurable display pages: Up to 15
• Logic blocks: 10
• Timers: 10
• Scenes: 10
• Mounting: Flush-mounted (standard 60mm box)
• Power supply: KNX bus
• Material: High-quality plastic (PC)
• Color: Studio White
• Finish: Glossy
• Firmware update: Yes, via ETS
• Operating temperature: 0 to +45 °C

Recommendations

Ideal for KNX projects requiring a multifunctional room controller with a clear display and extensive programming capabilities. The integrated sensors eliminate the need for separate devices, saving installation time and cost.
