Mecanismo de paragem de emergência Hager WNA033, cabeça de cogumelo vermelha, fundo amarelo, 1 NC, 250 V AC, 10 A, terminais de parafuso, montagem embutida

Rated for 250 V AC and 10 A, this emergency stop button insert provides a robust latching stop function with a red mushroom head on a yellow background for high visibility.

Overview

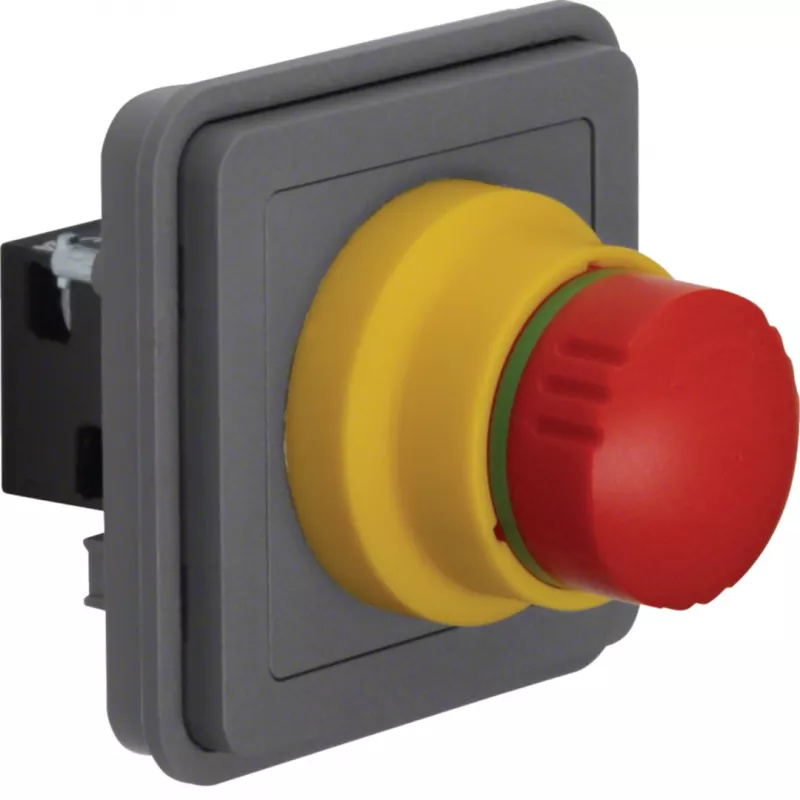

The Hager WNA033 is an emergency stop button insert designed for flush mounting. It features a latching mushroom head actuator in red with a yellow background, ensuring quick identification in critical situations. The insert includes one normally closed (NC) contact, suitable for safety circuits requiring a break in the control line when activated.

What stands out

• High visibility red mushroom head on yellow background
• Latching operation: push to stop, twist to release
• Rated for 250 V AC, 10 A, suitable for industrial control circuits
• Compact 1 module width for easy integration into standard enclosures
• Screw terminals for secure and reliable wiring

Technical details

• Product type: Emergency Stop Button Insert
• Actuator type: Mushroom Head
• Actuator colour: Red
• Background colour: Yellow
• Function: Latching (Push-to-stop, Twist-to-release)
• Contact configuration: 1 NC
• Number of contacts: 1
• Rated operational voltage (Ue): 250 V AC
• Rated operational current (Ie): 10 A
• Connection type: Screw Terminals
• Mounting type: Flush Mount
• Material: Plastic
• Module width: 1 TE

Our verdict

A reliable and clearly visible emergency stop solution for control panels, meeting essential safety requirements with straightforward installation.
