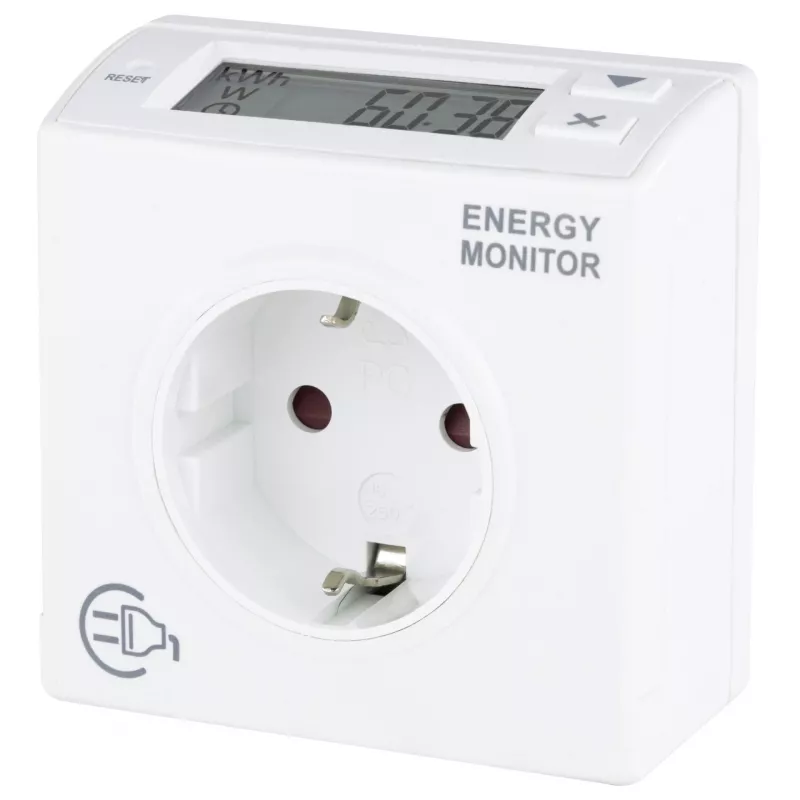

Medidor de consumo de energia REV branco (0025810012)

The REV Energy Cost Meter is a versatile power monitor designed to help you track and manage your electricity consumption. With its clear LCD display, you can easily measure power, energy, voltage, current, frequency, power factor, and even calculate costs. Ideal for home or office use, this meter helps you identify energy-hungry devices and reduce your electricity bills.

Advantages

Accurate measurement of power and energy consumption; cost calculation with two adjustable tariffs; overload protection for safety; data retention via built-in battery; easy-to-read LCD display.

Suitable for

• Monitoring household appliances
• Office equipment energy tracking
• Identifying power consumption patterns
• Reducing electricity costs

Key specifications

• Product Type: Energy Meter / Power Monitor
• Display: LCD
• Max Load Current: 16 A
• Max Load Power: 3680 W
• Operating Voltage: 230 V AC
• Frequency: 50 Hz
• Power Measurement Range: 1 W - 3680 W
• Current Measurement Range: 0.01 A - 16 A
• Voltage Measurement Range: 200 V - 276 V
• Energy Measurement Range: 0.00 kWh - 9999 kWh
• Accuracy (Power): ±2%
• Self Power Consumption: < 0.5 W
• Socket Type: Schuko (Type F)
• Plug Type: Schuko (Type F)
• Overload Protection: Yes
• Cost Calculation Function: Yes, with 2 adjustable tariffs
• Data Retention: Yes (integrated battery/capacitor)
• Color: White
• Operating Temperature: 0°C to 40°C

Recommendations

For optimal results, place the meter between the device and the wall outlet. Use the cost calculation feature with your local electricity tariff to monitor expenses in real time.
