PRODIG-TECH medidor de espessura de tinta GL-PRO-6-PHASE Fe-AL-Zn sonda no cabo

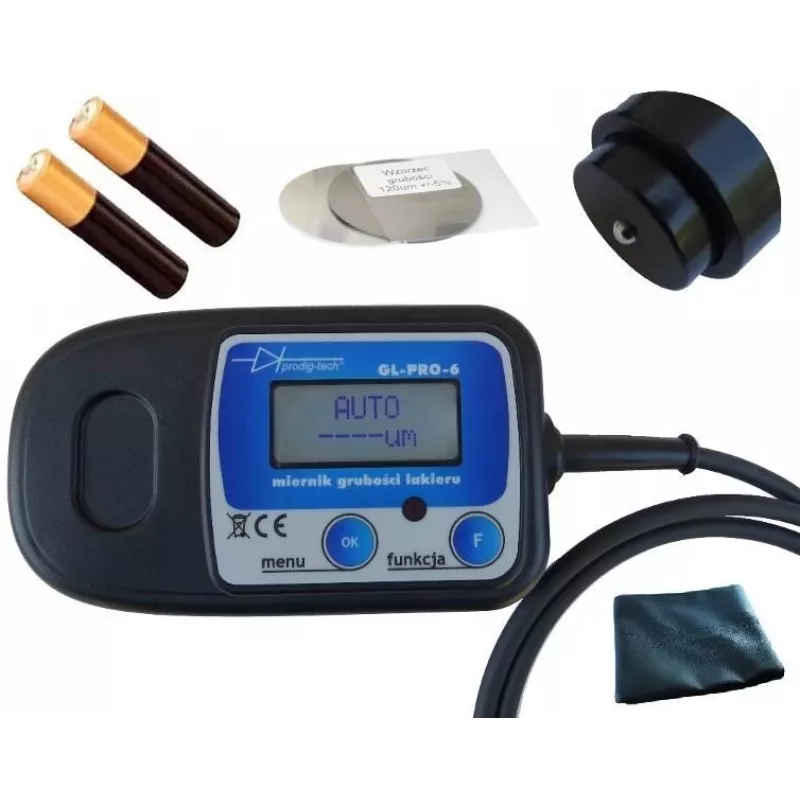

The PRODIG-TECH Paint Thickness Gauge GL-PRO-6-PHASE Fe-AL-Zn Probe on the Wire is designed for measuring paint thickness on automotive steel, galvanized steel, and aluminium panels. It automatically detects the substrate type and features a flexible probe on a cable with a spherical measuring tip.

Key features

• Probe on the wire, flexible, with spherical measuring tip
• Automatic substrate detection: steel (Fe), aluminium (Al), and zinc (Zn) on steel (Zn only for model GL-PRO-6-FAZ)
• Measurement range 0-2000μm
• Resolution: 1μm for Fe, 5μm for nFe
• Minimum measurement area: 15x15mm for nFe, 5x5mm for Fe
• 3 operating modes: continuous measurement, measurement stop (HOLD 1), measurement freeze (HOLD 2)
• Manual measurement mode selection: Fe or Al
• Memory for 960 measurements
• Measurement assistant® for automotive (LED)
• Calibration using plates and thickness standard
• Acoustic signal
• Power supply: two AAA (R3) alkaline batteries

Specifications

• Brand: Prodig-Tech
• MPN: GL-PRO-6-FAZ
• Model: GL-PRO-6-FAZ
• Measurement range: 0-2000μm
• Resolution: 1μm for Fe, 5μm for nFe
• Minimum measurement area: 15x15mm for nFe, 5x5mm for Fe
• Memory: 960 measurements
• Power supply: two AAA (R3) alkaline batteries
