Membrana de proteção Eaton M22-XWS para atuadores de 22,5 mm, transparente 231275

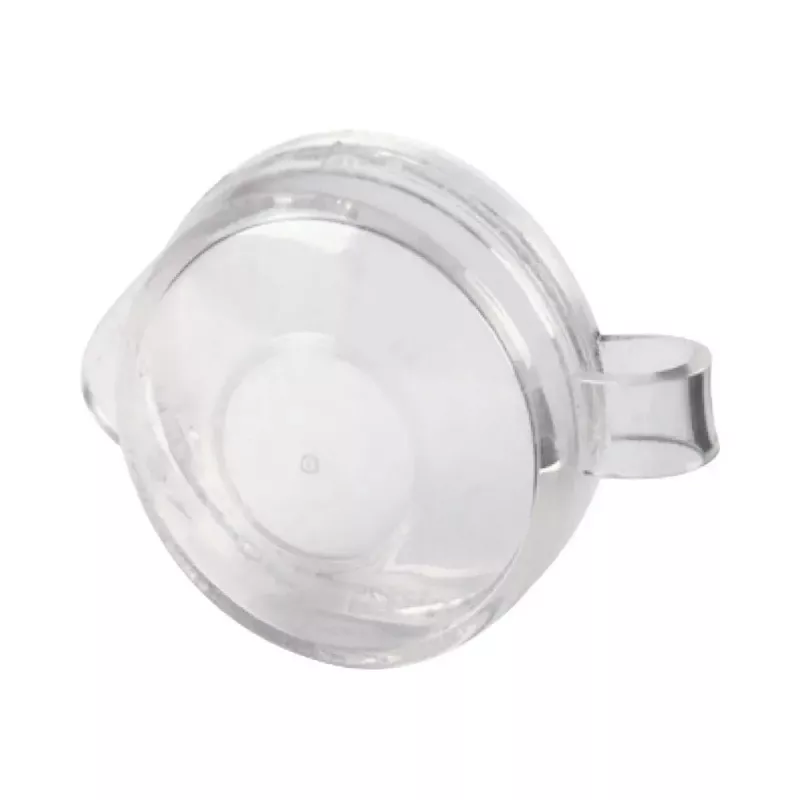

Protective membrane for Eaton M22 series pushbuttons, selector switches, and indicator lights. This transparent elastomer diaphragm snaps over the actuator to increase the degree of protection to IP67 and IP69K, sealing out dust, water, UV, and chemicals in harsh industrial environments.

Advantages

The M22-XWS membrane provides a reliable sealing solution without compromising actuator visibility or operation. Its flexible material allows full actuation while maintaining a tight seal. The transparent design ensures the status of illuminated actuators remains clearly visible. With an operating temperature range of -25°C to +70°C, it is suitable for a wide range of industrial applications.

Suitable for

• Eaton M22 series pushbuttons, selector switches, and indicator lights with 22.5 mm actuator diameter
• Applications requiring frequent washdowns or exposure to dust and moisture
• Food and beverage, pharmaceutical, and other hygiene-critical industries

Key specifications

• Product type: Protective membrane / diaphragm
• Series compatibility: Eaton M22
• Material: Elastomer (rubber/silicone)
• Colour: Transparent
• Mounting type: Snap-on over actuator
• Achieved IP rating (with M22 device): IP67, IP69K
• Operating temperature range: -25°C to +70°C
• Resistance: Dust, water, UV, chemical

Recommendations

For optimal sealing, ensure the actuator surface is clean before snapping the membrane into place. Replace membranes that show signs of wear or damage to maintain the specified protection rating.
