MENNEKES AMAXX Combinação de tomadas, IP44, 32A, 400V, 1x CEE 32A 5p, 2x Schuko 16A, interruptor diferencial 30mA, disjuntor 920080

This AMAXX socket combination box delivers 32 A at 400 V through a single CEE socket and adds two 16 A Schuko sockets, all protected by a 30 mA RCD and individual MCBs.

Overview

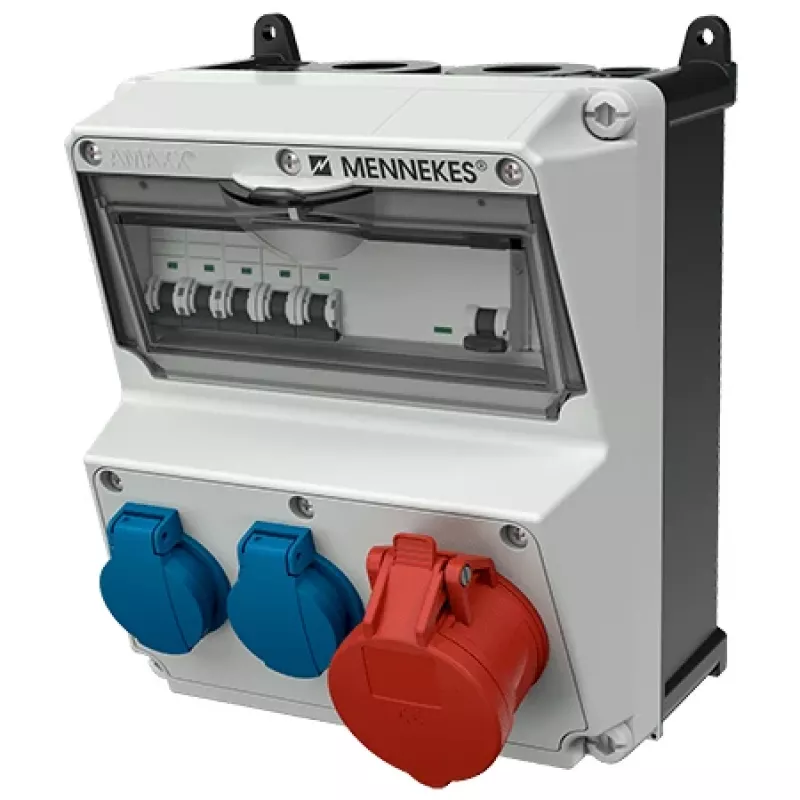

The MENNEKES AMAXX 920080 is a wall-mounted power distribution unit with an IP44 splash-proof rating. The polycarbonate housing in grey (RAL 7035) contains one CEE socket (32 A, 5-pole, 400 V) and two Schuko sockets (16 A, 2-pole+E, 230 V). Input is via a 5-pole terminal for conductors up to 10 mm², with two M25 cable entries on the top and bottom.

What stands out

• Residual current device: 40 A, 4-pole, 30 mA, Type A
• Circuit breakers: 1x C32 A 3-pole for CEE, 2x C16 A 1-pole for Schuko
• Rated for 50/60 Hz operation
• Compact wall-mount design for workshops and industrial environments

Technical details

• Series: AMAXX
• Product type: Socket combination box
• Ingress protection: IP44
• Rated input current: 32 A
• Rated input voltage: 400 V
• Frequency: 50/60 Hz
• CEE socket: 1x 32 A, 5-pole, 400 V
• Schuko sockets: 2x 16 A, 2-pole+E, 230 V
• RCD: 1x 40 A, 4-pole, 30 mA, Type A
• MCB for CEE: 1x C32 A, 3-pole
• MCB for Schuko: 2x C16 A, 1-pole
• Housing material: Polycarbonate
• Housing colour: Grey (RAL 7035)
• Mounting: Wall
• Input terminal: 5-pole, 10 mm²
• Cable entries: 2x M25 (top/bottom)

Our verdict

A robust and safe power distribution solution for demanding environments, combining high current capacity with reliable residual current protection.
